13.14 Sides

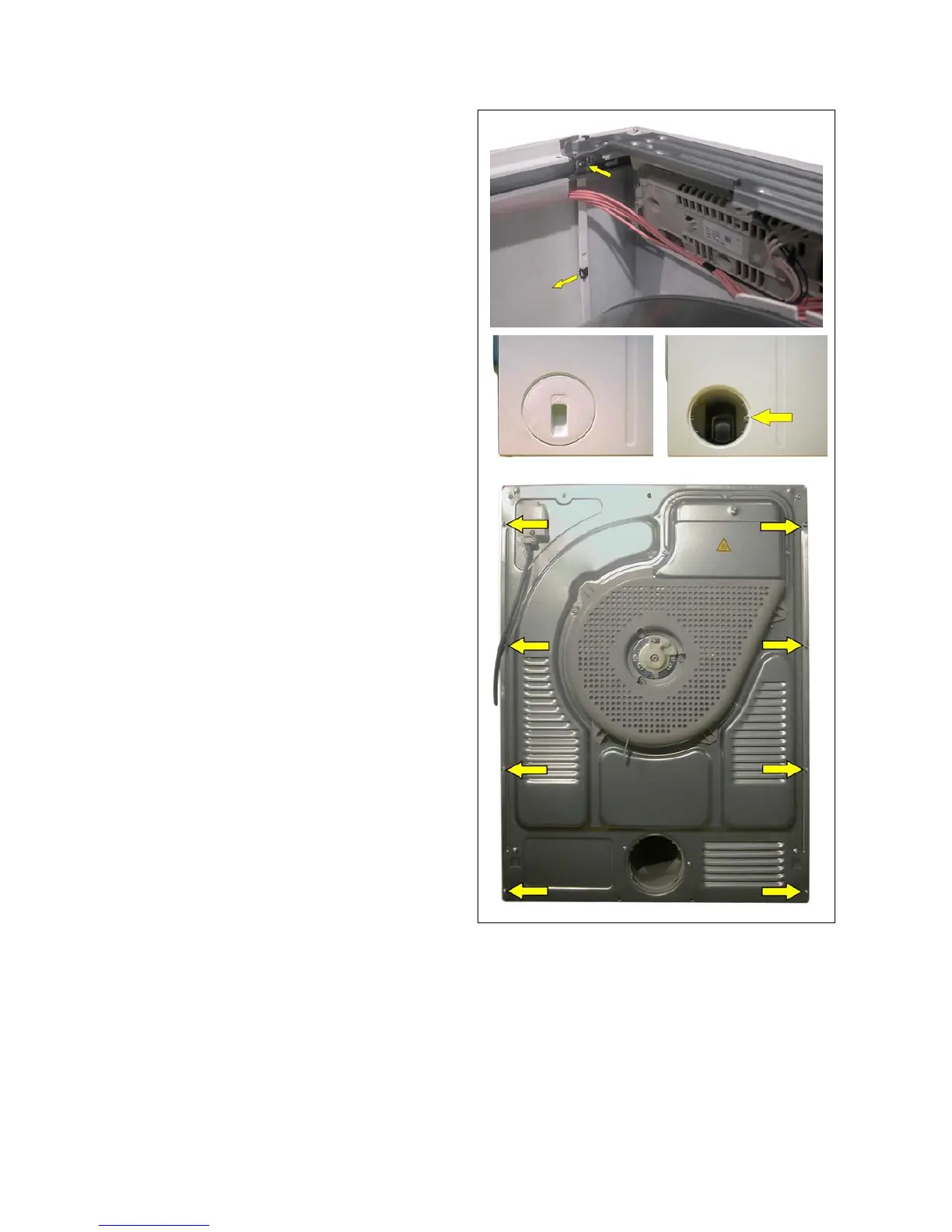

1. Remove the worktop (see paragraph).
2. Use a screwdriver to remove the fastening clips.
3. Remove the internal screws.
4. Remove the air outlet plugs and unfasten the
fixing screw.
5. Unfasten the rear fixing screws.
6. After removing all the screws, lift the panels
slightly upwards and remove them.
When reassembling, make sure that the holes drilled
in the base of the panels coincide with the
positioning points in the base.
The figures show a conductivity sensor tumble dryer with rear brush; in machines that are not fitted with a
rear brush the procedure is exactly the same.
