3 GENERAL CHARACTERISTICS
Dimensions of appliance
Height:
Width:
Depth:
85 cm
60 cm
58 cm
Supply voltage
Volts:
Hz:
220-240
50/60
No. buttons
Depends on model
No. LEDs
Depends on model
Type of display *
LCD
Buzzer
buzzer integrated in the circuit board
Serial port
DAAS-EAP communication protocol up to 230400 baud
Programme selector
15 / 25 positions With integrated ON/OFF switch
Drying system
damp condensation with heat exchanger
Humidity control *
conductivity sensor
Motor
capacitor-run asynchronous monophase motor
Heating unit power
220-240V 2200 W version 1400 W + 800 W
Temperature control
NTC probe
* Only models with conductivity meter.

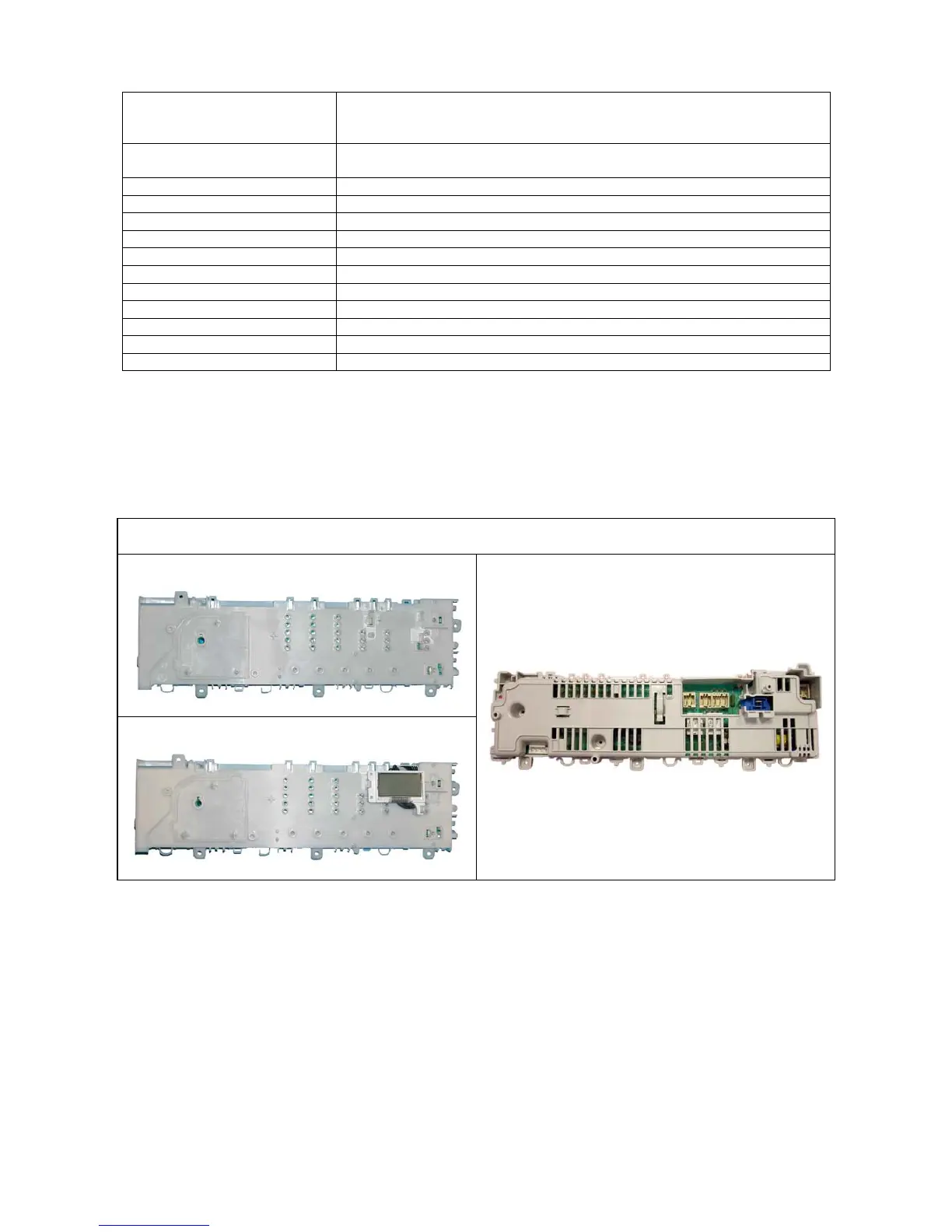

3.1 Circuit boards
The electronic control is made up of a main circuit board with integrated selector and on certain models LCD
display, which are supplied ready-assembled and tested by the manufacturer.
Main circuit board
TC5
TC3
