13 ACCESS TO COMPONENTS
Individual components must only be accessed after the power cable has been
disconnected from the socket.
13.1 Door

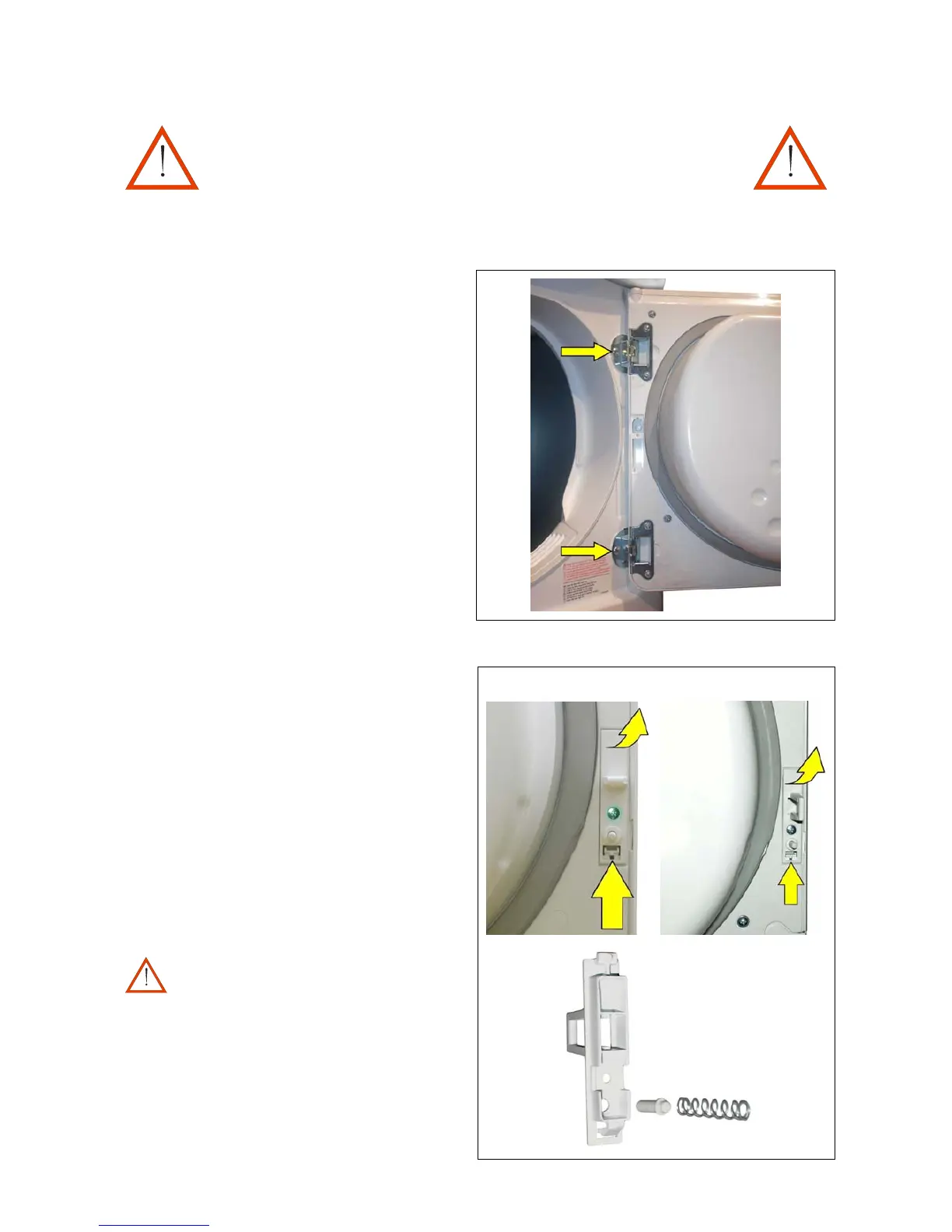

Unfasten the 2 screws fixing the door to the front.
13.2 Door fastening latch
There are two types of latches, depending on the
type of door lock fitted on the machine:
• latch for AEG door lock,
• latch for EMZ door lock with fitted microswitch.
In both models the reassembly procedure is as
follows:
1. unfasten the screw fixing the door lock;
2. use a screwdriver to lift up the fastening hook,
being careful not to damage it;
3. turn the whole block upwards and remove it.
When reassembling the door fastening
latch
make sure that the spring is correctly
positioned.
AEG latch EMZ latch
