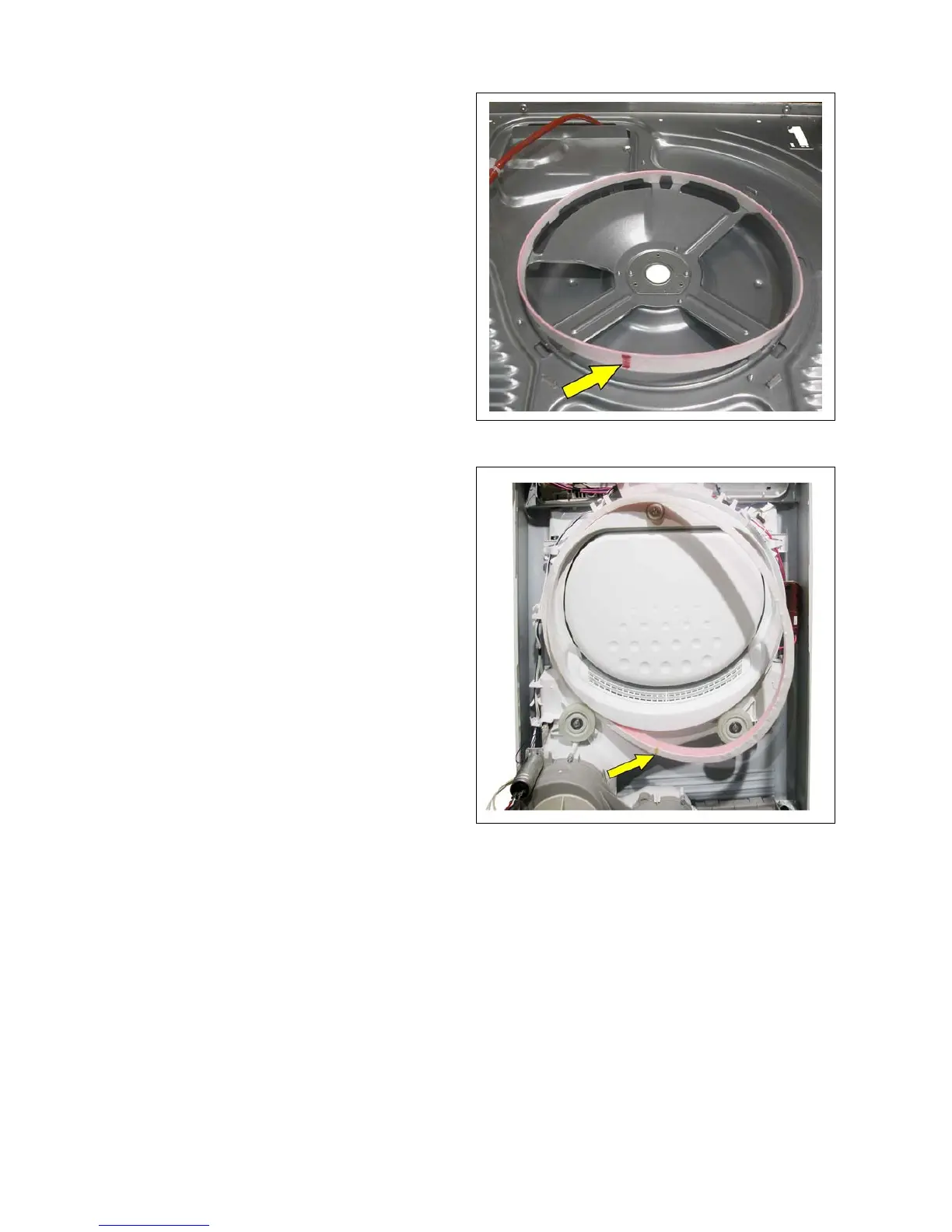

13.24 Rear air seal
1. Remove the worktop (see paragraph).
2. Remove the sides (see paragraph).
3. Remove the belt tensioning spring.
4. Remove the back panel (see paragraph).
5. Open the air seal fixing hooks slightly and take
the seal out.
When fitting the new seal, take care to ensure that
the seam is located in the lower part of the ring.
13.25 Front air seal
1. Remove the worktop (see paragraph).
2. Remove the back panel (see paragraph).
3. Remove the drum.
4. Take out the front air seal.
When fitting the new air seal, take care to ensure
that the seam is located in the lower part of the
conduit.
