ADL 2010 / 01 47/57 599 72 63-27

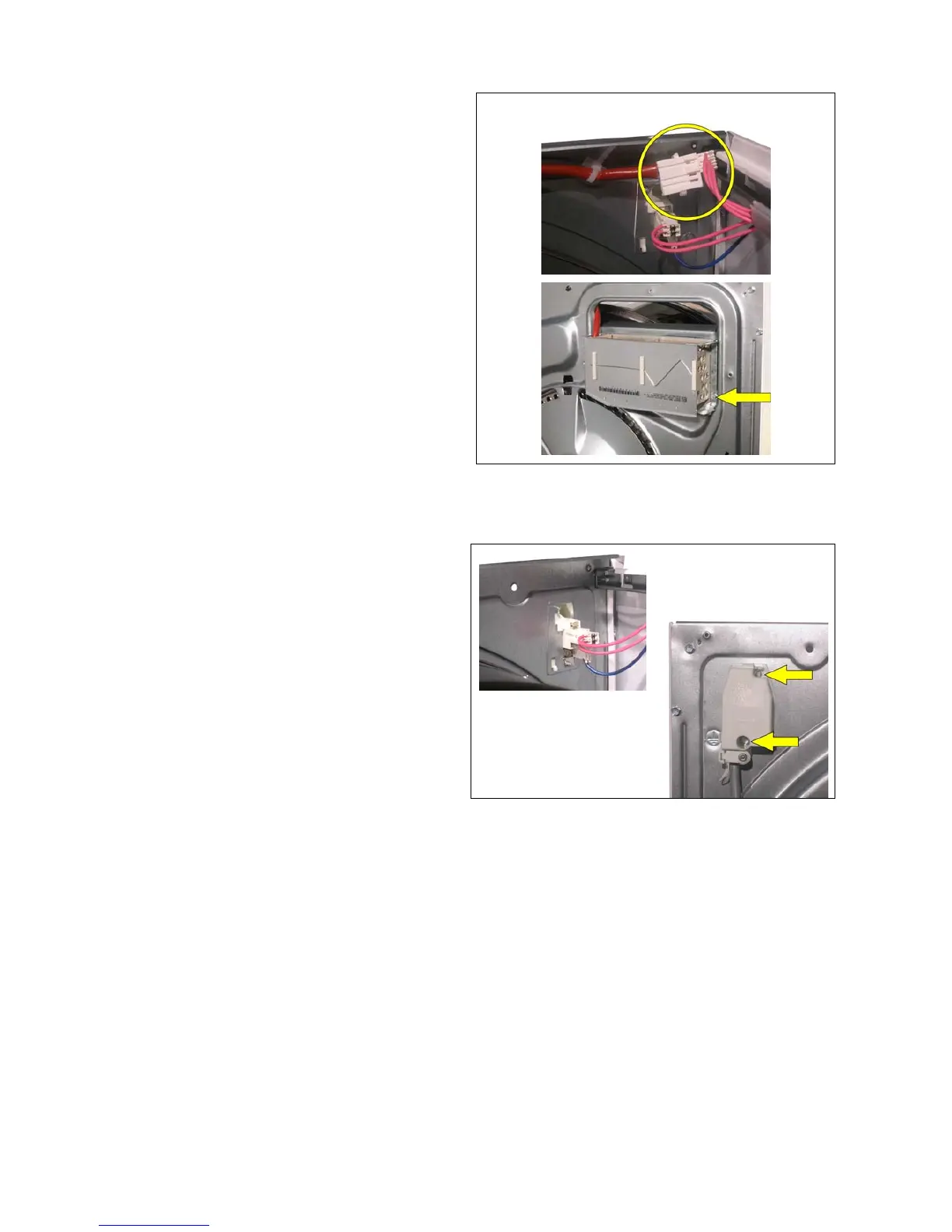

13.12 Heating unit
1. Remove the worktop (see paragraph).
2. Remove the plastic back panel guard and the
back panel (see paragraph).
3. Disconnect wires from cable clamps.
4. Disconnect the connector.
5. Unfasten the screw fixing the heating unit to the
back panel, and remove it.
13.13 Anti-disturbance filter
1. Remove the worktop (see paragraph).
2. Disconnect the anti-disturbance filter.
3. Remove the 2 fixing screws.
