Electrolux ENV06 - Motor;Fan Assembly and Belt Notes

ADL 2010 / 01 50/57 599 72 63-27

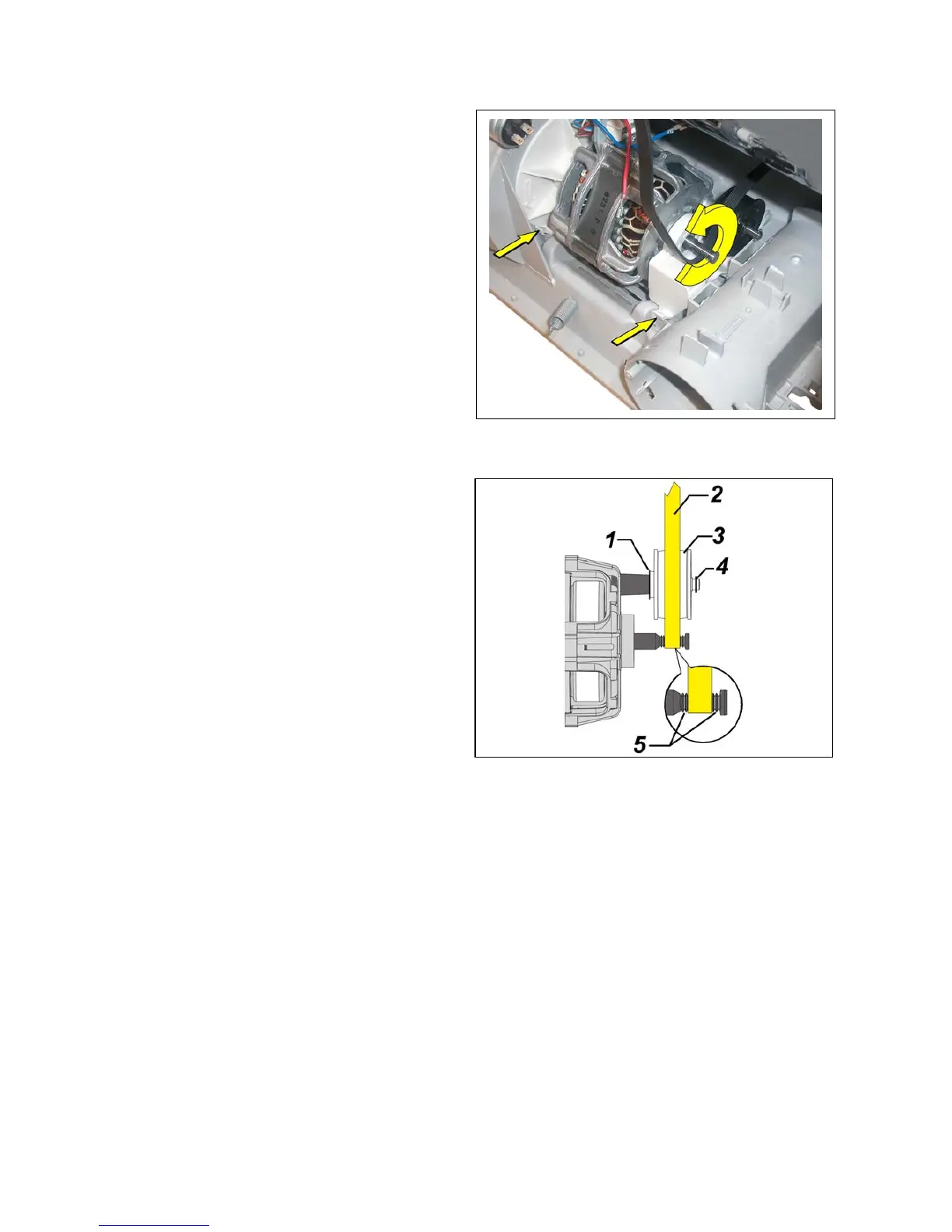

13.17 Motor/fan assembly
1. Remove the worktop (see paragraph).
2. Remove the right hand side panel (see
paragraph).
3. Unhook the suspension spring.
4. Remove the belt from the pulley.
5. Disconnect the wiring connector from the
junction box and from the capacitor.
6. Disconnect the teeth fastening the motor
supports to the base.
7. Turn them towards the inside of the machine
until they are completely out of the guides.
8. Lift up the motor and remove it.
13.17.1 Notes for reassembly of the belt tensioning roller / belt.
1. Spacer.
2. Belt tensioning roller with integrated spacer.
3. Snap ring.
4. Belt.
5. Leave two grooves free on both sides of the
pulley.
