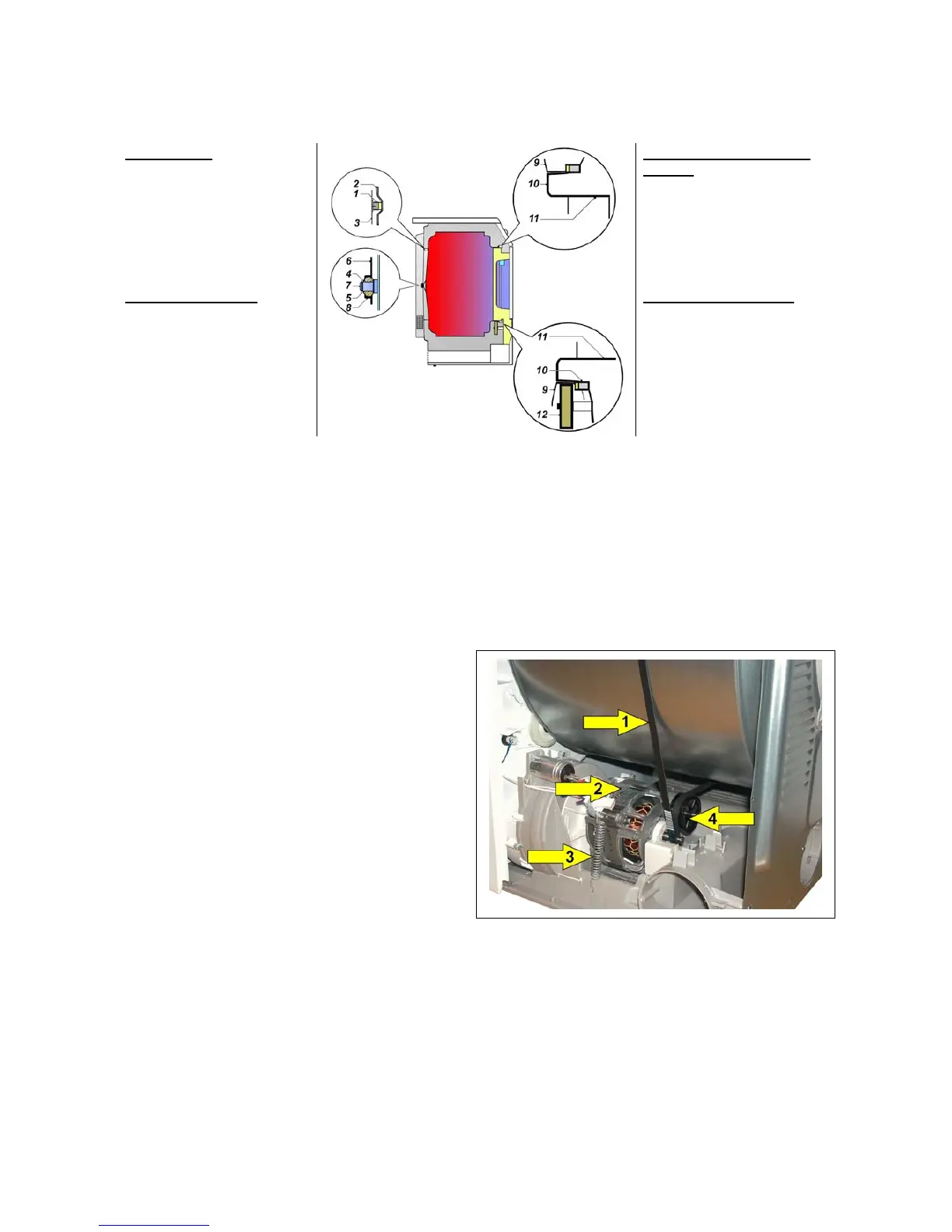

6.4 Air seals and drum pin support
Rear air seal
1. Rear gasket (fixed to the
back panel)
2. Drum
3. Back panel
Rear drum support
4. Antifriction washer
5. Fixing ring (Benzing)
6. Back panel
7. Drum pin
8. Support with bushing
(fixed to the back panel)
Front drum support and
air seal
9. Drum
10. Felt washer with tubular
support
11. Conduit
Bottom drum support
9. Drum
10. Felt washer with tubular
support
11. Conduit
12. Support roller for drum
movement
6.5 DRUM ROTATION MECHANISM
1. Belt
2. Motor
3. Traction spriing
4. Belt tensioner
The drum is turned by means of a belt (1) which is driven by a motor pulley (2) fixed to the base and kept
under tension by the spring (3).
There is a belt tensioner (4) on the motor casing, and thanks to the tension in the spring (3) this increases
the angle at which the belt winds onto the drum.
Two-way rotation of the drum is determined by the circuit board, which reverses the direction of the motor,
resulting in brief periods in which the drum rotates in the opposite direction, allowing the washing to unwind.
During these times the heater unit is cut out due to the reduced level of ventilation inside the appliance.
