Electrolux ENV06 - Belt; Drum; Conduit Rollers

ADL 2010 / 01 53/57 599 72 63-27
13.21 Belt
1. Remove the worktop (see paragraph).
2. Remove the sides (see paragraph).
3. Remove the belt tensioning spring.
4. Remove the back panel (see paragraph).
5. Take out the belt.
13.22 Drum
1. Remove the worktop (see paragraph).
2. Remove the sides (see paragraph).
3. Remove the belt tensioning spring.
4. Remove the back panel (see paragraph).
5. Take out the drum
13.23 Conduit rollers
1. Remove the worktop (see paragraph).
2. Remove the back panel (see paragraph).
3. Take out the drum (see paragraph).

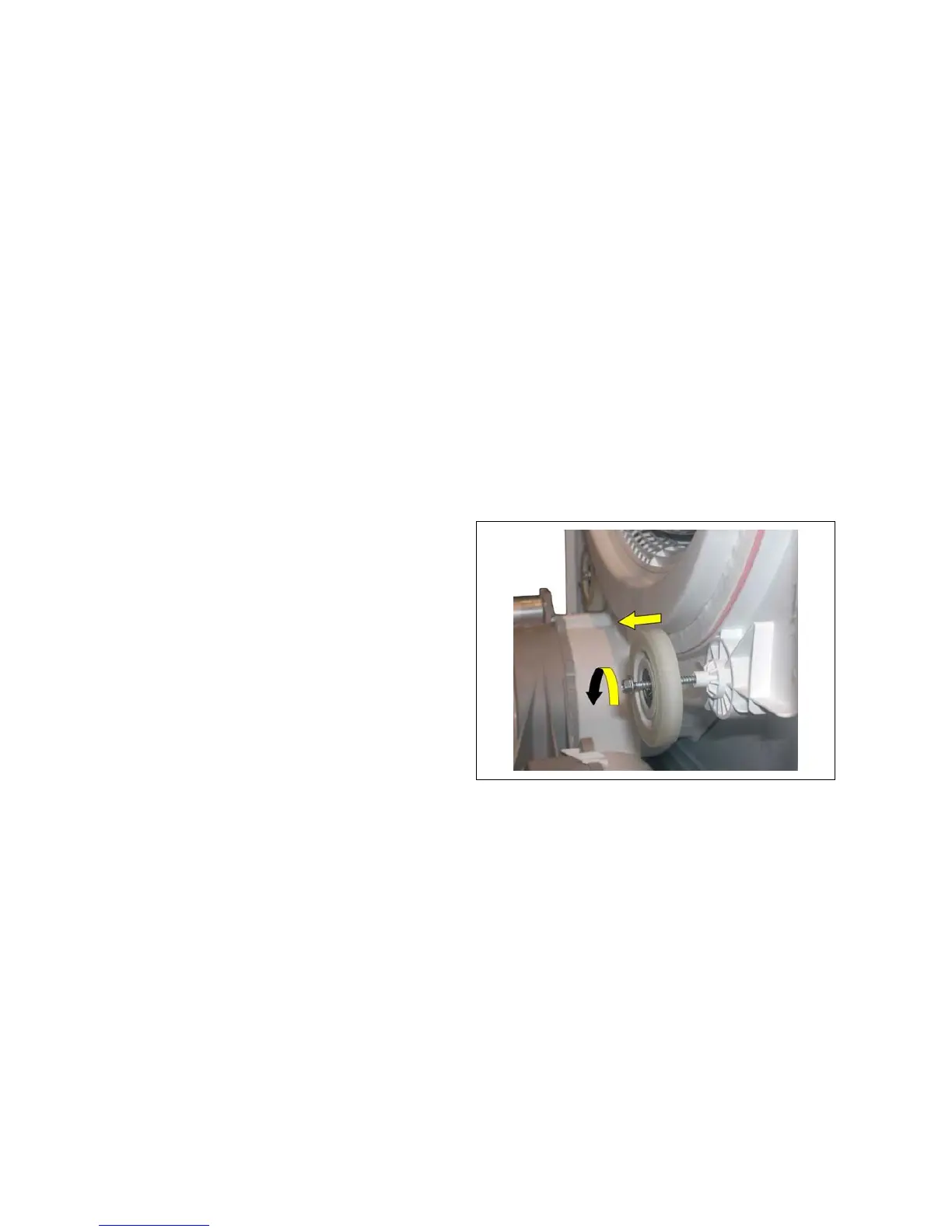

4. Unfasten the screws fixing the rollers to the air
conduit.
Never take out the rollers without removing the
drum!
This operation may severely damage the roller fixing
bush mounted in the air conduit.
