7.8 Door lock without door microswitch incorporated
Dependent on the version, the door lock may be mechanical with manual door opening or electronic with the
door opening when a button is pressed. In the second case the door is opened by an electromagnetic coil
which releases the fastening latch by means of a lever.
The door lock is fitted with a child safety device which, in case of need, allows the door to be opened by
pushing from the inside.

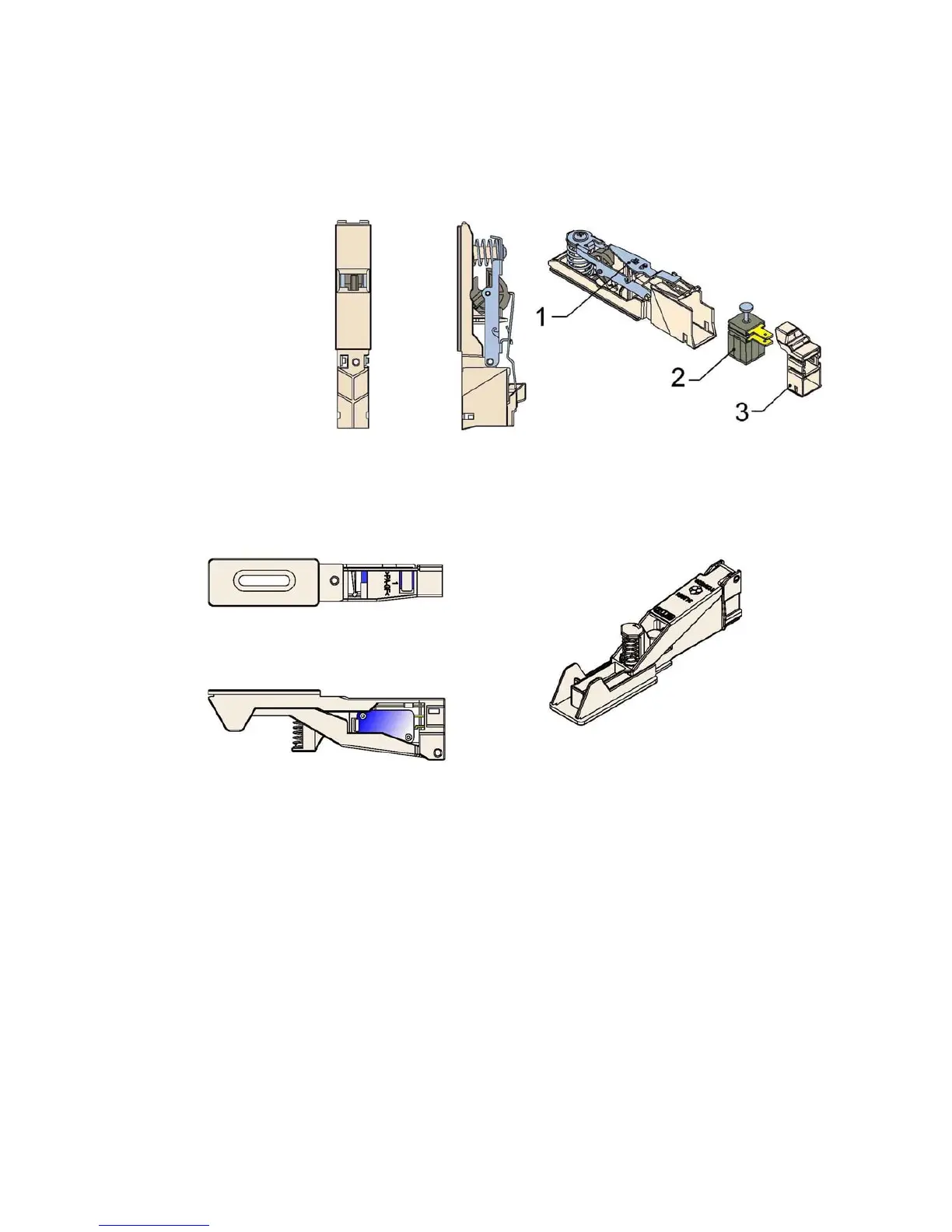

1. Latch lever
2. Coil (present on models with
automatic opening)
3. Coil guard
7.9 Door microswitch
The door switch powers the electrical components after the door has been closed and after the selector has
been turned (ON/OFF closed). The switch is located above the door opening and it is closed, when the door
itself is closed, by means of a pin located on the door itself.
