Electrolux ENV06 - Programme Selector and Buttons

ADL 2010 / 01 8/57 599 72 63-27

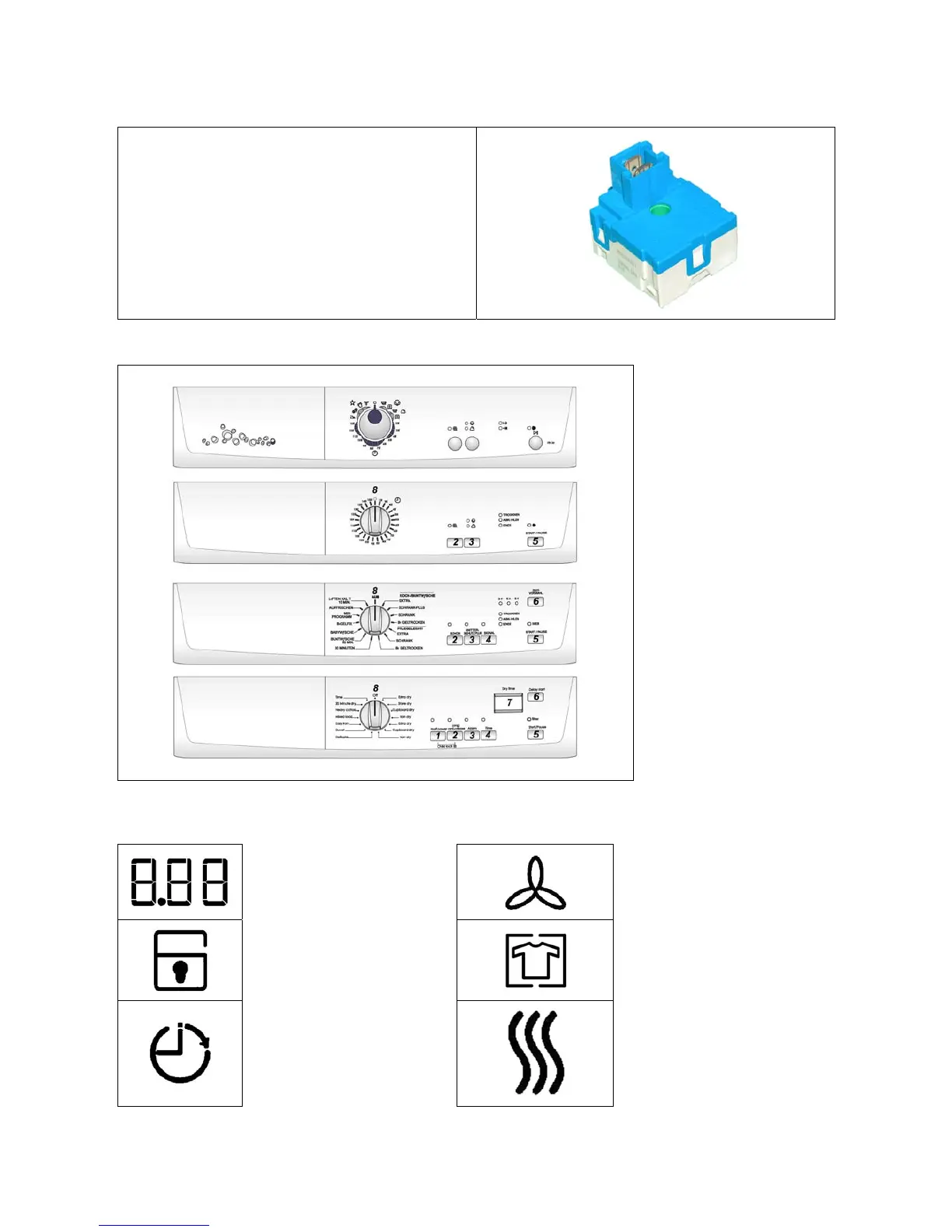

4.1 Programme selector
The 15 / 21 / 25 position selector dial (with integrated
ON/OFF switch) forms an integral part of the board.
The symbols represent the various drying options for
the various fabric types.
COTTON, SYNTHETIC, SILK, WOOL and TIMER.
A
ll positions can be configured, according to the mod
e
4.2 Buttons
1. Configurable button
2. Configurable button
3. Configurable button
4. Configurable button
5. Start / Pause button
6. Delay start button
7. LCD
8. Programme selector
4.3 Symbols on control panels with LCD
Time remaining
Error message
Cooling phase
Child lock Anti-crease cycle
Delay start set
Drying phase
