ADL 2010 / 01 44/57 599 72 63-27

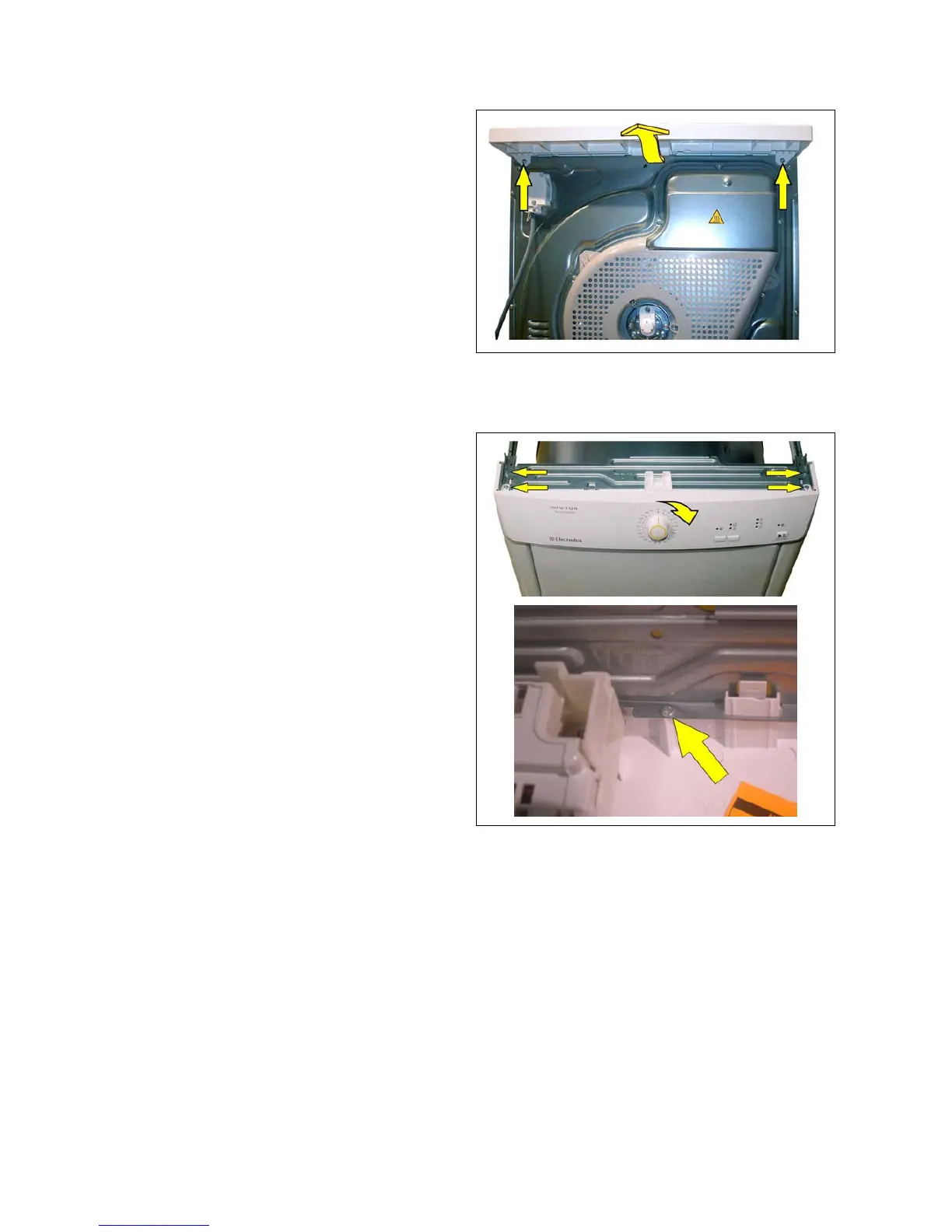

13.8 Worktop
1. Unfasten the two screws fixing the worktop.
2. Pull it in the direction indicated by the arrow and
lift it up.
13.9 Control panel
1. Unfasten the 4 screws fixing the control panel
and crossbar to the frame.
2. Lift the whole unit slightly and turn it forwards.
3. Unfasten the screw fixing the crossbar to the
control panel, and remove the crossbar.
4. Disconnect all the wires, taking care to note
down their positions for when you reconnect
them.
