ADL 2010 / 01 34/57 599 72 63-27

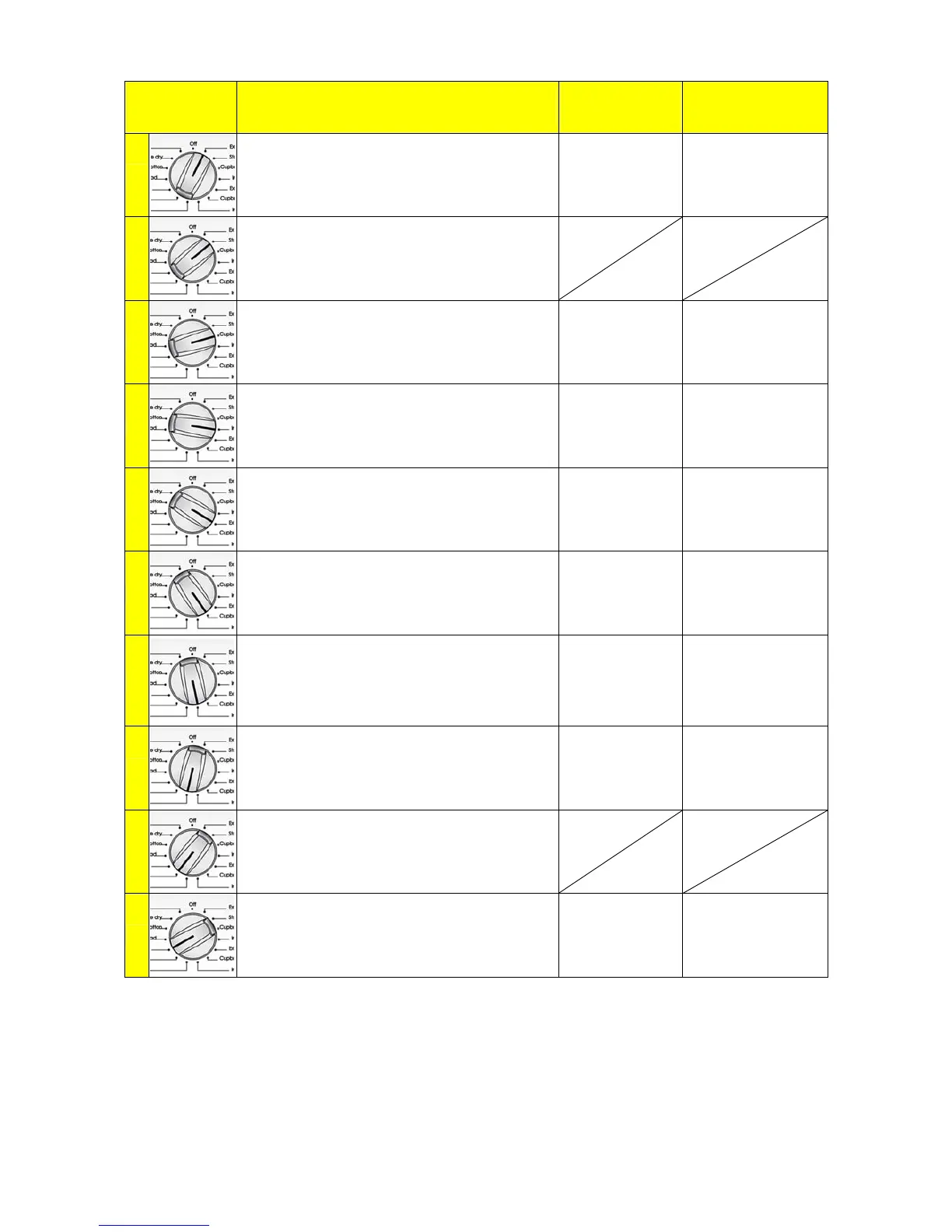

Selector
position
Components activated
Working
conditions
Function tested
1
¾ All LEDs and Digits will turn on in sequence.
¾ When you press a button, the corresponding LED
lights up and the Buzzer sounds.
Always active User interface functions
2
POSITION NOT USED
3
¾ Motor TRIAC and relay.
Door closed
Max. time 10 min.
Drum anticlockwise
rotation test
4
¾ Motor TRIAC powered step-by-step.
Door closed
Max. time 10 min.
Tests clockwise rotation
of the drum (low speed
for visual control of
drum half-casing
assembly).
5
¾ One branch of heating element only.
¾ Motor TRIAC for fan.
Door closed
Max. time 10 min.
Heating unit
(half power)
6
¾ Both heating elements in the heater unit.
¾ Motor TRIAC for fan.
Door closed
Max. time 10 min.
Heating unit
(full power)
7
¾ Conductivity sensor with drum in short circuit. The
test lasts 4 sec. 1 sec. to make the short circuit,
during which time the phase/warning LEDs flash: if
at the end the result is OK the LEDs will go out, if
something is wrong they will flash and the alarm
E32 will be displayed.
Door closed
Short-circuit
between the two
drum casings
Checks the conductivity
sensor during a short
circuit.
8
¾ Conductivity sensor. The test lasts 4 sec., during
which time the phase/warning LEDs flash: if at the
end the result is OK the LEDs will go out, if
something is wrong they will flash continuously.
Door closed
Checks the conductivity
sensor with the circuit
open.
9
POSITION NOT USED
10
¾ Read/delete the last alarm. ---. ---
