Elma Elmasteam 8 basic - Device Components (Front and Rear)

Product Description
© Elma Schmidbauer GmbH BA_Elmasteam_8_Vers.07.2016
19
3.6 Product Description
3.6.1 Elements on the Device Front Side

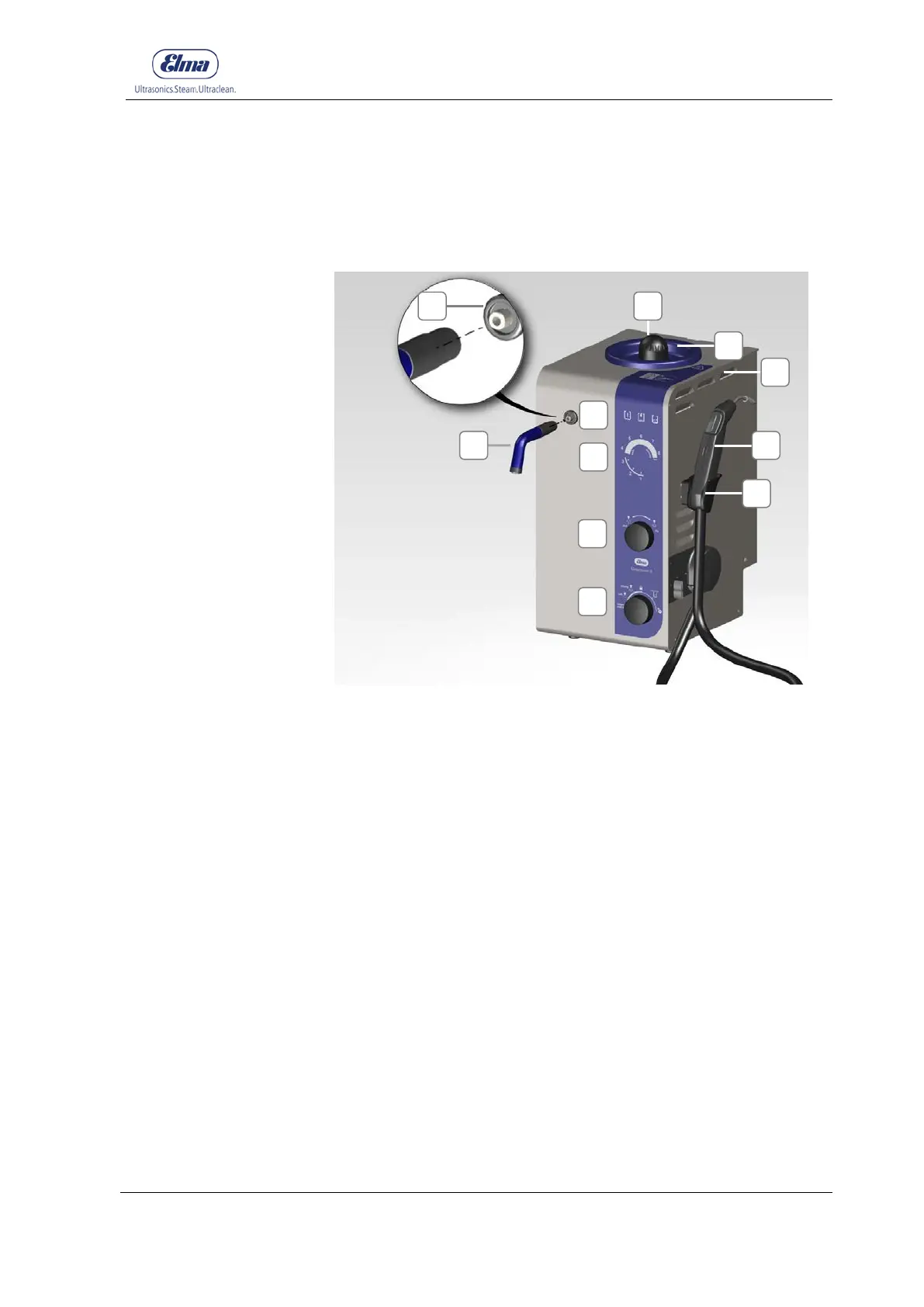

Figure 3.6.1: View of the device, front side
Connection For attaching the fixed nozzle (optional)
Fixed Nozzle (optional)
Operating Displays Warning/Filling Level/Service
Gauge Indicator 1-8 bar /Service Mode (Level indicator 1-8)
Rotary knob wet/dry (Setting the mixing ratio).
Refer to Chapter 6.3 for a description
Rotary knob for programme selection: Turn the rotary knob to
select the function and press the rotary knob to confirm the
selection. Refer to Chapter 6.4 for a description
Bracket For handpiece (optional)
Handpiece (optional)
Ventilation Openings (lateral on the housing)
Drip Tray (Manual filling) for overflowing water
Pressure Vessel Screw Cap: Filling opening for manual filling.
Screw to open in an anti-clockwise direction.
A
B
C
D
E
F
G
H
I
J
K
A
G
C
D
E
F
K
B
I
J
H
