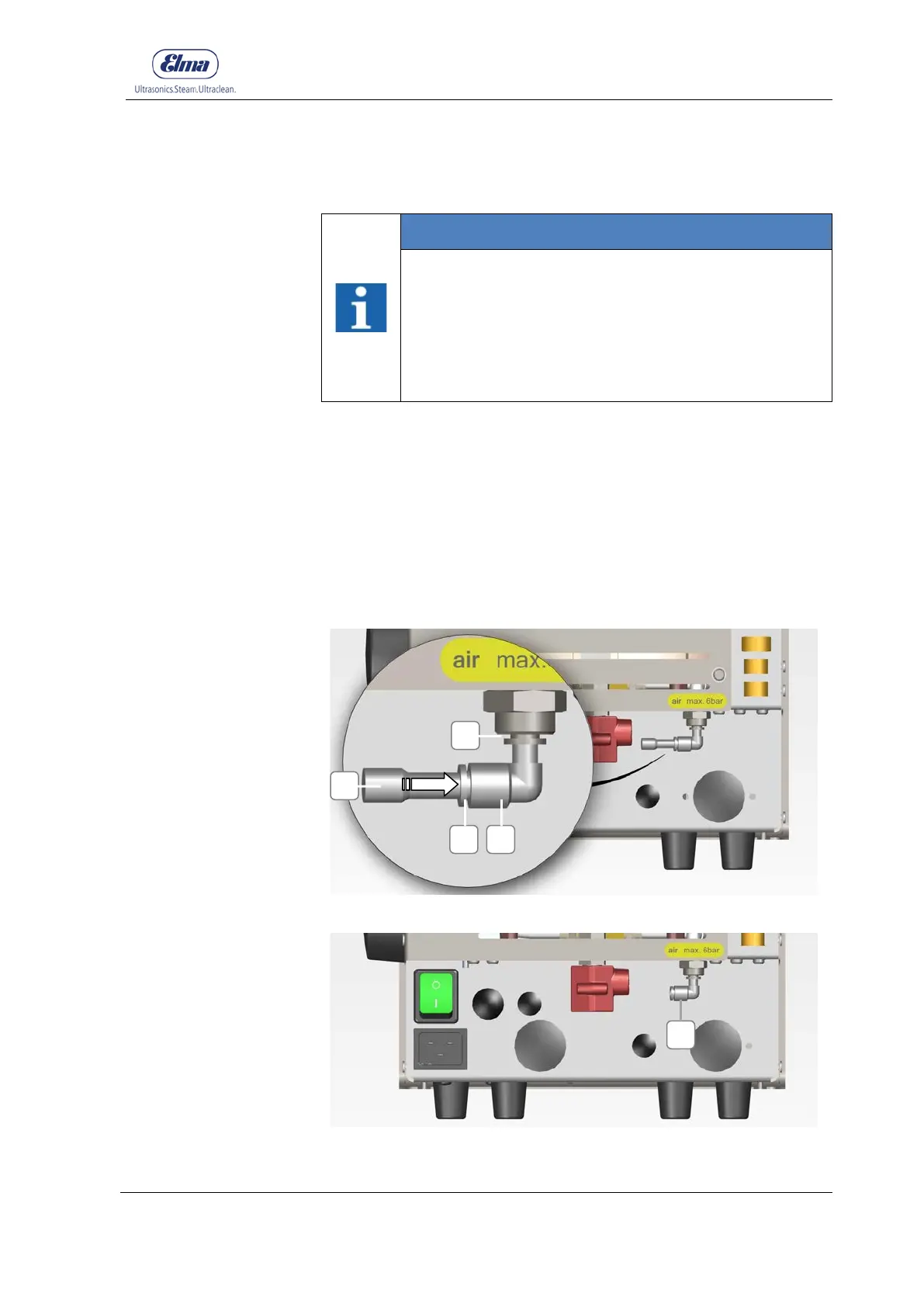

4.3 Assembling the Compressed Air (option)
INFORMATION
Only assemble the compressed air when the
device is switched off!
• Connect the device to a compressed air supply
with a maximum pressure of 6 bar!
• The compressed air must be free from dirt particles
(Chapter 2.3)
• Ensure that the device is switched off.
1. Remove the blind plug (4.3.1-A). For this purpose, press the
locking ring (4.3.1-B) in the arrow direction while pulling the
plug (4.3.1-A) in the reverse direction.
2. Push the compressed air hose (Ø6 mm) in direction of the
arrow until it stops in the angled connection screw (4.3.2-C).
3. Option: Insert the angled connection screw (4.3.1-C) to
connect the compressed air hose directly into the connection.
(4.3.1-D).
Figure 4.3.1: Blind plug for compressed air connection (A)
Figure 4.3.2: Connection for compressed air (without blind plug)
Assembling the
Compressed Air
A
B
C
C
D
