4.5 Assembling the Water Connection to the Canister
(Option device with pump)
INFORMATION
Only assemble the water connection with switched
off and depressurised devices!
• Utilise the supplied accessories. (Hose, ventilation
hose, cable for filling level monitoring, canister)
• Ensure that the device is switched off and
depressurised.
• The connections (hose, ventilation hose and cable
for filling level monitoring) for the canister are
prepared and connected to the canister. Connect
these to the device!
1. Screw on the screwed thread (Figure 4.4.1-A) of the water
hose onto the water connection of the device (Figure 4.5.2-F).
Inspect whether the seal is positioned correctly in the screwed
thread (Figure 4.5.1-A).
2. Connect the cable connector (Figure 4.5.1-B) for the fill level
monitoring to the connection (Figure 4.5.2-H) and turn the front
cap (Figure 4.5.3-I) until it locks. Observe the plug direction
(Fig 4.5.4-J).
3. Insert the ventilation hose (Figure 4.5.1-C) into the connector
(Figure 4.5.2-G).

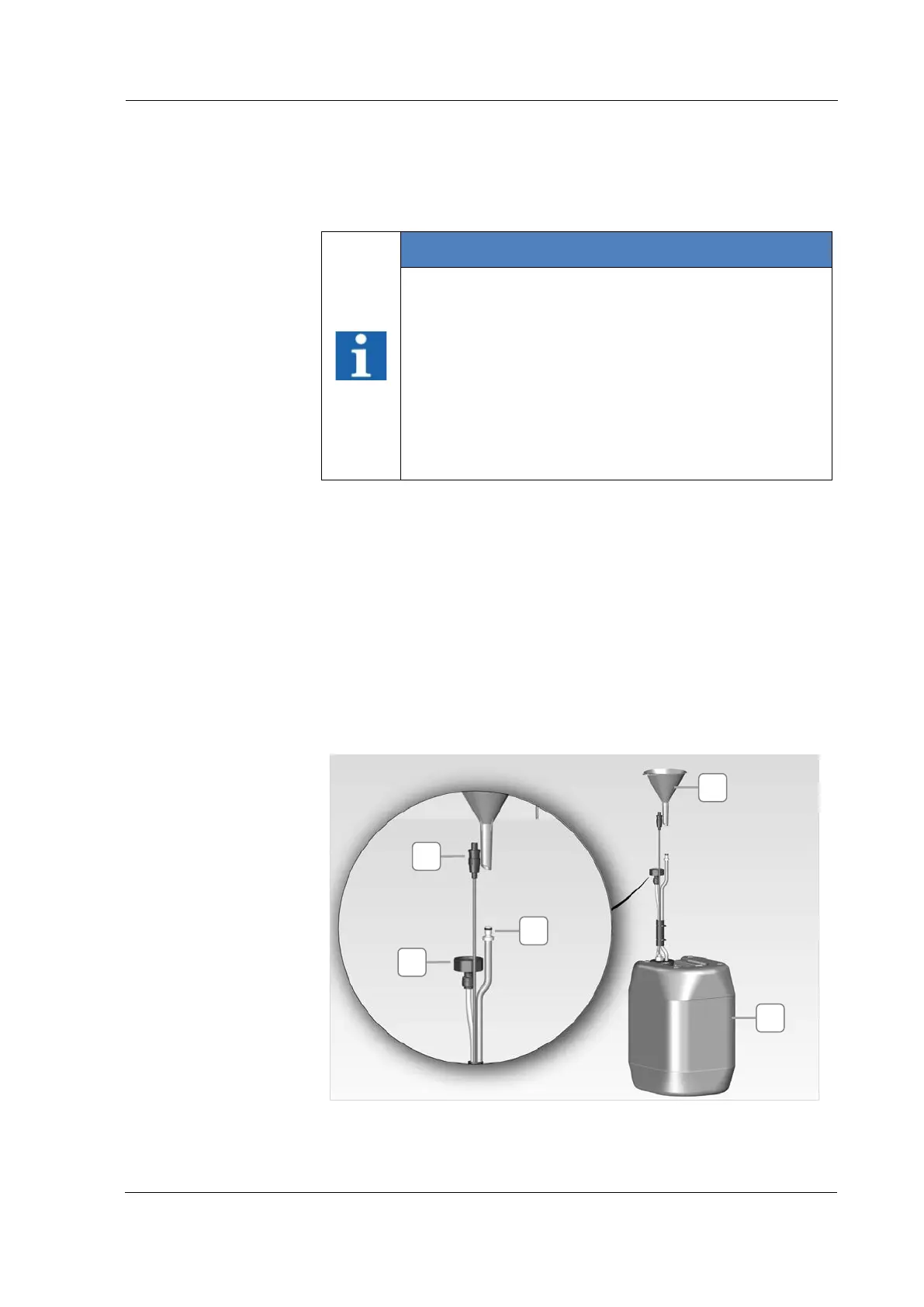

Figure 4.5.1: Canister with accessories
Assembling the
Water Supply
Canister
D
E
B
A
C
