Commissioning
© Elma Schmidbauer GmbH BA_Elmasteam_8_Vers.07.2016
37

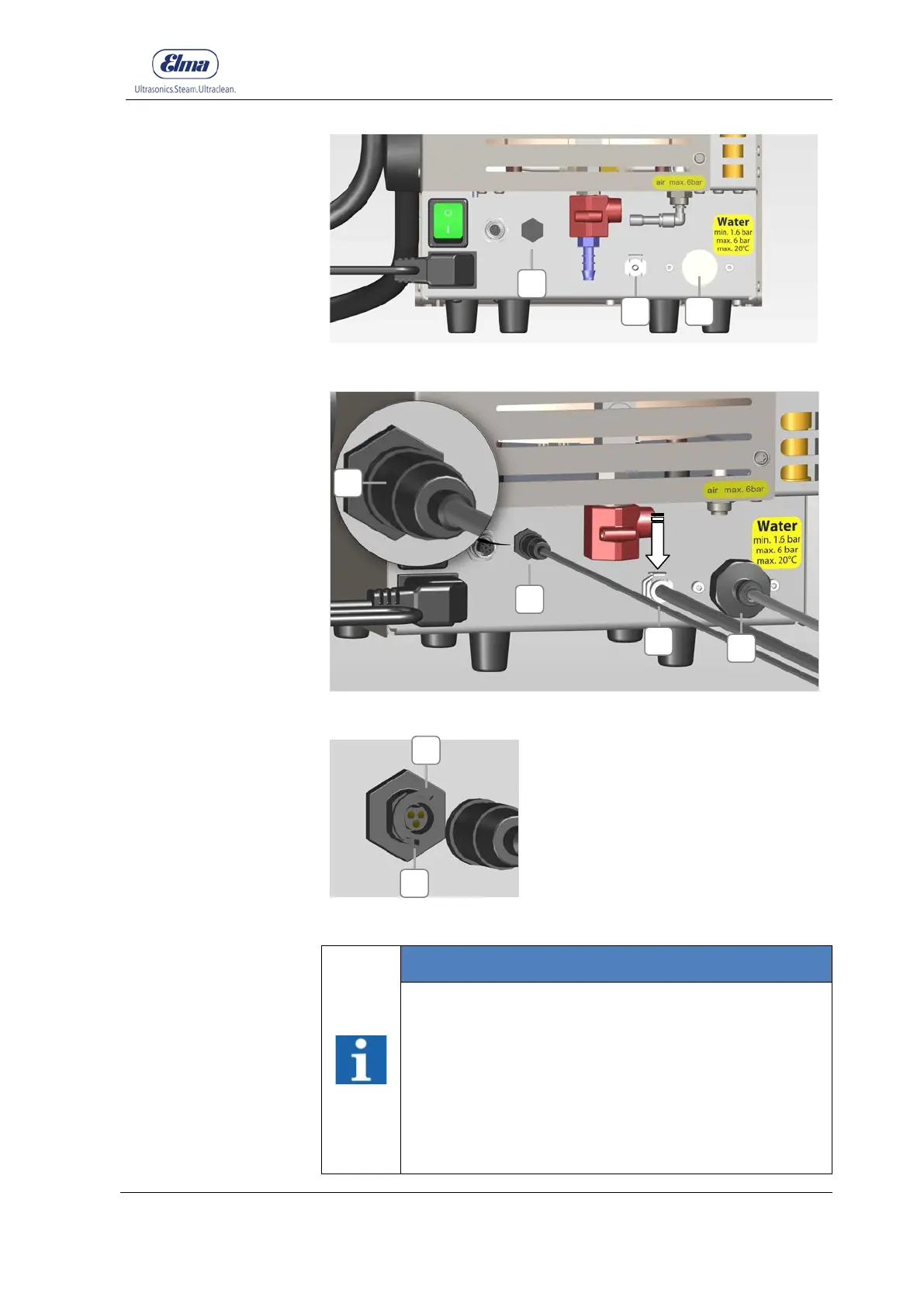

Figure 4.5.2: Connections for the canister (rear side of the device)
Figure 4.5.3: Connections for the canister connected
Figure 4.5.4: Plug alignment (J)
INFORMATION
Inspect the secure fixing of the water connection
for the canister!
• Maintain a proper and secure attachment of the
connections.
• Inspect the connections (Figure 4.4.3-E + F) for
leak tightness and function.
• Ensure when connecting the ventilation hose that
the locking lever (Fig 4.5.3-G) points downwards in
the direction of the arrow!
After the
assembly
F
H
G
H
G
F
I
J
J
