Elma Elmasteam 8 basic - Assembling the Fixed-Water Connection (Option device with pump)

Commissioning
34
BA_Elmasteam_8_Vers.07.2016 © Elma Schmidbauer GmbH
4.4 Assembling the Fixed-Water Connection
(Option device with pump)
INFORMATION
Only assemble the fixed-water connection with
switched off and depressurised devices!
• The minimum water pressure of 1.6 bar must be
retained. The maximum water pressure of 6 bar
must not be exceeded. Components within the
device may be damaged.
• Utilise the supplied water hose. If necessary, an
extension hose (2 m) can be ordered as an
accessory.
• Ensure that the device is switched off and
depressurised.
1. Attach the flat seals (A) from the scope of delivery in the
screwed threads (B + C). (Figure 4.4. 1)
2. Screw on the screwed thread (Figure 4.4. 1-B) of the water
hose onto the water connection of the device. (Figure 4.4.1.2-
D)
3. Screw on the screwed thread (Figure 4.4. 1-C) of the water
hose onto the connection for the water pipe. (Figure 4.4. 3-E)

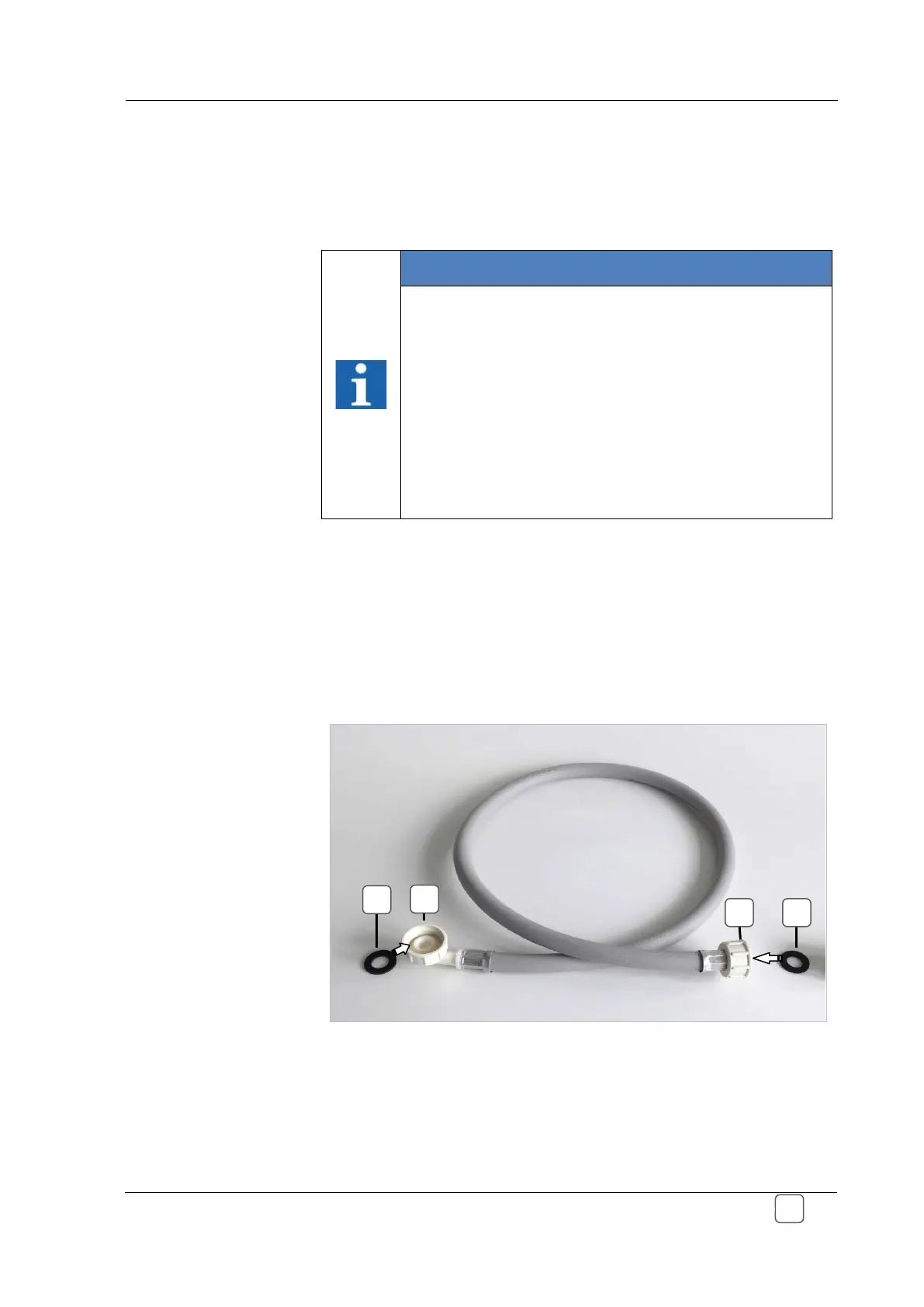

Figure 4.4.1: Water hose with flat seals (scope of delivery)
Assembling the
fixed-water
connection
D
A
B
C A
