3.6.3 Operating Displays
INFORMATION
Always observe the operating displays during operation!
• Warning (A) signals warnings
(illuminates/flashes red)
• Filling-level (B) signals the filling-level status
(illuminates/flashes blue)
• Service/Descaling (C) signals a descaling for the
device (illuminates/flashes orange)
• Gauge (D) signals the current pressure value
(illuminates green), adjusted operating pressure
(flashes green) until the pressure is achieved.
• Step Display (D) for programme-controlled
descaling programme.

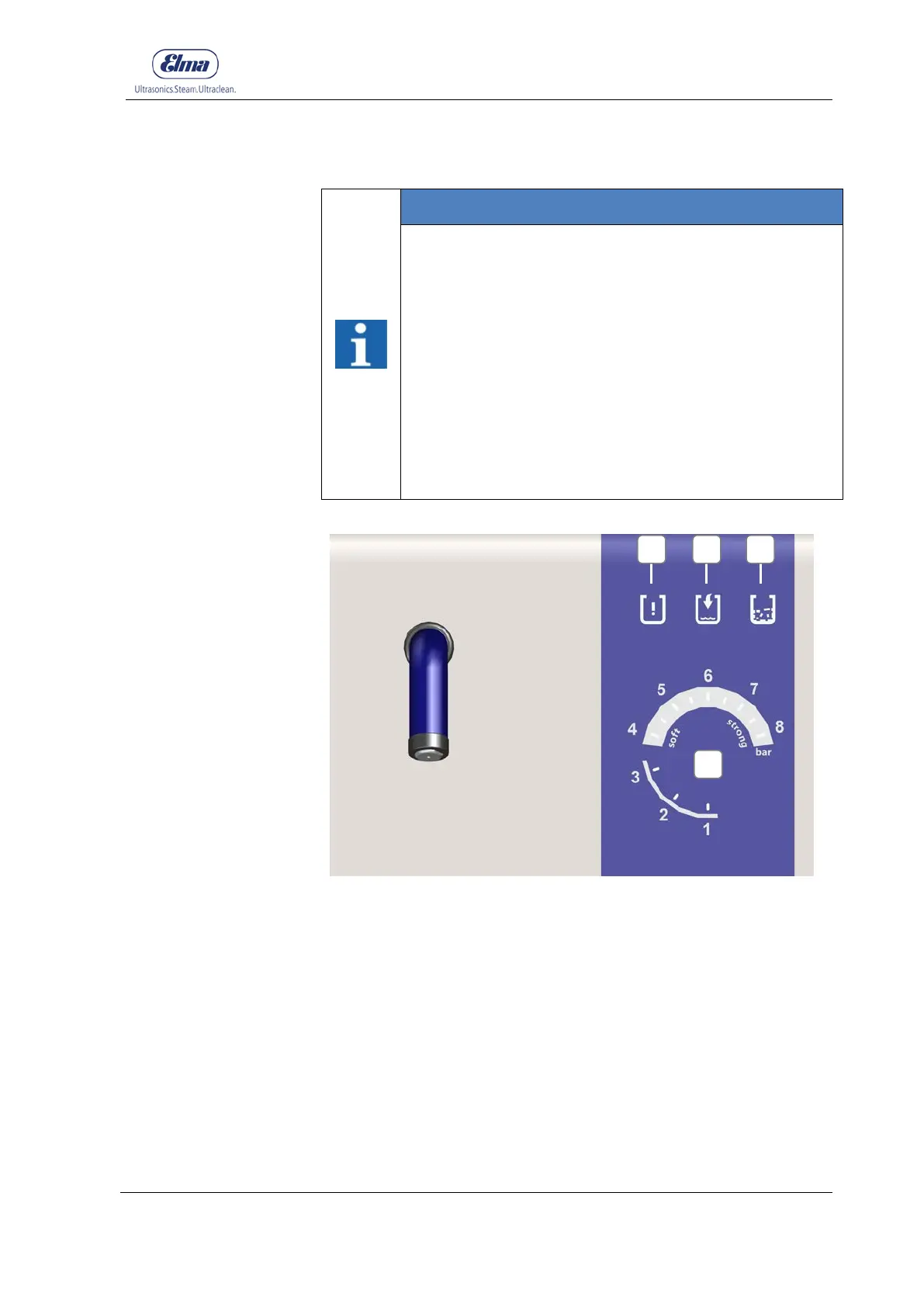

Figure 3.6.3: Operating Displays
Illuminates or flashes red for warnings for Filling Level/Descaling
Illuminates or flashes blue to indicate the filling level status in the
pressure vessel or the optional canister
Illuminates or flashes orange to signal descaling for the device
Illuminates or flashes green to indicate the operating pressure,
pressure value as well as the step display for the descaling
programme
Sounds for warnings, signals the urgency
Warning (A)
Filling Level (B)
Service/Descaling (C)
Gauge (D)
Signal Tone
A B C
D
