Elma Elmasteam 8 basic - Elements on the Device Rear Side

Product Description
20
BA_Elmasteam_8_Vers.07.2016 © Elma Schmidbauer GmbH
3.6.2 Elements on the Device Rear Side

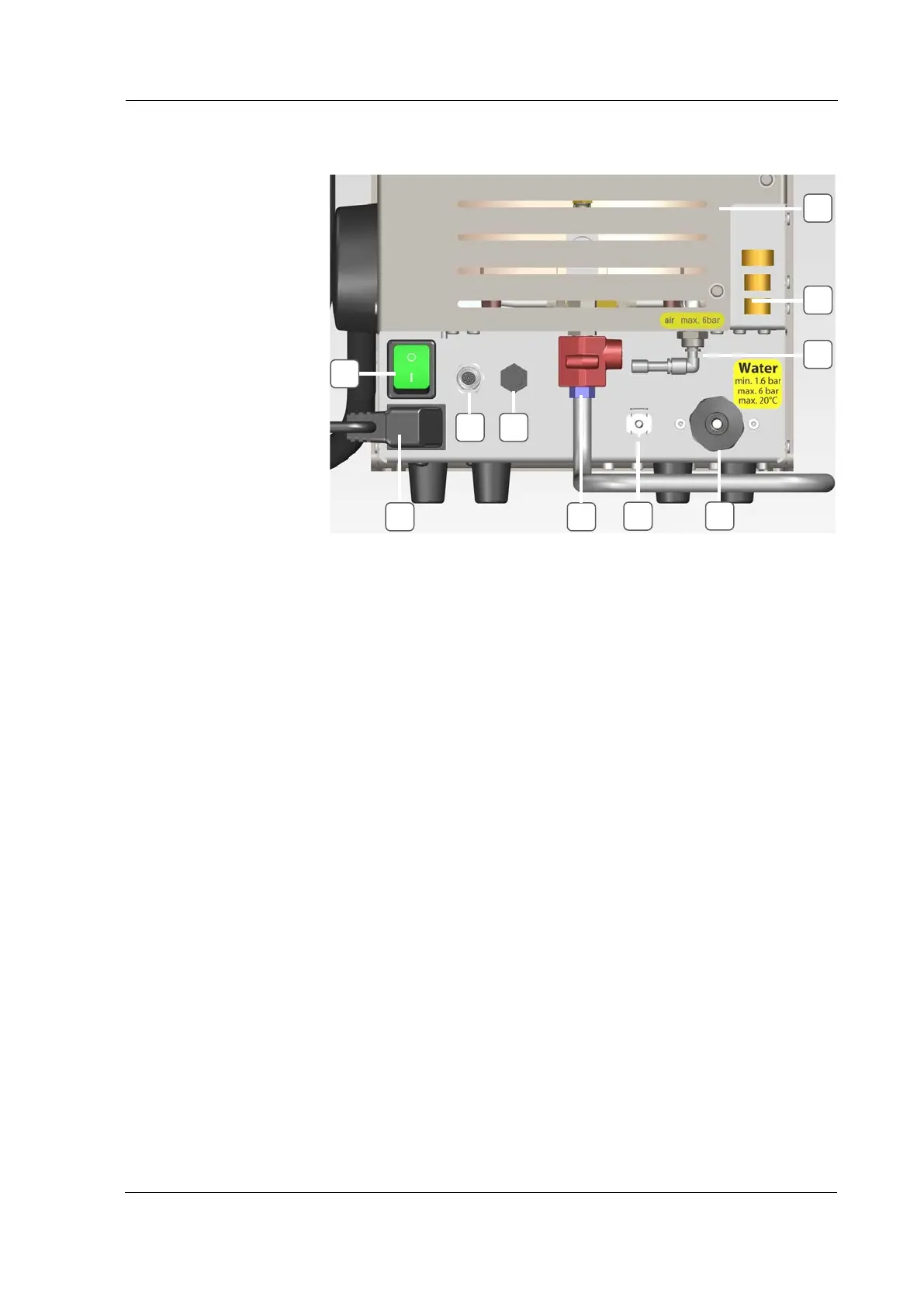

Figure 3.6.2: Device, rear side
Ventilation Openings
Safety Valve
Input Connection for External Compressed Air Supply
(optional)
Connection for Water Supply to the Pump (optional)
Connection for Exhaust Hose for the Canister (optional)
Ball Valve with Protective Cover for emptying the pressure
vessel and for maintenance works.
Connection for Filling Level Sensor on the Canister (optional)
Connection for Foot Switch for the assembled Fixed Nozzle
(optional)
Connection for Mains Supply Cable
On/Off Switch (Mains switch, illuminates as green in operation)
