5 Description of the Operating Displays

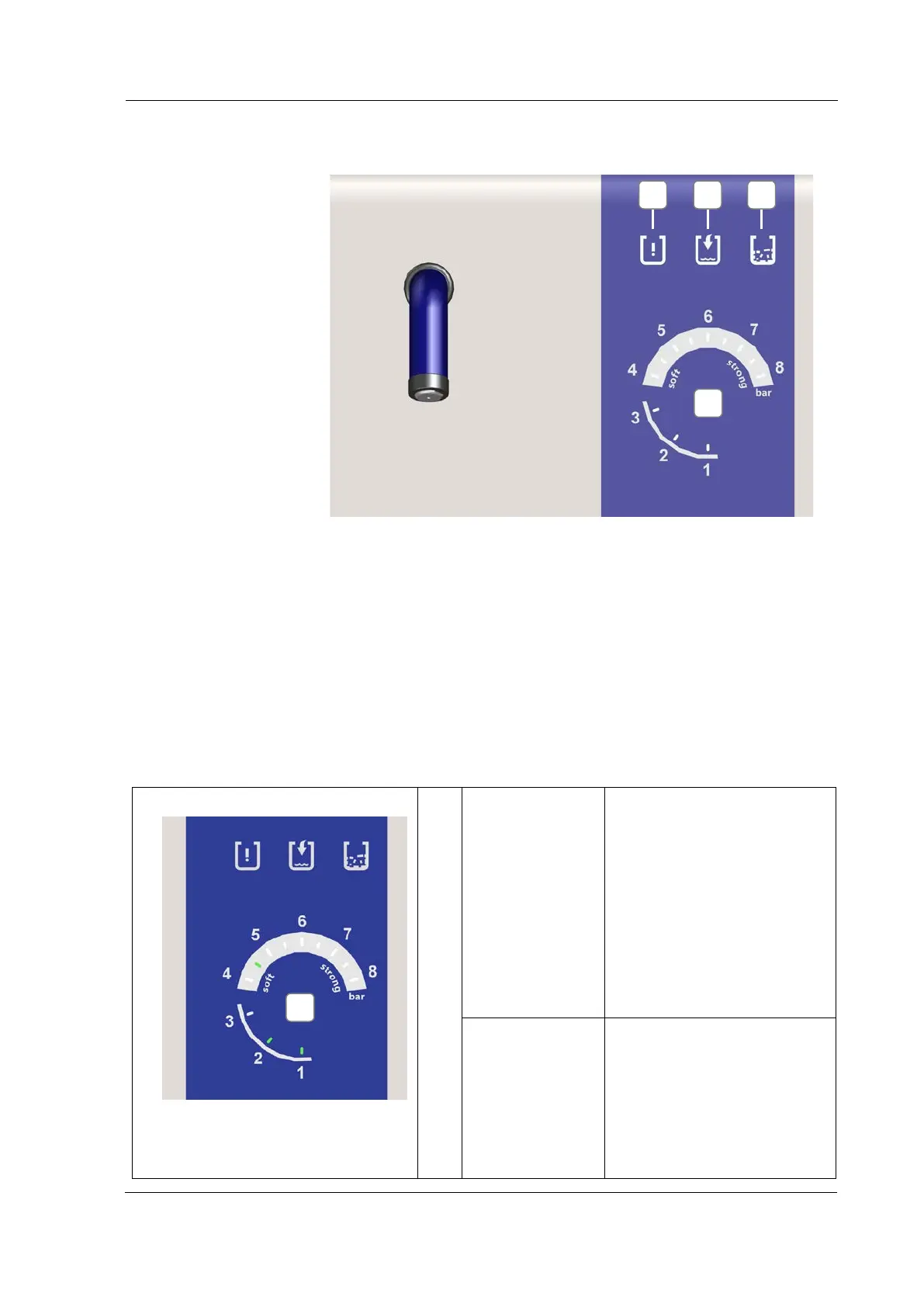

Figure 5.1: Operating Displays
Illuminates or flashes red for warnings for Filling Level/Descaling
Illuminates or flashes blue to signal the filling level status in the
pressure vessel or the optional canister
Illuminates or flashes orange to signal descaling for the device
Illuminates or flashes green to indicate the operating pressure,
pressure value as well as the step display for the descaling
programme
Sounds for warnings, signals the urgency
Operating soft / strong
Pre-set
operating
pressure for the
function soft or
strong flashes
green on the
scale of values
of the gauge (D)
The device heats up or
cools to the pre-set
operating pressure
The current achieved
pressure illuminates on the
scale of values
The device is ready for use
when the scale of values
illuminates up to operating
pressure
Scales of values
on gauge (D)
illuminates as
green
The currently achieved
pressure values illuminate
on the scale of values as
1-8
Example:
At 2 bar pressure, the scale
of values illuminates as 1-2
Warning (A)
Filling Level (B)
Service/Descaling (C)
Gauge (D)
