MES53xx, MES33xx, MES23xx Ethernet Switch Series 26

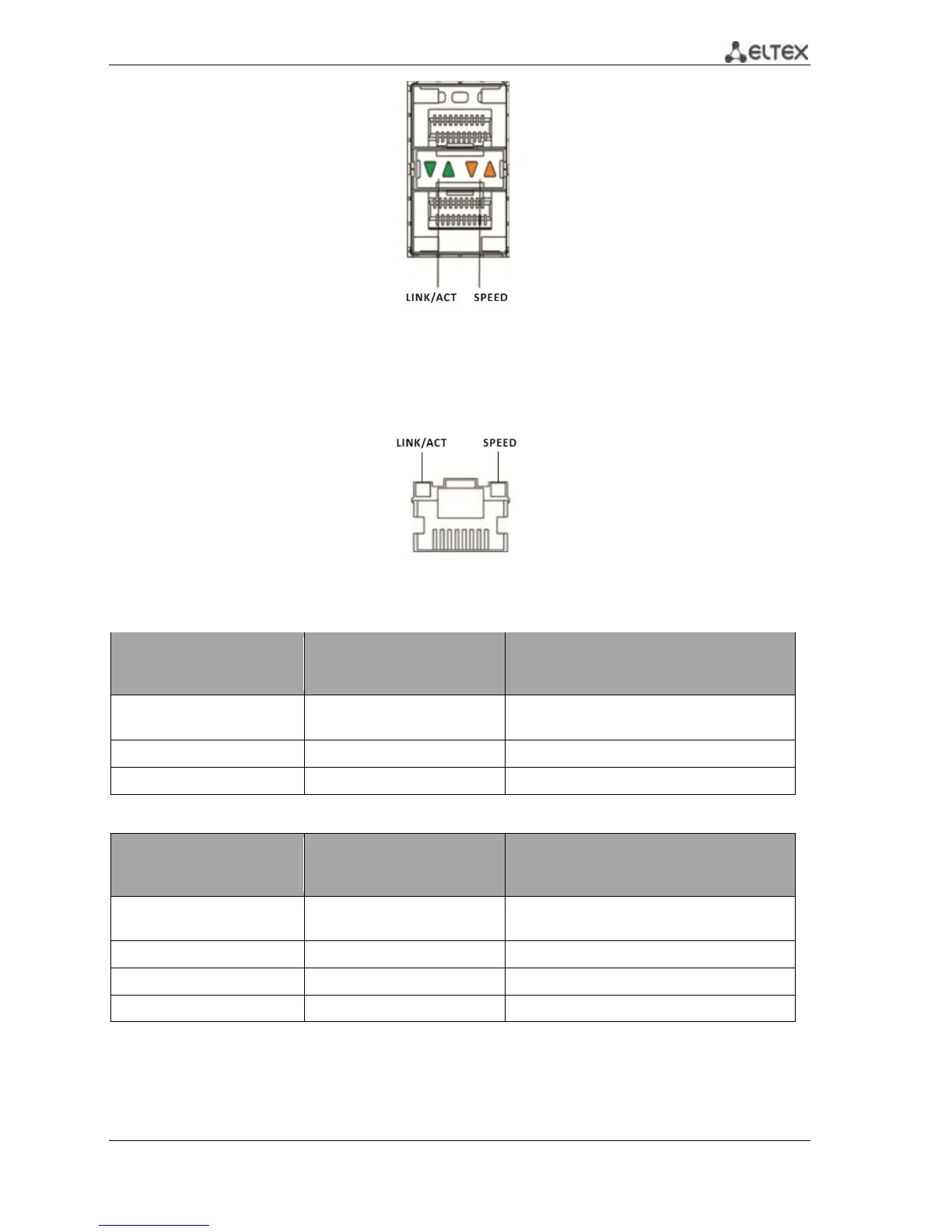

Figure 18. SFP/SFP+ socket view
Figure 19. RJ-45 socket view
Table 2.18. XLG port status LED
LINK/ACT indicator is lit
Port is disabled or connection is not
established
40 Gbps connection is established
Data transfer is in progress
Table 2.19. XG port state LED
LINK/ACT indicator is lit
Port is disabled or connection is not
established
1 Gbps connection is established
10 Gbps connection is established
Data transfer is in progress
Unit ID (1-8) LED indicates the stack unit number.
System indicators (Power, Master, Fan, RPS) are designed to display the operational status of the
modules of the MES53xx, MES33xx, MES23xx switches.
