ELTEX MES23xx User Manual

MES53xx, MES33xx, MES23xx Ethernet Switch Series 18
MES2308
310 x 158 x 44 mm
MES2308P
430 х 158 х 44 mm
Operating temperature range
from -20 to +45°C
Storage temperature range
from -40 to +70°C
Operational relative humidity (non-
condensing)
up to 40%
Storage relative humidity (non-
condensing)
from 10% to 95%
Average lifetime
20 years
Power supply type is specified when ordering.
2.4 Design
This section describes the design of devices. It provides the images of front, rear and side panels of
the device, the description of connectors, LED indicators and controls.
Ethernet switches MES53xx, MES33xx, MES23xx have a metal-enclosed design for 1U 19" racks.
2.4.1 Appearance and description of the front panel of MES53xx, MES33xx, MES23xx
switches.
Front panel layout of the MES53xx, MES33xx and MES23xx series is shown in Figure 1–8.

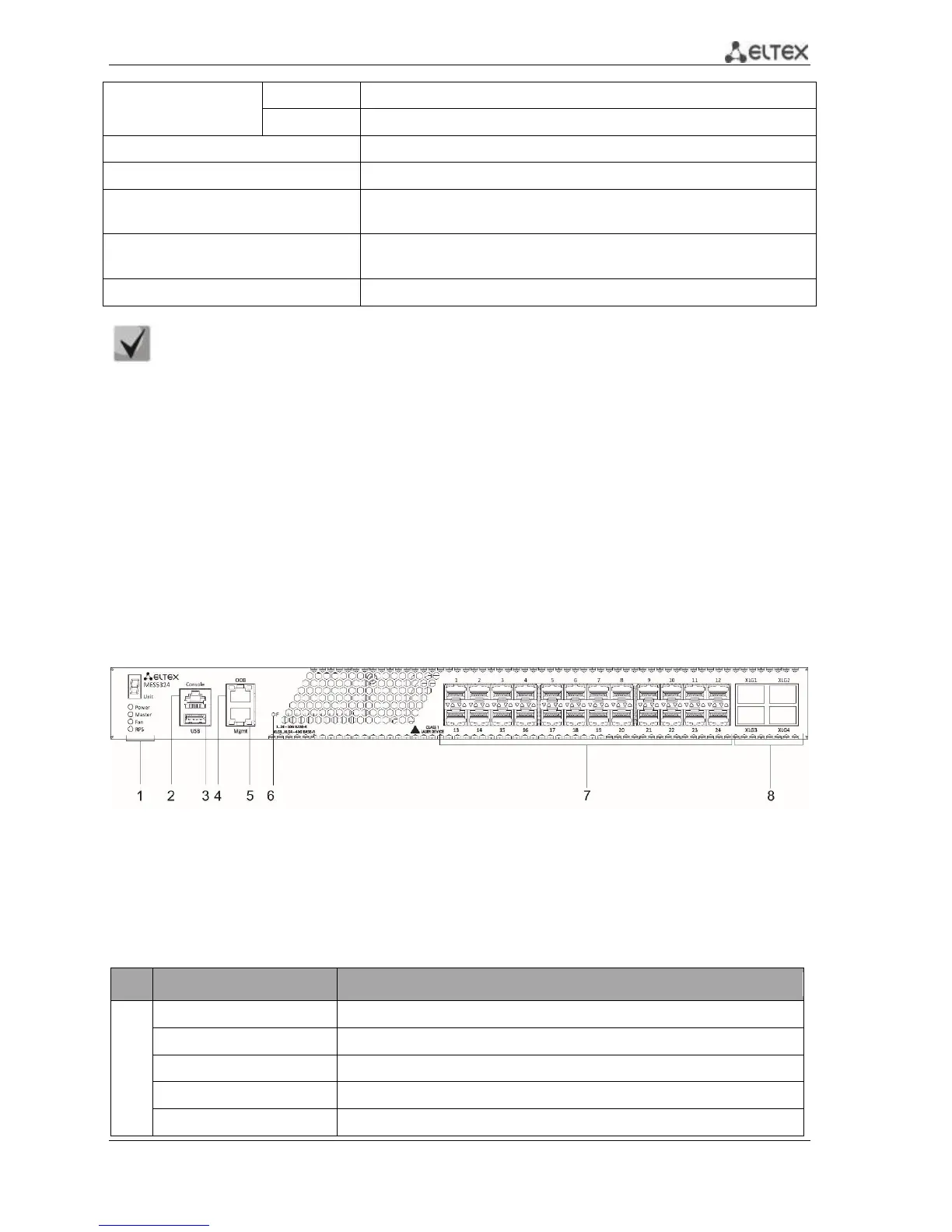

Figure 1. MES5324, front panel
.
Table 2.10 lists connectors, LEDs and controls located on the front panel of the switch.
Table 2.10. Description of MES5324 connectors, LEDs and front panel controls
No
Front panel element
Description
1
Unit ID
Indicator of the stack unit number.
Power
Device power LED.
Master
Device operation mode LED (master/slave).
Fan
Fan operation LED.
RPS
Backup power supply LED.
