Fig.
102
: Gas saving for resistance furnace operation

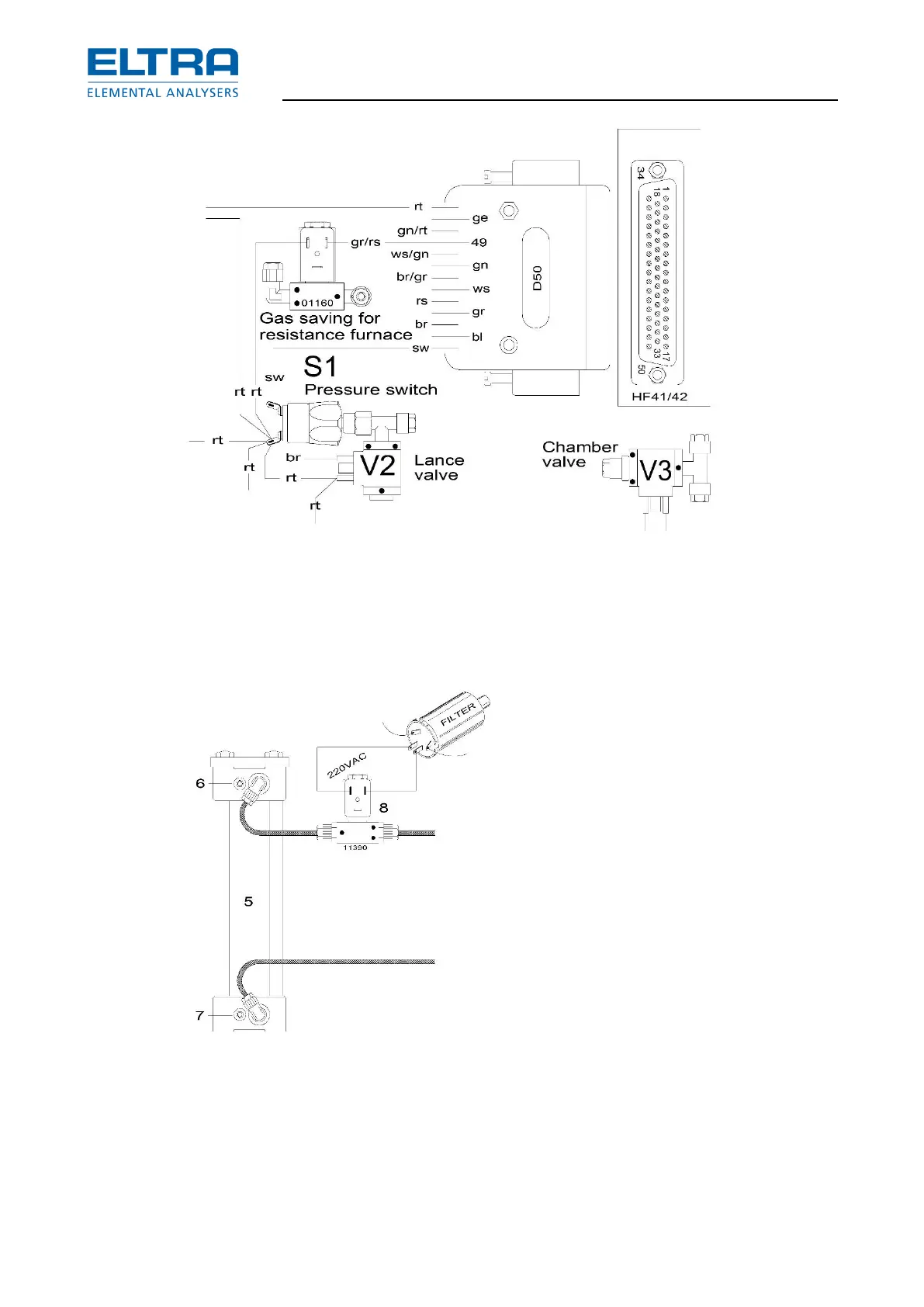

4. Connect the coil of 01160 as shown in schematic
Pos: 7.22 /0025 Üb erschriften/E LTRA 1.1 Übersc hriften/11 Furn ace pneumatics - additional s afety featur es (optional) ELTR A @ 6\mod_13 69643455549 _9.docx @ 425 31 @ 2 @ 1
5.11 Furnace pneumatics - additional safety features (optional)
Pos: 7.23 /0010 E LTRA/0015 s ervice_instructio ns/CS-2000_s ervice/15 Ser vice_CS-2000/15 60 Modul Fur nace pneumatics - additional sa fety features (op tional) @ 9\m od_14255437 30507_9.docx @ 74838 @ @ 1
The furnace doesn’t change position in case of a power failure.
Fig.
103
: Furnace power failure
By adding a solenoid valve (8) and connecting the coil directly to 220V AC, the piston won’t
change position in case of a power failure. If the piston was down, it will remain down; if it was
up, it will remain up.
