ELTRA CS-2000 Service Manual

Adjustments
94
Pos: 5.18 /0025 Üb erschriften/E LTRA 1.1 Übersc hriften/11 Indu ction generator c ontrol ELTRA @ 6\mod_1 36938749083 6_9.docx @ 4209 6 @ 2 @ 1
4.9 Induction generator control
Pos: 5.19 /0010 E LTRA/0015 s ervice_instructio ns/CS-2000_s ervice/10Adjust ments_CS-2000/ 1050 Modul In duction genera tor control @ 9\ mod_1425 542716597_9.doc x @ 74670 @ @ 1

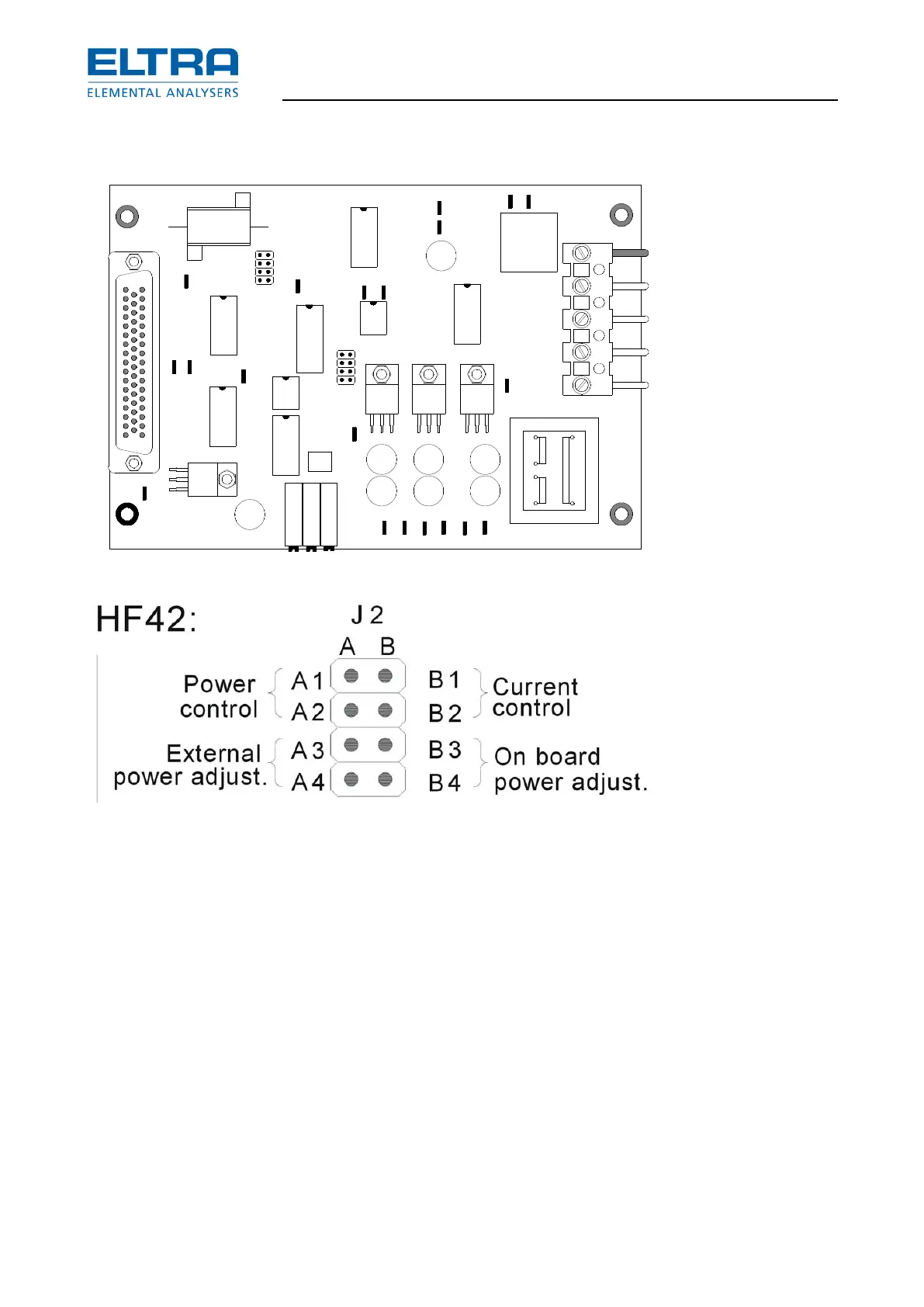

Fig.
74
: HF 42
Fig.
75
: Jumper settings HF 42
Current control:
The current control provides a safer and more accurate control of the furnace intensity.
– Set the jumper J2 to B1-B2. .
– Connect a digital multi meter on TP1 (TP15 is GND).
Adjust only, while the furnace is active:
– Start the analysis, adjusting P2 until 6.3V DC is reached on TP1 (for copper analysis,
adjust 1.2V DC).
TP15 TP16 TP17 TP18
TP19
+24V
-12V
+5V
+12V
+20V
GND
TP20
HF42 12016
P1 P3 P2
TP1
TP2
TP10
TP11
TP13
TP14
TP8
TP7
TP9
TP12
TP6
TP3
J3
J2
TP5
TP4
