6.1.6
Oscillating circui
t

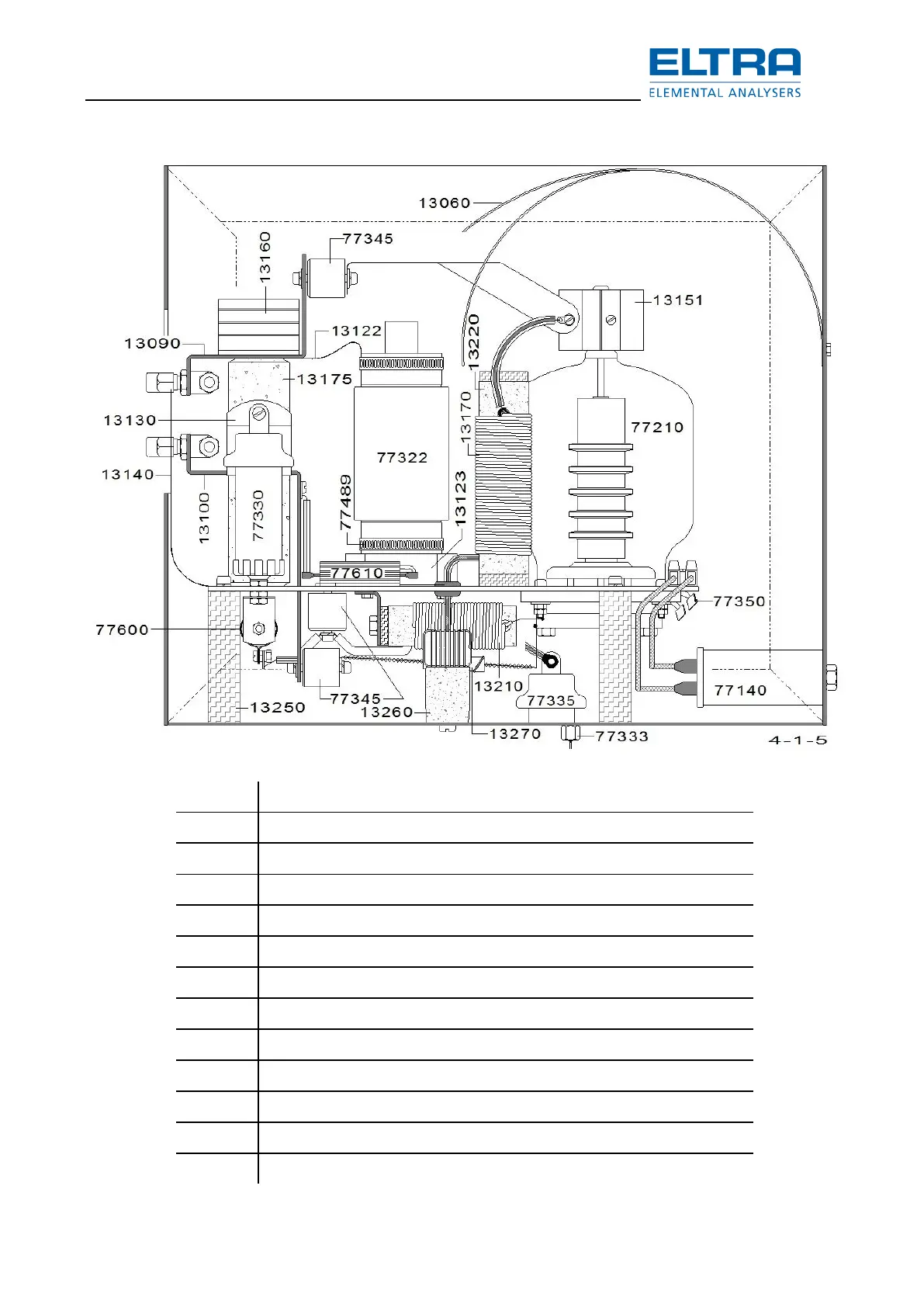

Fig.
110
: Oscillating circuit
Part No.
Description
13060
Protection sheet
13081
Capacitor support
13090
Upper coil connector
13100
Lower coil connector
13122
Capacitor connector
13130
Capacitor connector
13140
Ground connector
13151
Anode connector and
heat sink
13160
Coil heat sink
13170
Radiation shield
13175
Insulator
13210
