3.10.2 Other faults
– The screw for the upper furnace cushioning is too tight, see chapter “Pneumatics”
– The pressure switch does not close. Measure the voltage across its leads. Zero volts with
pressure, 24 VDC without pressure.
– The furnace closes too slowly, adjust according to chapter “Pneumatics”
– The furnace does not close: see chapter “The induction furnace does not close”
3.10.3 Resistance furnace operation
– Check the oxygen pressure on the upper pressure gauge. The pressure should be about
1,5 bar (22 psi). If lower, see Chapter “No or low oxygen pressure”
– Check the pump voltage in the “Device state window”.
Pos: 3.22 /0025 Üb erschriften/E LTRA 1.1 Übersc hriften/11 IR-c ell temperat ure control is out o f range ELTR A @ 6\mod _1368687694553_9. docx @ 404 48 @ 2 @ 1
3.11 IR-cell temperature control is out of range
Pos: 3.23 /0010 E LTRA/0015 s ervice_instructio ns/CS-2000_s ervice/05Faults_C S-2000/0 565 Modul IR te mperature control out of range @ 9\mod_1425 539916703_9.d ocx @ 74237 @ 3 @ 1
If in the device state the graphs of IR-temperature °C or %IR are not in the green area, adjust
the temperature. See chapter “IR-cell temperature control”.

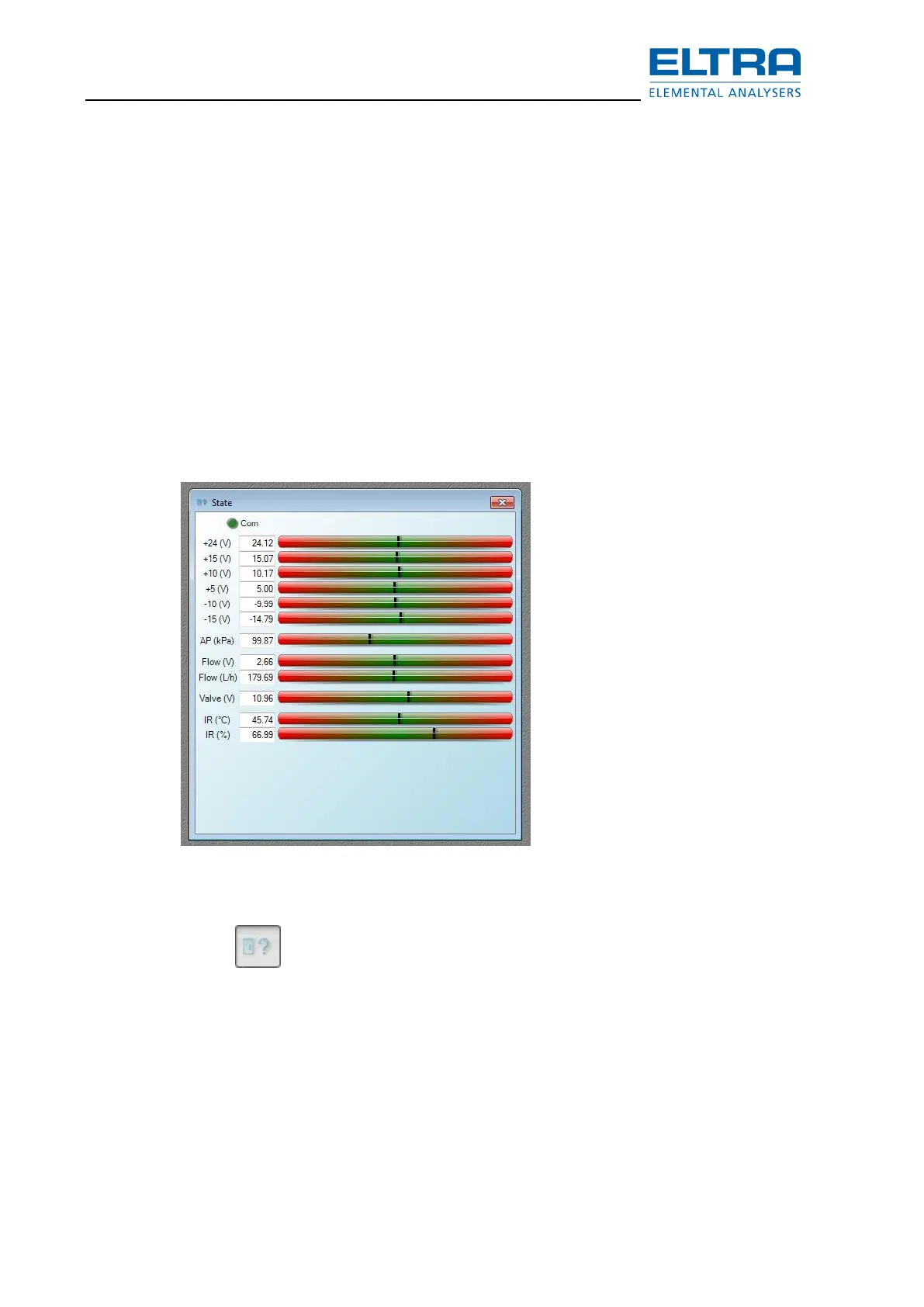

Fig.
27
: Device state
– Thermostatic control reports 0% or 100% power:
The percentage of power required by the thermostatic control is displayed in the Device State
Window . The power is 100% after switching on from cold while heating up. It takes about
30 minutes for the temperature to reach the set point. In stable condition, the power required
should be between 30 and 70%.
If the value is less than 30%, adjust a higher temperature set point. If the value is over 70%
without any tendency for coming down to lower values, adjust a lower set point.
Pos: 3.24 /0025 Üb erschriften/E LTRA 1.1 Übersc hriften/11 Bre aker turns off at the beginning o f combustion ELTR A @ 6\ mod_1368688 648887_9.doc x @ 40470 @ 2 @ 1
3.12 Breaker turns off at the beginning of combustion
Pos: 3.25 /0010 E LTRA/0015 s ervice_instructio ns/CS-2000_s ervice/05Faults_C S-2000/0 570 Modul Brea ker turns off at th b eginning of cu mbustion @ 9\ mod_1425539 992083_9.doc x @ 74249 @ @ 1
If the circuit breaker turns off at the beginning of combustion then:
– Unplug the analyzer mains power plug.
– Switch on the breaker.
