6.1.5
Furnace cleaning

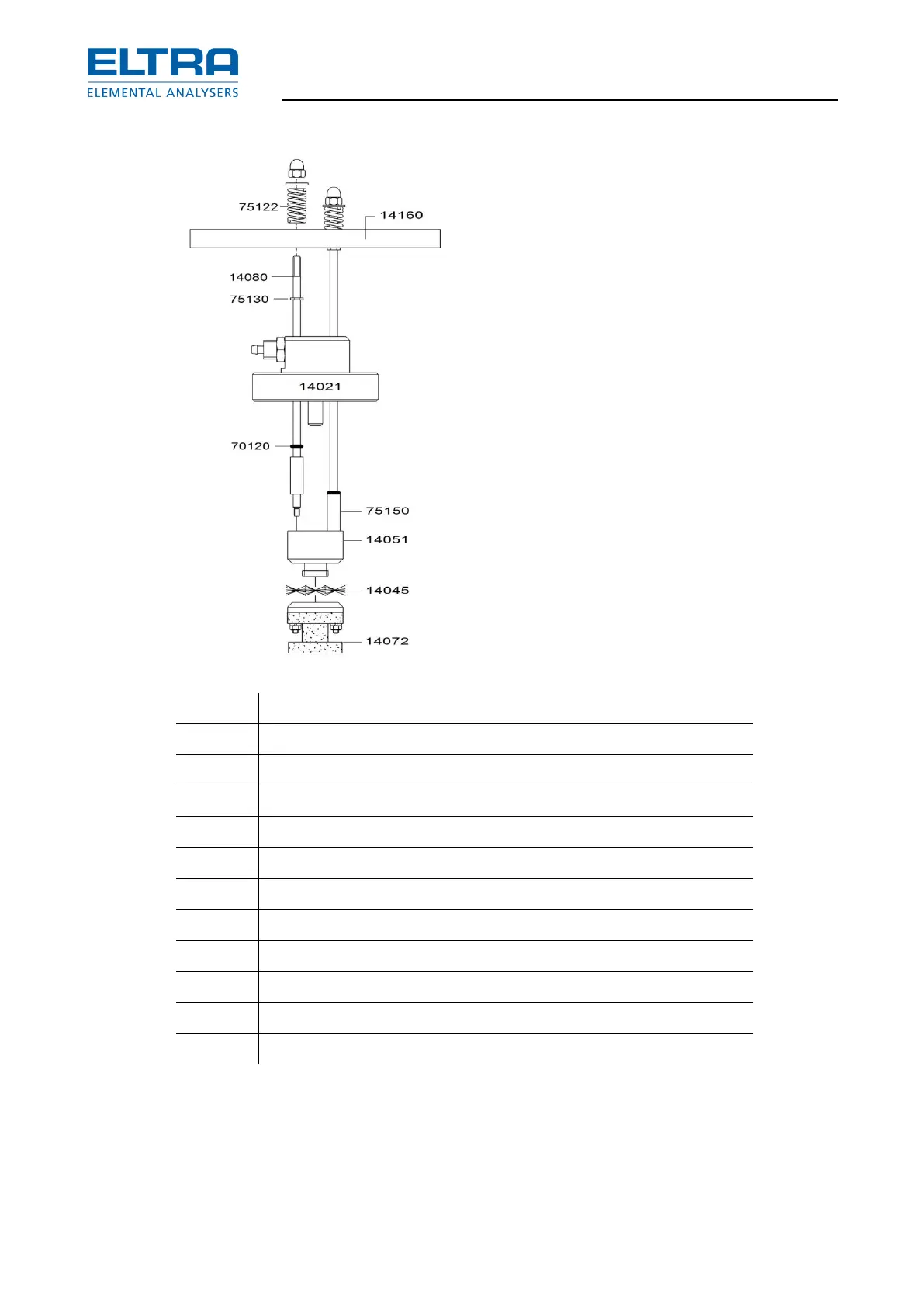

Fig.
109
:
Furnace cleaning m
echanism
Part No.
Description
14014
Complete furnace cle
aning ass
embly unit:
14021
Upper furnace lock
14045
Cleaning brush f
or combustion tube
14051
Brush holder
14072
Ceramic heat shiel
d for brush
14080
Cleaning mec
hanism Rod
14160
Upper log
70120
O-ring
75122
Spring
75130
Safety spring
75150
Metal tube
