ELTRA CS-2000 Service Manual

Faults
43
Fig.
30

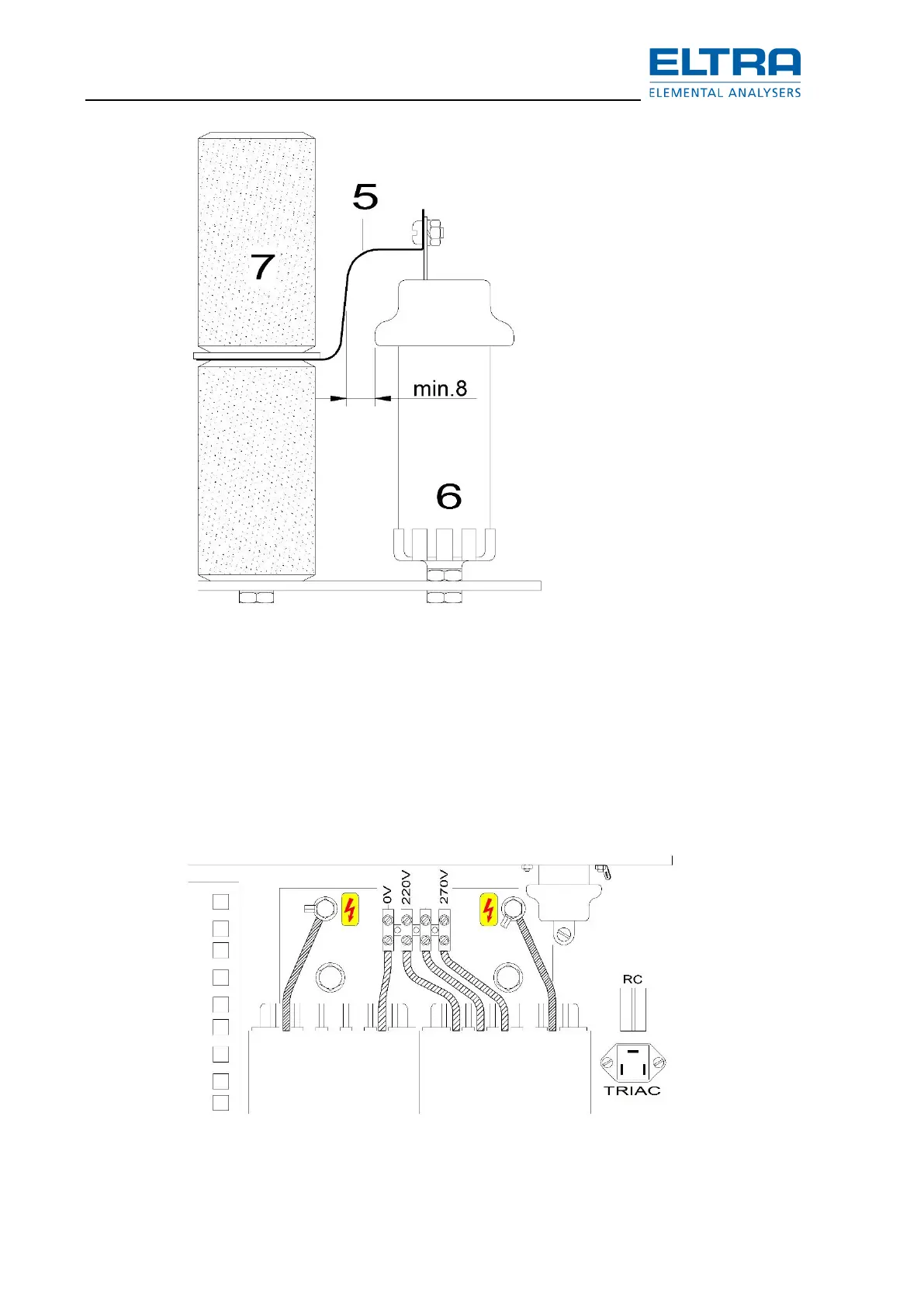

: Capacitor and insulator
Pos: 3.26 /0025 Üb erschriften/E LTRA 1.1 Übersc hriften/11 Bre aker turns off at the end of the a nalysis ELTRA @ 6\mod_13 68692228547 _9.docx @ 4 0492 @ 2 @ 1
3.13 Breaker turns off at the end of the analysis
Pos: 3.27 /0010 E LTRA/0015 s ervice_instructio ns/CS-2000_s ervice/05Faults_C S-2000/0 575 Modul Brea ker turns off at the end of anal ysis @ 9\mod_14 25540062314 _9.docx @ 742 61 @ @ 1
Causes:
The triac is malfunctioning.
The so-called Latch-up effect causes the triac to remain conductive in one direction after
triggering. The transformer is then acting as a short circuit because it is fed with a DC voltage!
– Replace the TRIAC.
