5 Service
Pos: 7.2 /0025 Ü berschriften/ELTR A 1.1 Übersc hriften/11 IR-p aths, cleaning and replacing E LTRA @ 6\m od_13696406668 97_9.docx @ 4 2179 @ 2 @ 1
5.1 IR-paths, cleaning and replacing
Pos: 7.3 /0010 ELTRA/0015 ser vice_instructions /CS-2000_ser vice/15 Ser vice_CS-2000/150 5 Modul IR-pa ths, cleaning a nd replacing @ 9\ mod_1425 543299696_9.doc x @ 74706 @ @ 1
– Remove the plastic tubes from the IR-paths (gas inlet / outlet).
– Unscrew the rings with windows on both ends of the paths and remove it for cleaning
purposes (screws M 2.5 in the following schematics).
– After disassembly check the two windows for damage.
– For cleaning the path use the cleaning brush for golden IR-paths, see picture below.

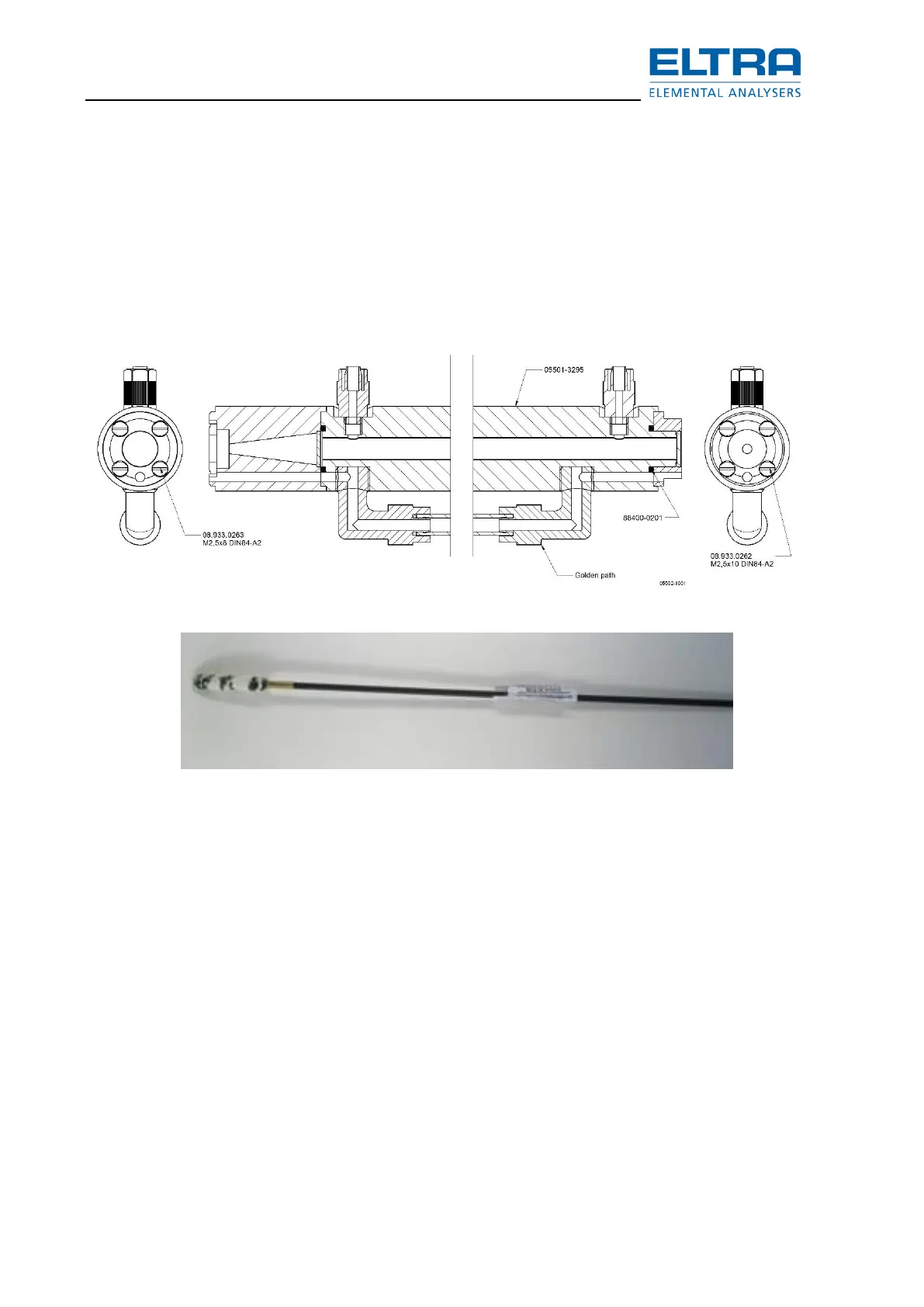

Fig.
81
: Golden IR-Path
Fig.
82
: Cleaning brush for golden IR-Path
– Assembly of the paths in the reverse order.
– After reinstallation, adjustments according to chapter “Infrared base line “and “Infrared
power supply” are highly recommended.
– Check the calibration and if necessary calibrate. See operation manual.
List of available infrared paths for the CS-2000 see chapter “Ordering numbers”.
The following schematic is to help to make sure that the tubing is done correctly after
reinstalling the cleaned paths.
