16
Install the VNX5300 DPE rails
Follow these steps to install your DPE. The DPE should be installed just above the SPS. The
rails must be aligned carefully. A hole in the cabinet channel above the SPS remains open. Two
people are recommended to install the rails.

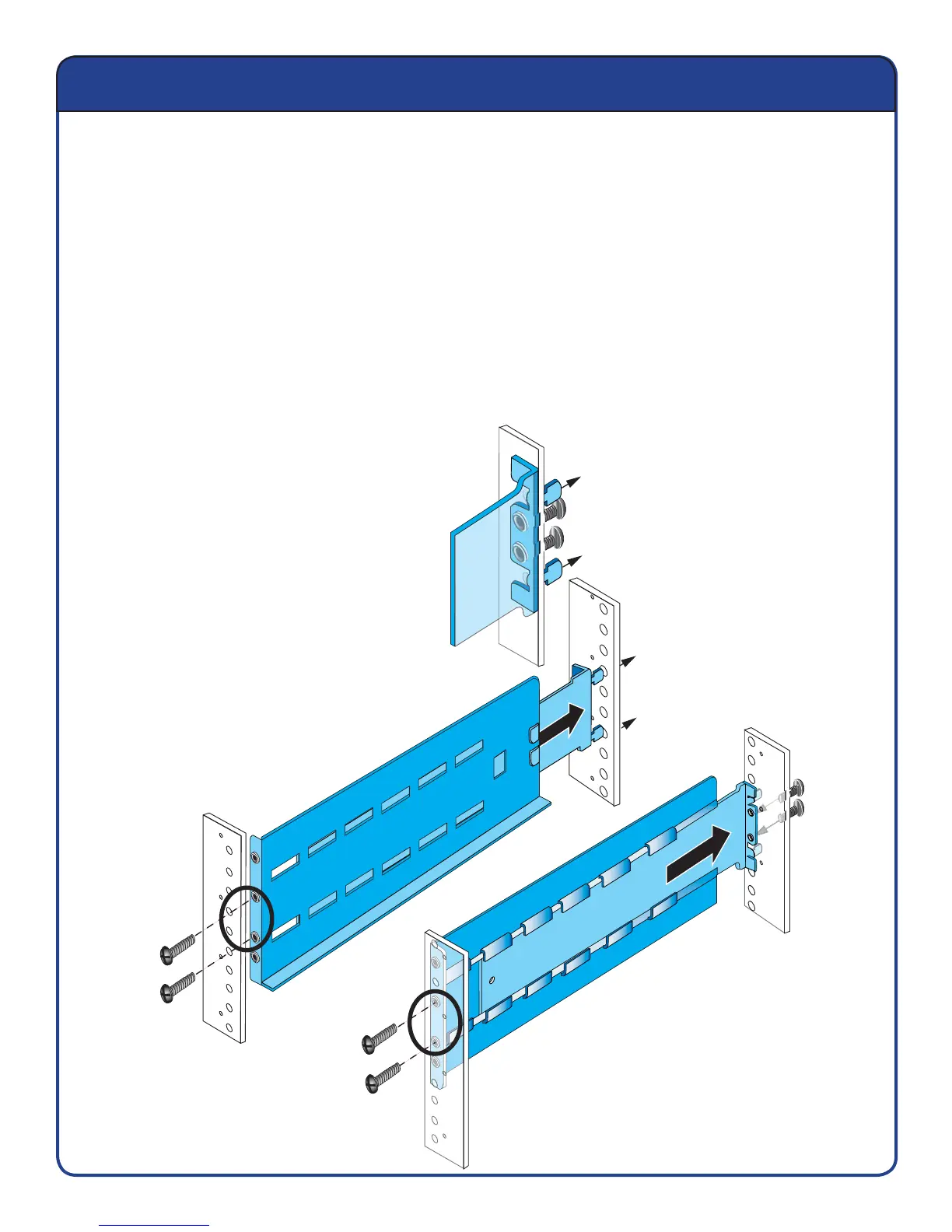

1. Insert the adjustable 3U rail slide and seat both alignment pins into the rear channel of
your cabinet.
2. Extend the adjustable rails so that it extends to the front channel of the cabinet.
3. Align the front of the rails carefully as shown.
4. Insert two retention screws in the front and two retention screws in the back of each rail
as shown.
5. Tighten the screws once the rails are aligned correctly.
2 screws
Insert the
alignment pins
Front Left
Alignment pins
L
2 screws
Front right
Adjustable rails
2 screws
