EMC VNX5300 - Network Management and Service Laptop Ethernet (RJ-45) Ports

28

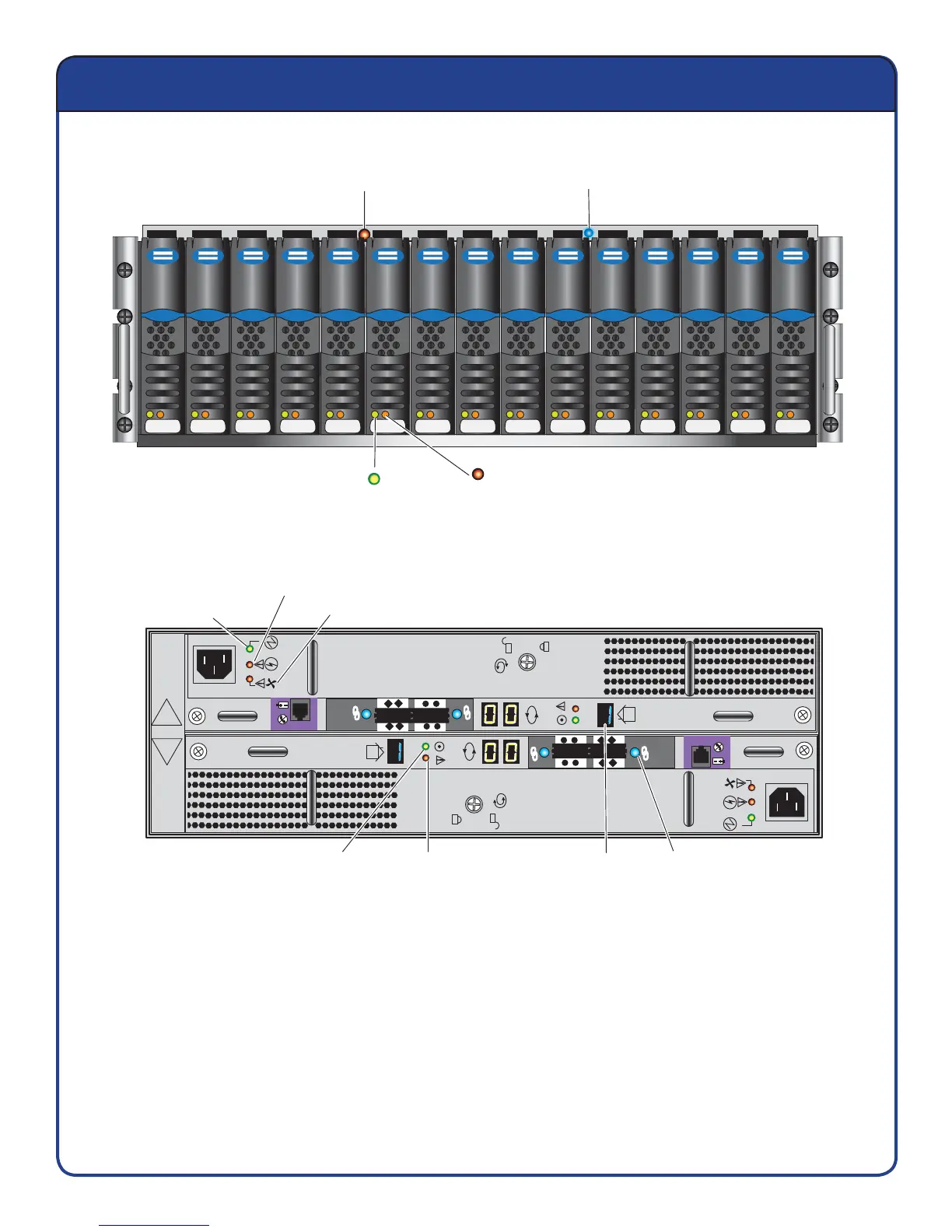

VNX5300 DAE 3U LEDs
Power supply
Good LED
Power supply
Fault LED
Power supply
cooling fault LED
Rear
A
B
#
X4
6Gb SAS
#
X4
6Gb SAS
LCC A power
LED
LCC A Fault
LED
Enclosure
identication
SAS Link
LED
3U, 15 disk array enclosure
DAE Fault
LED
Disk drive
Power/Activity LED
14
0
DAE Power
LED
Disk drive
Fault LED
Front
If the power LEDs do not remain solid/steady green, contact your authorized service provider.
If the power LEDs on each DAE remain solid/steady blue/green, proceed with the next steps.
For complete information on the DAE LEDs, see the VNX5300 Hardware Overview.
