Rosemount Model 8800C Vortex Flowmeter
2-4
High-Temperature Installations
Install the meter body so the electronics are positioned to the side of the
pipe or below the pipe as shown in Figure 2-2. Insulation may be
required around the pipe to maintain a temperature below 185 °F
(85 °C).

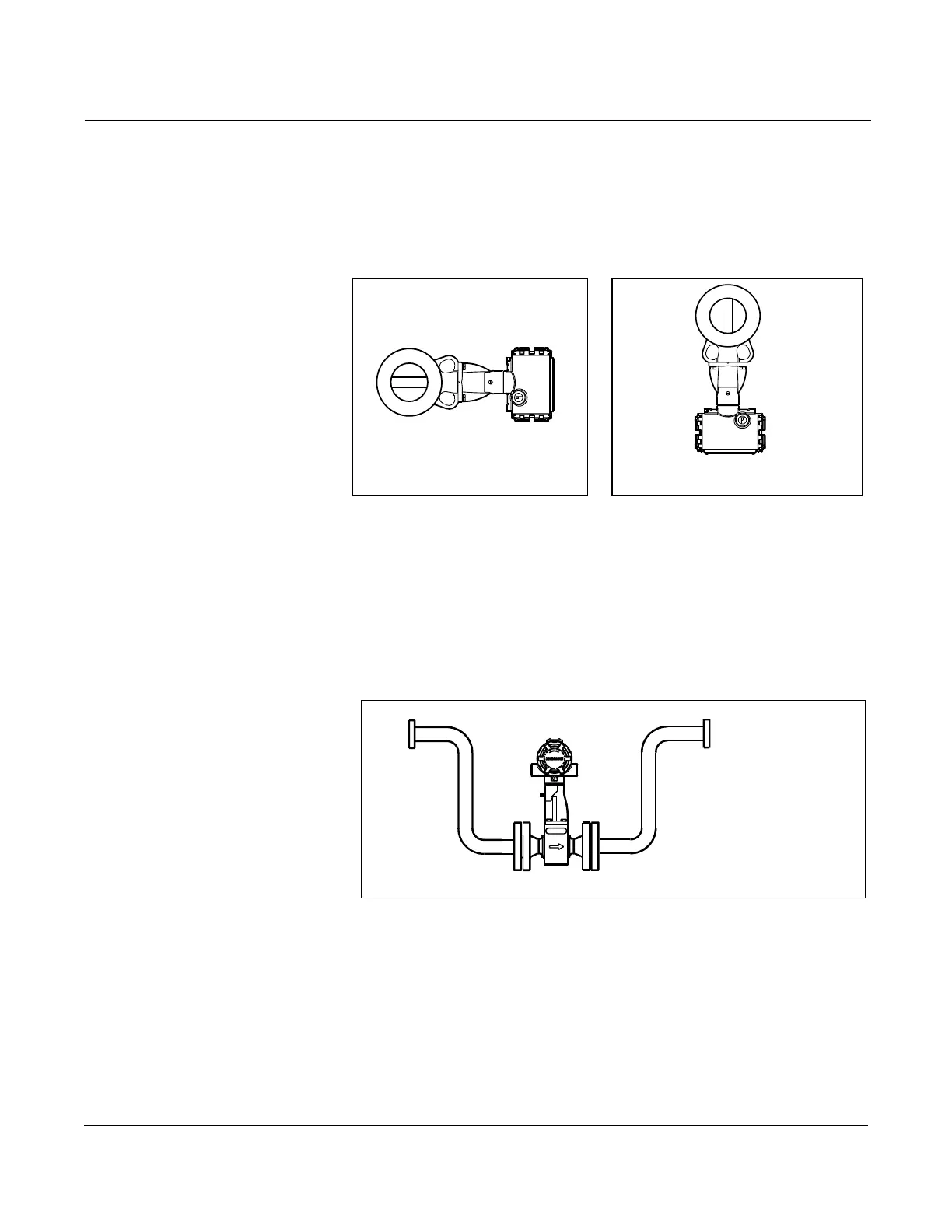

Figure 2-2. Examples of High-Temperature Installations
Steam Installations
For steam applications, avoid installations, such as the one shown in
Figure 2-3. Such installations may cause a water-hammer condition at
start-up due to trapped condensate. The high force from the water
hammer can over stress the sensing mechanism and cause permanent
damage to the sensor.
Figure 2-3. Avoid This Type of Installation for Steam Applications
The meter body installed with the
electronics to the side of the pipe.
The meter body installed with the
electronics below the pipe.
8800-0002A01C
8800-8800G15B
