Emerson 8800C User Manual

Rosemount Model 8800C Vortex Flowmeter
2-18

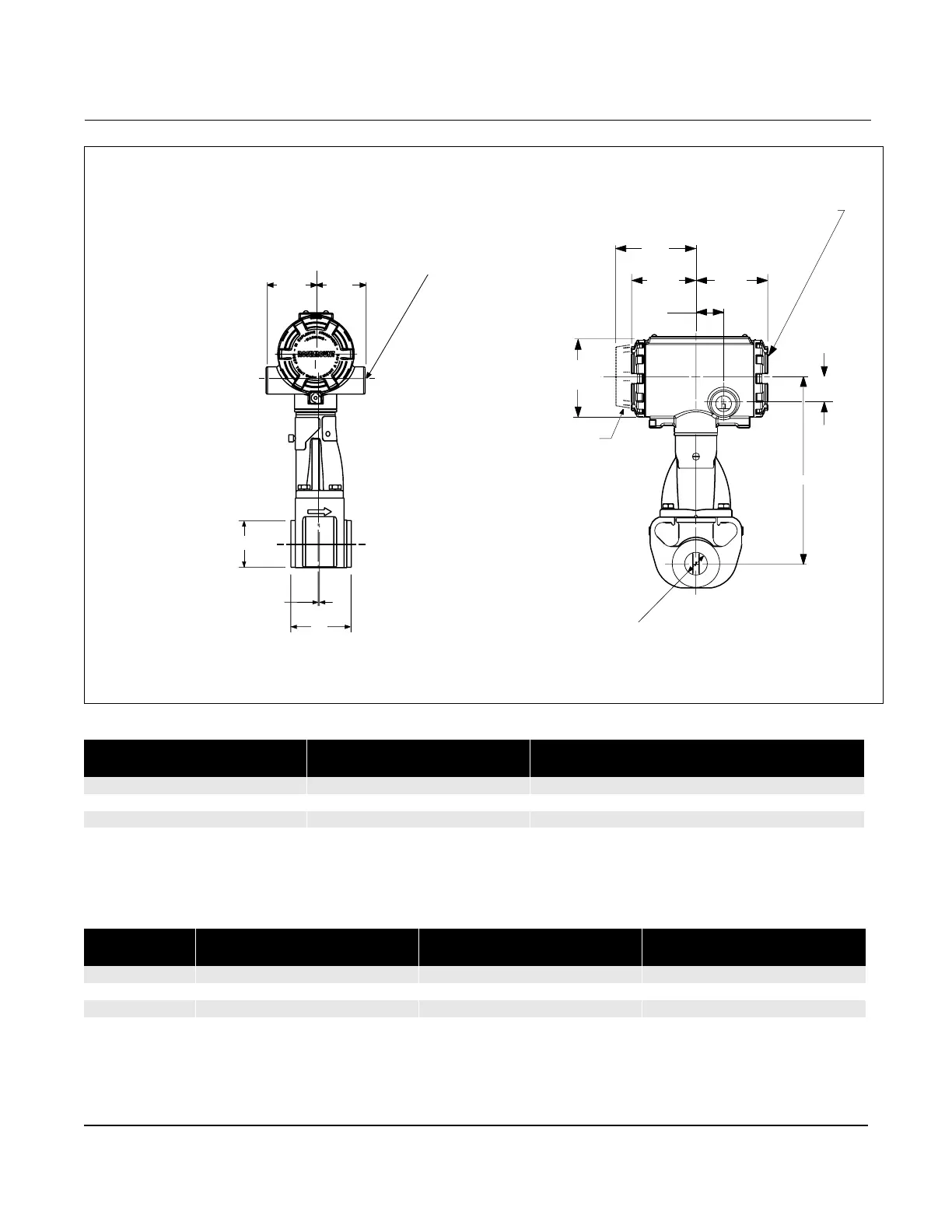

Figure 2-12. Wafer-Style Dimensional Drawings (
1
/2-through 1
1
/2 in./15 through 40 mm Line Sizes)
2.00
(51)
2.00
(51)
E
A
Diameter D
Electrical Connection
ASME B16.5 (ANSI)
1
/2-14 NPT (2 places)
Terminal Cover
Diameter B
Display
Option
1.00
(25)
3.20
(81)
2.85
(72)
2.56
(65)
1.10
(28)
C
Diameter
3.06 (78)
NOTE
Dimensions are in inches (millimeters)
Electronics housing may be rotated in 90 degree increments
8800-002D01D, 002C01C
Table 2-9. Model 8800C Stainless Steel Wafer
Nominal Size
Inch (mm)
Face-to-face A
Inch (mm)
(1)
Diameter B
Inch (mm)
(2)
C
Inch (mm)
(3)
Diameter D
Inch (mm)
E
Inch (mm)
Weight
lb (kg)
(4)
½ (15) 2.56 (65) 0.54 (13,7) 7.63 (194) 1.38 (35,1) 0.23 (5,9) 7.3 (3,3)
1 (25) 2.56 (65) 0.95 (24,1) 7.74 (197) 1.98 (50,3) 0.23 (5,9) 7.4 (3,4)
1½ (40) 2.56 (65) 1.49 (37,8) 8.14 (207) 2.87 (72,9) 0.18 (4,6) 10.0 (4,5)
(1) ±0.14 inch (3.6 mm)
(2) ±0.03 inch (0.8 mm)
(3) ±0.20 inch (5.1 mm)
(4) Add 0.2 lb (0,1 kg) for display option.
Table 2-10. Model 8800A Hastelloy© Wafer
Nominal Size
Inch (mm)
Face-to-face A
Inch (mm)
(1)
Diameter B
Inch (mm)
(2)
C
Inch (mm)
(3)
Diameter D
Inch (mm)
E
Inch (mm)
Weight
lb (kg)
(4)
½ (15) 2.44 (62) 0.52 (13,2) 7.63 (194) 1.38 (35,1) 0.17 (4,3) 6.8 (3,1)
1 (25) 2.44 (62) 0.95 (24,1) 7.74 (197) 1.98 (50,3) 0.17 (4,3) 7.6 (3,4)
1½ (40) 3.11 (79) 1.49 (37,8) 8.08 (205) 2.87 (72,9) 0.47 (11,9) 10.8 (4,9)
(1) ±0.14 inch (3.6 mm)
(2) ±0.03 inch (0.8 mm)
(3) ±0.20 inch (5.1 mm)
(4) Add 0.2 lb (0,1 kg) for display option.
