Installation

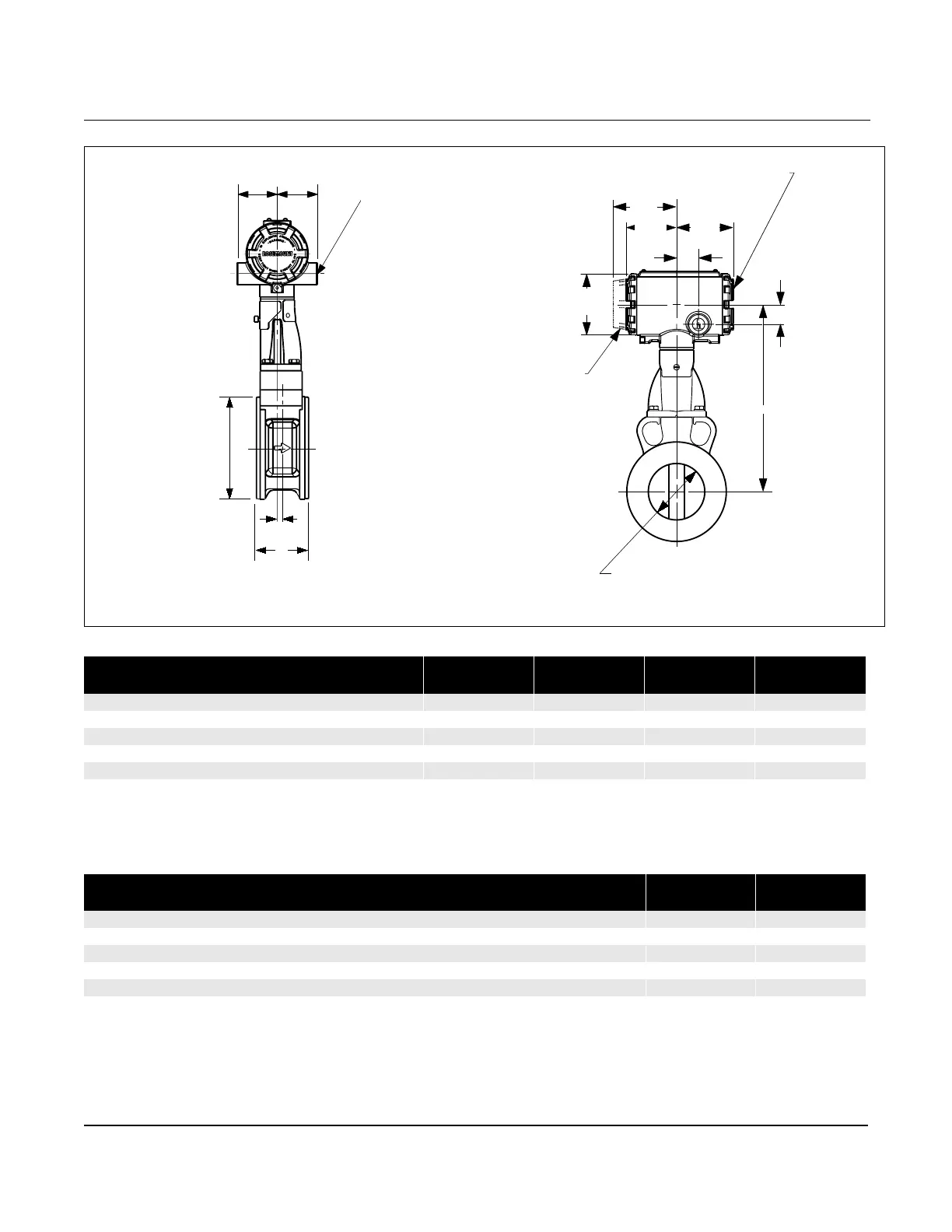

Figure 2-13. Wafer-Style Dimensional Drawings (2-through 8-in./50 through 200 mm Line Sizes)
Electrical
Connection ASME
B16.5 (ANSI)
1
/2-14
NPT (2 places)
Diameter D
2.00
(51)
2.00
(51)
E
A
Diameter B
Diameter
3.06 (78)
Display
Option
2.85
(72)
1.10
(28)
2.56
(65)
3.20
(81)
Terminal Cover
1.00
(25)
C
8800-0002B01C, 0002A01D
NOTE
Dimensions are in inches (millimeters)
Electronics housing may be rotated in 90 degree increments
Table 2-11. Model 8800C Stainless Steel Wafer
Nominal Size
Inch (mm)
Face-to-face A
Inch (mm)
(1)
Diameter B
Inch (mm)
(2)
C
Inch (mm)
(3)
Diameter D
Inch (mm)
E
Inch (mm)
Weight
lb (kg)
(4)
2 (50) 2.56 (65) 1.92 (49) 8.85 (225) 3.86 (98) 0.12 (3) 10.6 (4,8)
3 (80) 2.56 (65) 2.87 (73) 9.62 (244) 5.00 (127) 0.25 (6) 13.6 (6,2)
4 (100) 3.42 (87) 3.79 (96) 10.48 (266) 6.20 (158) 0.44 (11) 21.4 (9,7)
6 (150) 4.99 (127) 5.70 (145) 10.75 (273) 8.50 (216) 1.11 (28) 49.1 (22,3)
8 (200) 6.60 (168) 7.55 (192) 11.67 (296) 10.62 (270) 0.89 (23) 85 (38,6)
(1) ±0.14 inch (3.6 mm)
(2) ±0.03 inch (0.8 mm)
(3) ±0.20 inch (5.1 mm)
(4) Add 0.2 lb (0,1 kg) for display option.
Table 2-12. Model 8800A Hastelloy© Wafer
Nominal Size
Inch (mm)
Face-to-face A
Inch (mm)
(1)
Diameter B
Inch (mm)
(2)
C
Inch (mm)
(3)
Diameter D
Inch (mm)
E
Inch (mm)
Weight
lb (kg)
(4)
2 (50) 3.81 (97) 1.92 (49) 8.45 (215) 3.86 (98) 0.86 (22) 10.8 (4,9)
3 (80) 3.92 (100) 2.87 (73) 9.10 (231) 5.00 (127) 0.76 (19) 15.0 (6,8)
4 (100) 4.47 (114) 3.79 (96) 9.56 (243) 6.20 (158) 0.82 (21) 23.0 (10,4)
6 (150) 4.99 (127) 5.70 (145) 10.75 (273) 8.50 (216) 1.11 (28) 49.1 (22,3)
8 (200) 6.60 (168) 7.55 (192) 11.67 (296) 10.62 (270) 0.89 (23) 85 (38,6)
(1) ±0.14 inch (3.6 mm)
(2) ±0.03 inch (0.8 mm)
(3) ±0.20 inch (5.1 mm)
(4) Add 0.2 lb (0,1 kg) for display option.
