Emerson 8800C User Manual

2-25
Installation

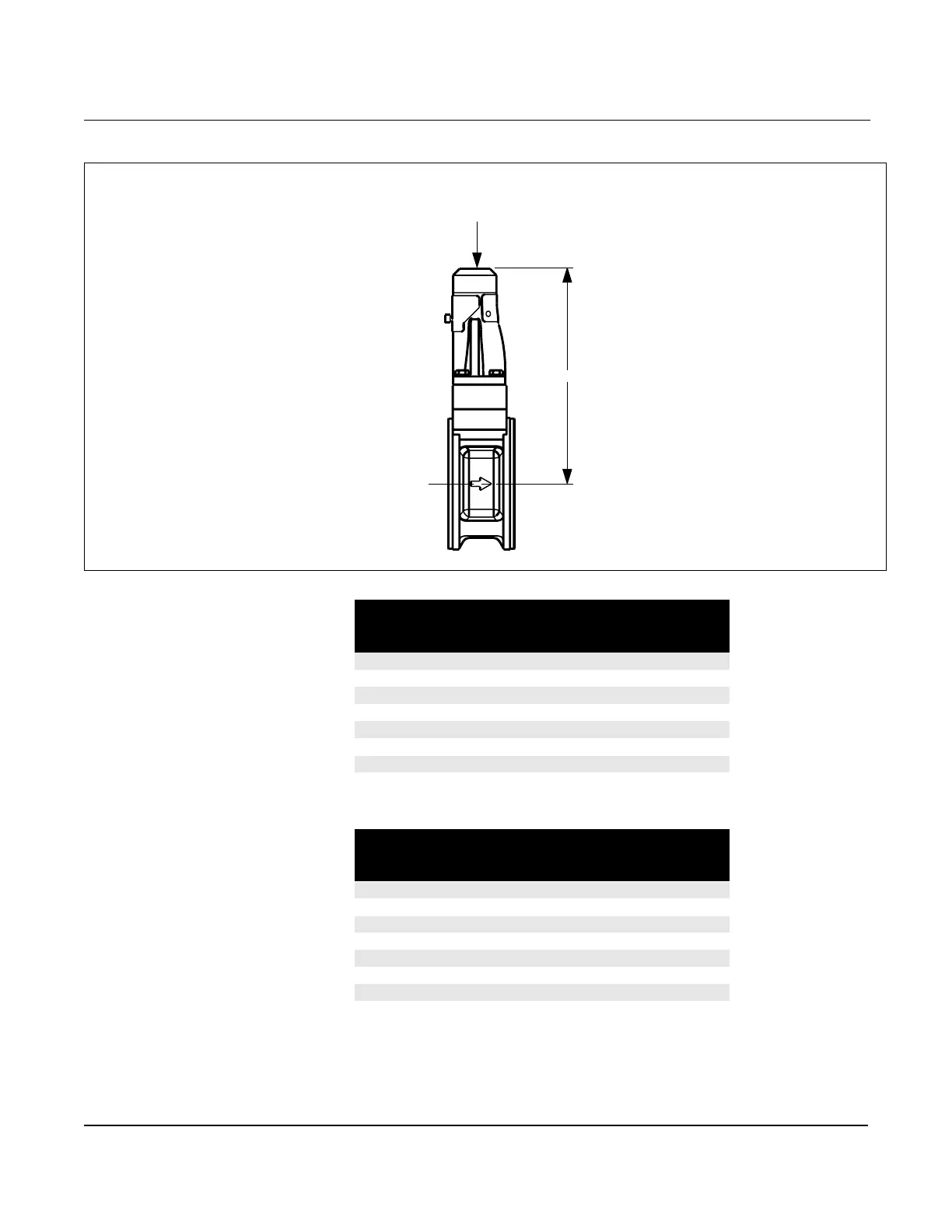

Figure 2-17. Dimensional Drawings for Remote Mount Wafer-Style Flowmeters
(
1
/2- through 8-in./15 through 200 mm Line Sizes)
NOTE
Dimensions are in inches (millimeters)
1
/2-14 NPT (For Remote
Cable Conduit)
E
8800-0002C04B
Table 2-15. Model 8800C - Stainless Steel Wafer
Nominal Size
Inch (mm)
E
Wafer Style
Inch (mm)
½ (15) 6.4 (163)
1 (25) 6.5 (165)
1½ (40) 6.9 (175)
2 (50) 7.6 (193)
3 (80) 8.3 (211)
4 (100) 9.2 (234)
6 (150) 9.5 (241)
8 (200) 10.4 (264)
Table 2-16. Model 8800A - Hastelloy© Wafer
Nominal Size
Inch (mm)
E
Wafer Style
Inch (mm)
½ (15) 6.3 (160)
1 (25) 6.5 (165)
1½ (40) 6.8 (173)
2 (50) 7.2 (183)
3 (80) 7.8 (198)
4 (100) 8.3 (211)
6 (150) 9.5 (241)
8 (200) 10.4 (264)
