Rosemount Model 8800C Vortex Flowmeter
2-26

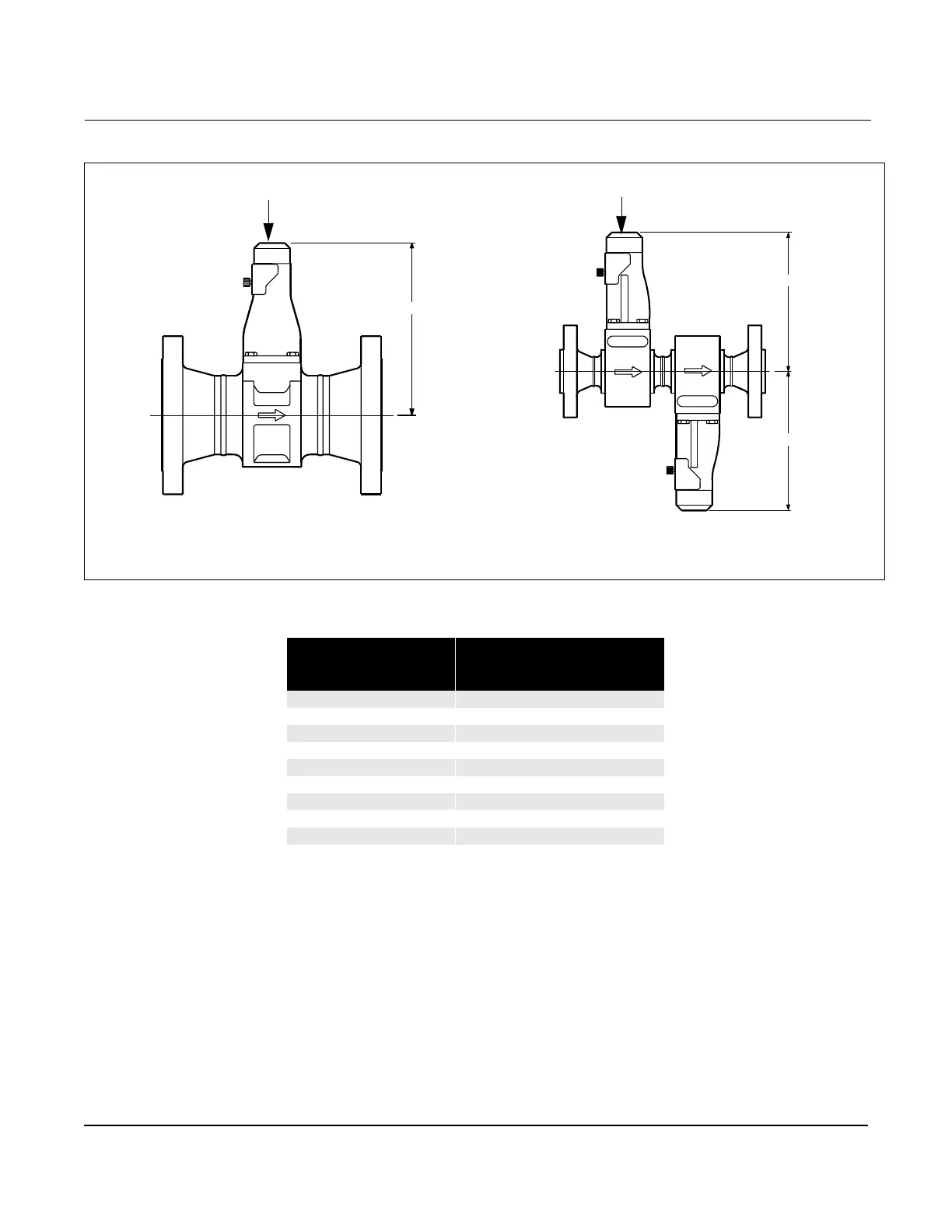

Figure 2-18. Dimensional Drawings for Flanged-and Dual-Sensor Flanged-Style Remote Mount Flowmeters
(
1
/2-through 12-inch/15 through 300 mm Line Sizes)
Table 2-17. Remote Mount, Flanged-and Dual Sensor Flowmeter Dimensions
Nominal Size
Inch (mm)
E
Flange Style
Inch (mm)
½ (15) 6.4 (162)
1 (25) 6.5 (165)
1½ (40) 6.8 (173)
2 (50) 7.2 (183)
3 (80) 7.8 (198)
4 (100) 8.3 (211)
6 (150) 9.5 (241)
8 (200) 10.4 (264)
10 (250) 11.5 (292)
12 (300) 12.4 (315)
1
/2-14 NPT (For Remote Cable
Conduit)
Flanged Flowmeter
NOTE
Dimensions are in inches (millimeters)
E
1
/
2-
14
NPT
(F
or
R
emote
C
a
bl
e
Conduit)
Dual-Sensor Style
Flowmeter
E
E
8800-002B02C, 0006C03A
