Rosemount Model 8800C Vortex Flowmeter
4-14

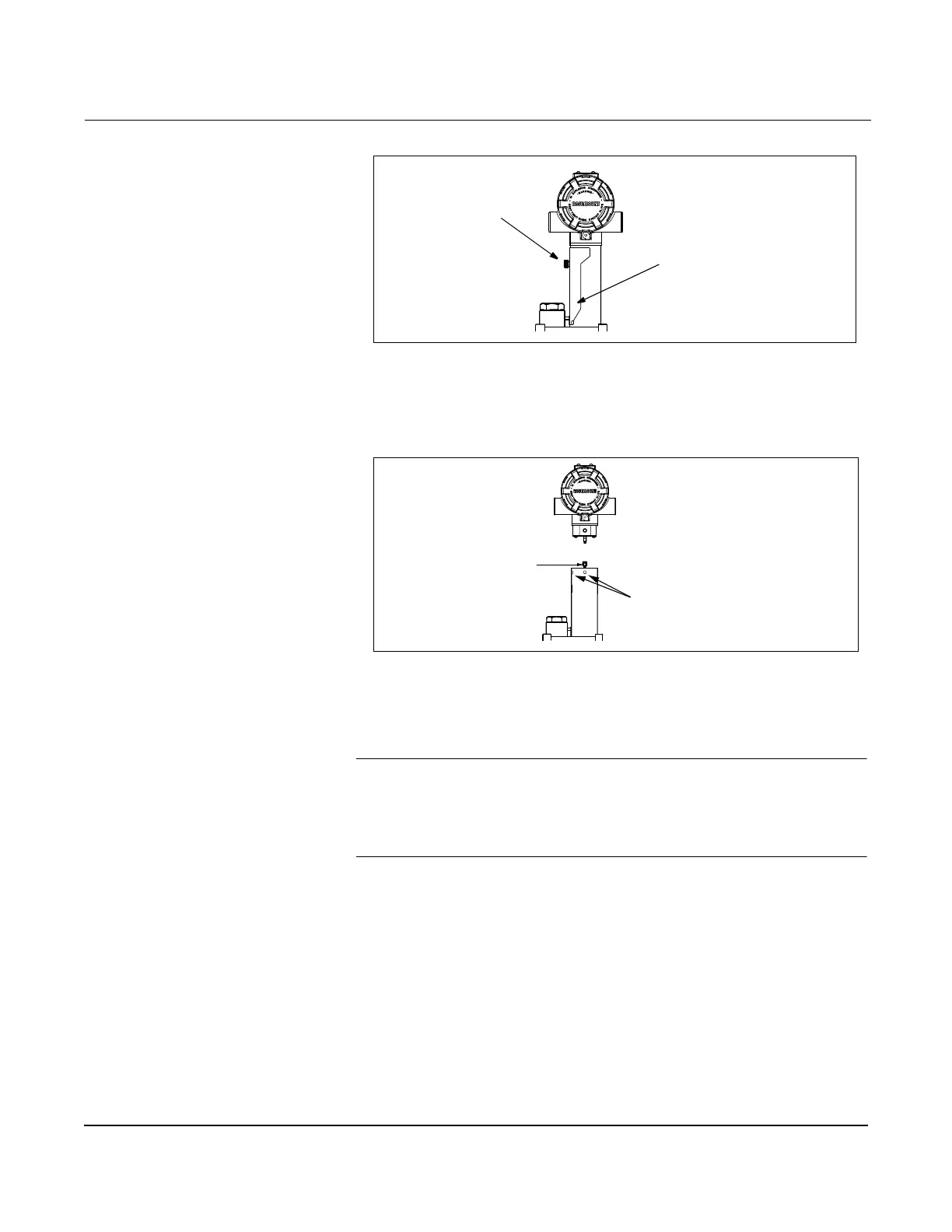

Figure 4-8. Electronics Housing Access Cover
5. Use a hex wrench to loosen the housing rotation screws (at the
base of the electronics housing) by turning screws clockwise
(inward) until they will clear the bracket.
Figure 4-9. Housing Rotation Screws
6. Slowly pull the electronics housing no more than 1.5
inches from the top of the support tube.
7. Loosen the sensor cable nut from the housing with a
5
/16-inch open
end wrench. See Figure 4-9.
NOTE
Lift the electronics housing until the sensor cable is disconnected. Do
not pull the housing more than 1.5 inches (40 mm) from the top of the
support tube. Damage to the sensor may occur if this sensor cable is
stressed.
Access
Cover
Access
Cover
Screw
8800-0002F04B
Housing Rotation
Screws
8800-0002E04B
1.5 inches maximum (40mm)
Sensor Cable Nut
