System overview
The Intelligent Wireless Zone Monitor (WZM) allows for 16 SmartCell wireless devices to be added to
conventional or addressable fire system.
The WZM is programmed for operation with Conventional or Addressable fire control panels in the ‘WZM
Settings’ menu. The default setting is ‘Conventional’. See page 35 for more information.

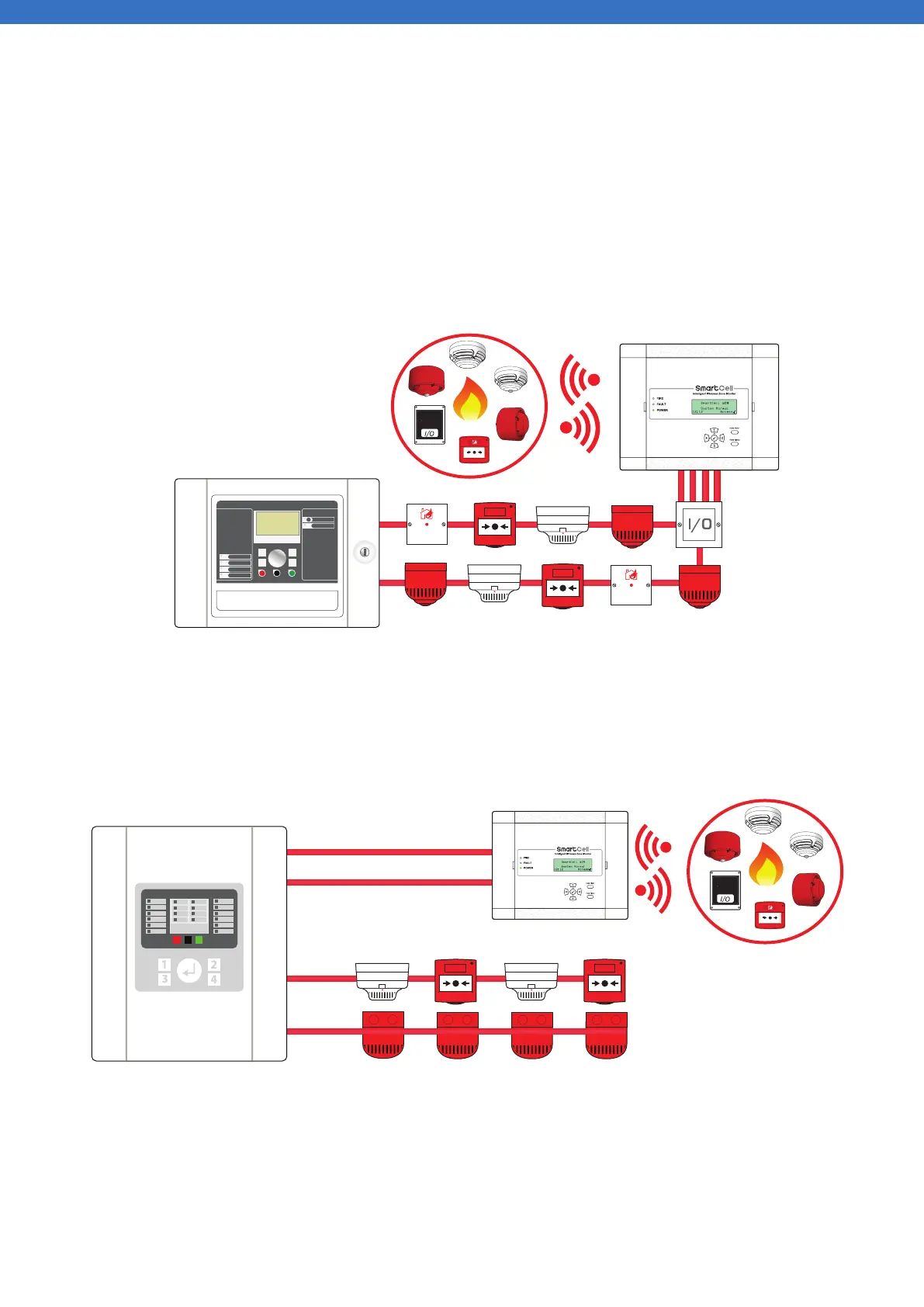

Typical addressable fire system connection
Typical conventional fire system connection
SmartCell WZM
Example addressable panel
STATUS
DUAL INPUT/OUTPUT DEVICE
LOG ON POINT
Up to 16x SmartCell
wireless devices
F1 F2
F3 F4
SmartCell WZM
Example Conventional panel
Up to 16x SmartCell
wireless devices
Zone 1
Sound 1
Zone 2
Sound 2
STATUS
DUAL INPUT/OUTPUT DEVICE
LOG ON POINT
