EMS SmartCell Programming Guide

©2020 EMS Ltd. All rights reserved. Page 28 of 80 MK067-0001-99 (Issue 1) 04/11/2020 AJM

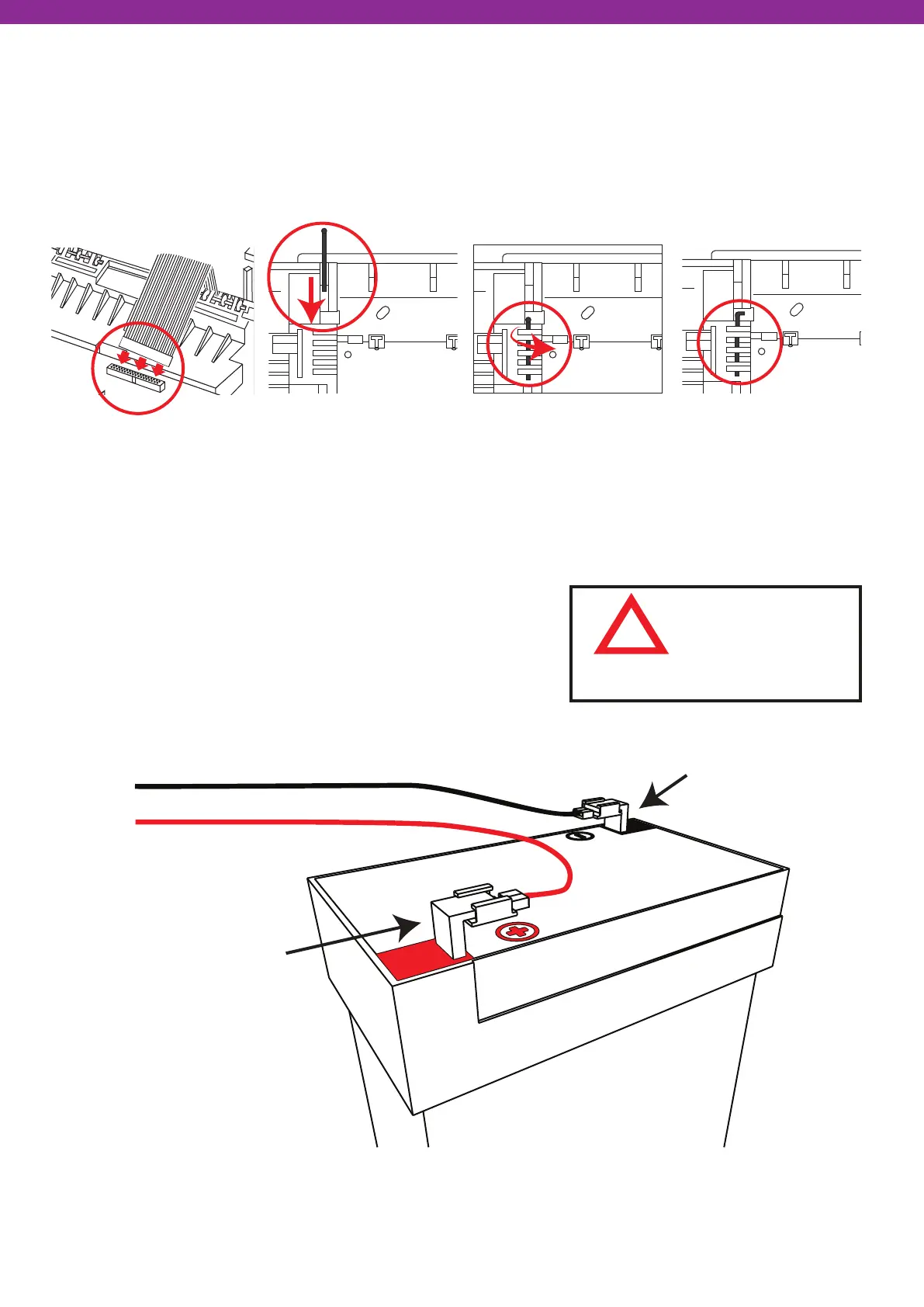

Re-fit door
Re-connect the ribbon cable and re-fit the door hinges.
Connect backup battery
230 VAC WZMs only.
+ (RED) PSU lead
- (BLACK) PSU lead
- (BLACK)
battery
connector
+ (RED) battery
connector
UNIVERSAL PSU EMS-PSU-001
For additional information refer to
Installation Instructions
0905
UNIVERSAL PSU EMS-PSU-001
INPUT: 220-240VAC, 50Hz
OUTPUT: 5.0-8.5VDC, 1.0A MAX
For additional information refer to
Installation Instructions
STATUS
FAULT
MAINS / CHARGER FAIL
BATTERY LOW
BATTERY FAIL
START
SLIDE TO
REMOVE
INPUT
L N E
14
0359-CPR-XXXX
0905
UNIVERSAL PSU EMS-PSU-001
INPUT: 220-240VAC, 50Hz
OUTPUT: 5.0-8.5VDC, 1.0A MAX
For additional information refer to
Installation Instructions
STATUS
FAULT
MAINS / CHARGER FAIL
BATTERY LOW
BATTERY FAIL
START
SLIDE TO
REMOVE
INPUT
L N E
14
0359-CPR-XXXX
0905
1. 3.2. 4.
!
Warning
Observe battery polarity!
