4.3 Charging the P100 Battery
Battery Description: 8 Cell Lithium Ion, 4400mAh, 14.8V, battery pack.
Charge Time: Approximately 2.5 Hours to a full charge
Run Time (Approximate): @ 28.3 LPM, 12 Hours / @ 100 LPM, 6 Hours
Battery Life Indicator: 0-100%
To Charge the P100,

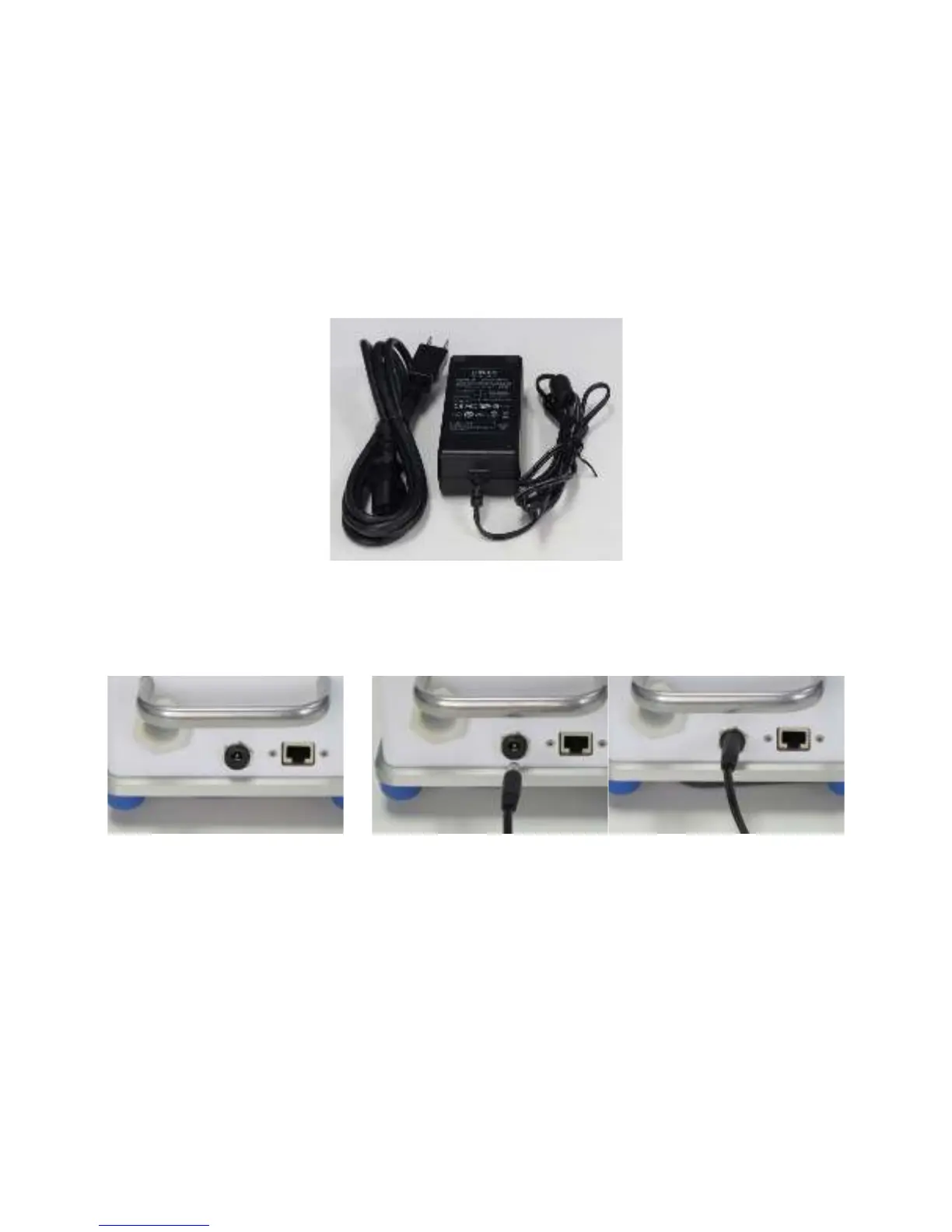

1) Attach the required adapter plug to the power supply/charger shown below.
2) Plug the charger into an accessible 100-240 VAC, 50/60 Hz wall outlet
3) Attach the charger to the P100 as shown, as follows:
P100 DC Power Input Port Attach DC Power Input Plug
4) If the P100 is powered on the Green LED in the upper left corner of the LCD window frame will blink when
the unit is charging. You can check the charged status of the unit, by viewing the battery life percentage
indicator during the charge cycle.
5) If completely discharged, the unit will take approximately 2.5 hours to fully charge. Check the battery life
indicator to determine the charged status of the unit.
