LINE 4 SELECT USER: Enter an existing USER ID and PASSWORD using pop up key pads. This
will assign the entered USER ID to all samples taken with the unit at that time.
Select the RETURN key once you have entered your USER account information.
NOTE: To CLEAR the currently shown USER ID, while on the SELECT USER field,
highlighting the current USER, you can use the Left or Right arrow to “Select” another
user, and then exit out of the USER and PASSWORD screens, or you can power off the
P100.

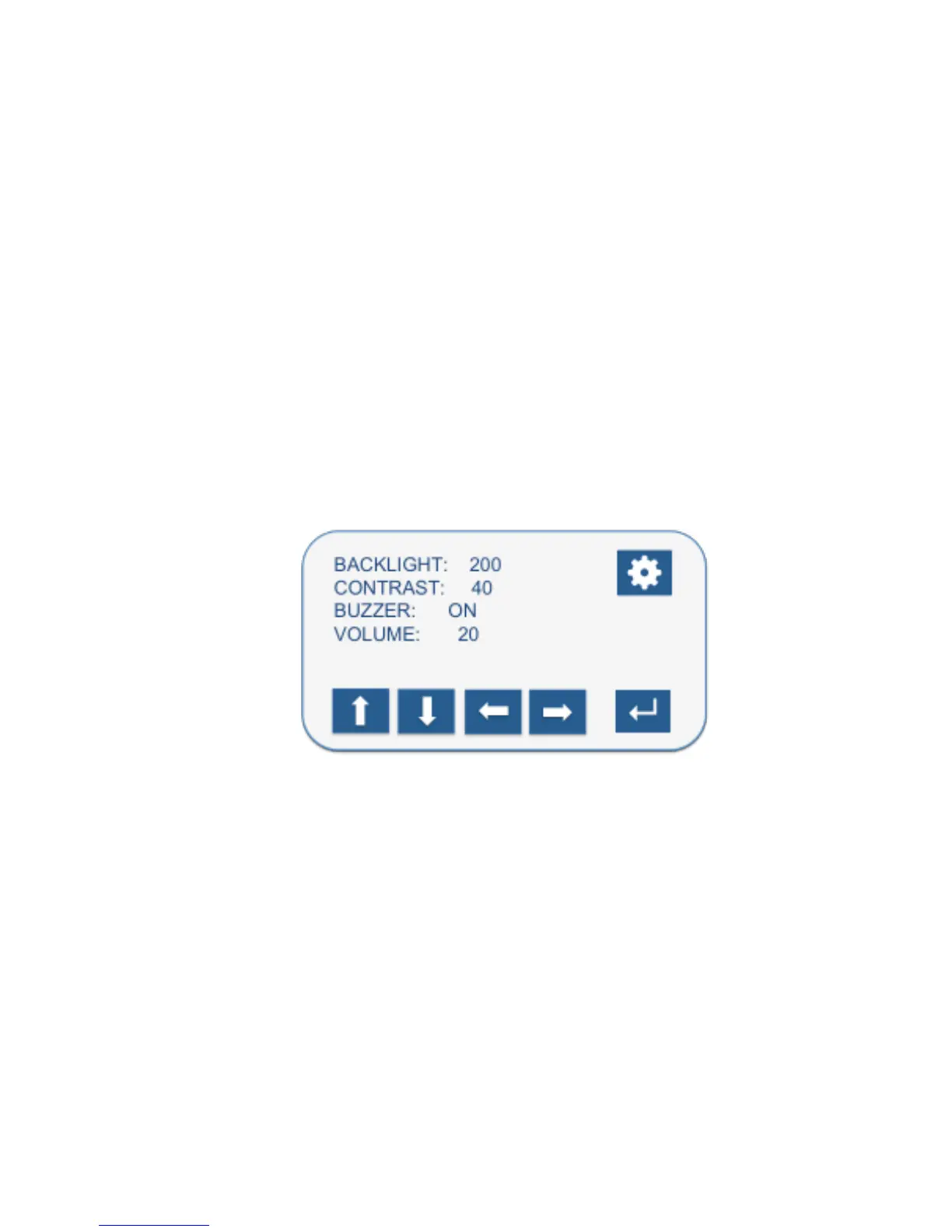

LINE 5 ADJUST SCR/VOL: Brings up the following screen, which allows adjustment BACKLIGHT
intensity and CONTRAST (Common Values Shown), as well as unit BUZZER/ALARM.
Line 1: BACKLIGHT: Adjust brightness of screen up or down.
Line 2: CONTRAST: Adjust character contrast to general screen brightness.
Line 3: BUZZER: ON/OFF selection for Keypad “Beeps”, Flow Alarm, End of Run Alarm
Line 4: VOLUME: Adjust volume of Alarm, Buzzer, Beeps (scaled 1-20).
