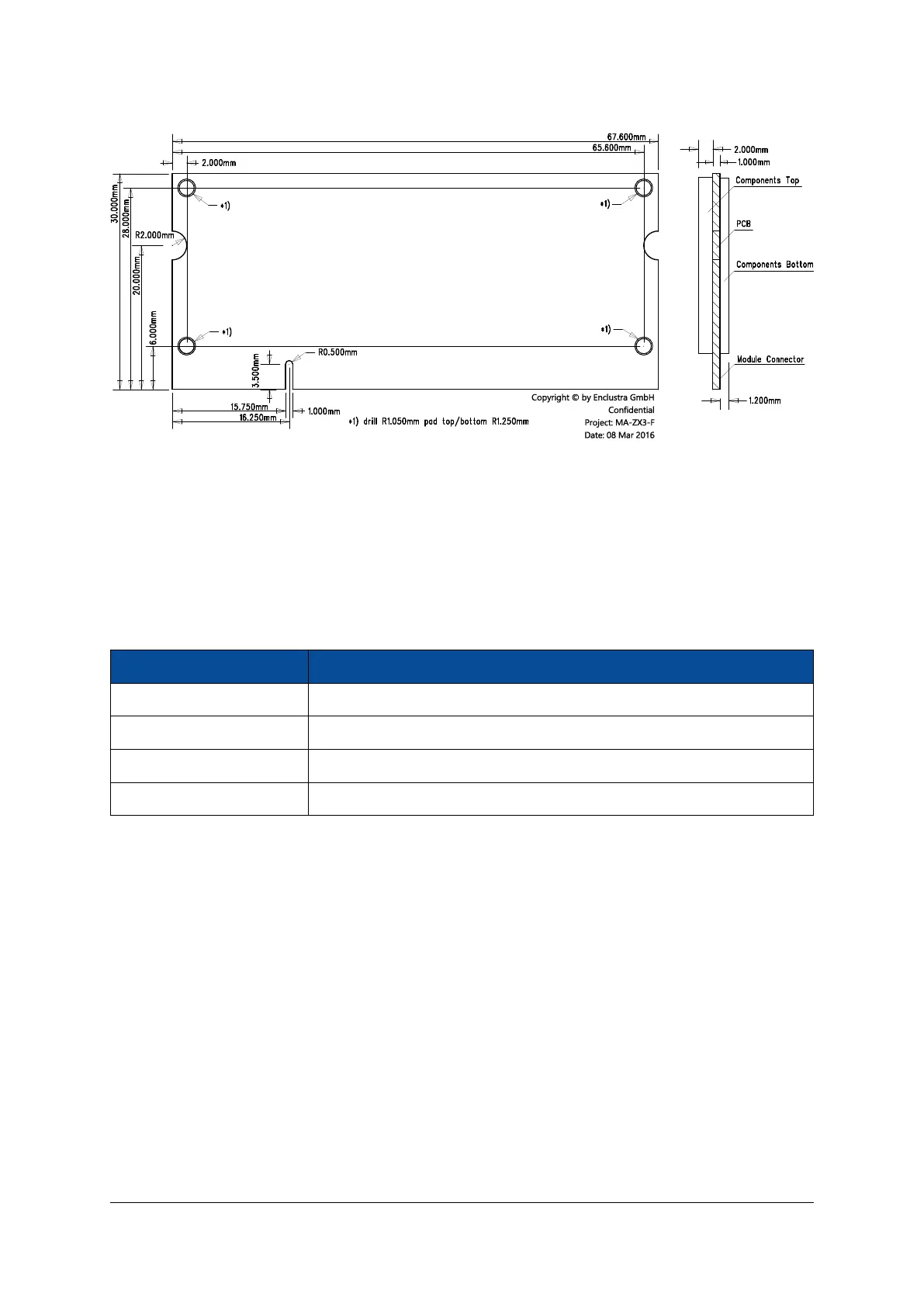

Figure 8: Module Footprint - Top View
The footprint of the module connector is available for different PCB design tools (Altium, Eagle, Orcad, PADS)
[7].
2.7 Mechanical Data
Table 3 describes the mechanical characteristics of the Mars ZX3 SoC module. A 3D model (PDF) and a STEP
3D model are available [8], [9].
Symbol Value
Size 67.6 × 30 mm
Component height top 2.0 mm
Component height bottom 1.2 mm
Weight 9 g
Table 3: Mechanical Data
2.8 Module Connector
The Mars ZX3 SoC module fits into a 200-pin DDR2 SO-DIMM (1.8 V) socket. Up to four M2 screws may be
used to mechanically fasten the module to the base board. Do not use excessive force to tighten the screws,
as this could damage the module.
The pinout of the module connector is found in the Mars Master Pinout Excel Sheet [11]. The connector to
be mounted on the base board is available in different heights. Some examples are presented in Table 4.
Please refer to the connector datasheet for more information.
