Product Code MPSoC DDR4 DDR4 GTH Temperature
SDRAM ECC MGTs Range
ME-XU1-6CG-1E-D11E-G1 XCZU6CG-1FFVC900E 2 GB 3 16 0 to +85
◦
C
ME-XU1-6CG-1E-D11E XCZU6CG-1FFVC900E 2 GB 3 12 0 to +85
◦
C
ME-XU1-6EG-1I-D11E-G1 XCZU6EG-1FFVC900I 2 GB 3 16 -40 to +85
◦
C
ME-XU1-6EG-1I-D11E XCZU6EG-1FFVC900I 2 GB 3 12 -40 to +85
◦
C
ME-XU1-9EG-1E-D11E-G1 XCZU9EG-1FFVC900E 2 GB 3 16 0 to +85
◦
C
ME-XU1-9EG-2I-D12E XCZU9EG-2FFVC900I 4 GB 3 12 -40 to +85
◦
C
ME-XU1-9EG-2I-D12E-G1 XCZU9EG-2FFVC900I 4 GB 3 16 -40 to +85
◦
C
ME-XU1-9EG-3E-D12E XCZU9EG-3FFVC900E 4 GB 3 12 0 to +85
◦
C
ME-XU1-15EG-1E-D12E-G1 XCZU15EG-1FFVC900E 4 GB 3 16 0 to +85
◦
C
ME-XU1-15EG-2I-D12E XCZU15EG-2FFVC900I 4 GB 3 12 -40 to +85
◦
C
ME-XU1-15EG-2I-D12E-G1 XCZU15EG-2FFVC900I 4 GB 3 16 -40 to +85
◦
C
Table 1: Standard Module Configurations
Starting with revision 3 modules, 4 additional GTH transceivers and 2 differential clock pairs may be routed
to the module connector, by using the “G1” assembly variants. Please refer to Section 2.9.2 for details on
the assembly variants and MGT connectivity.

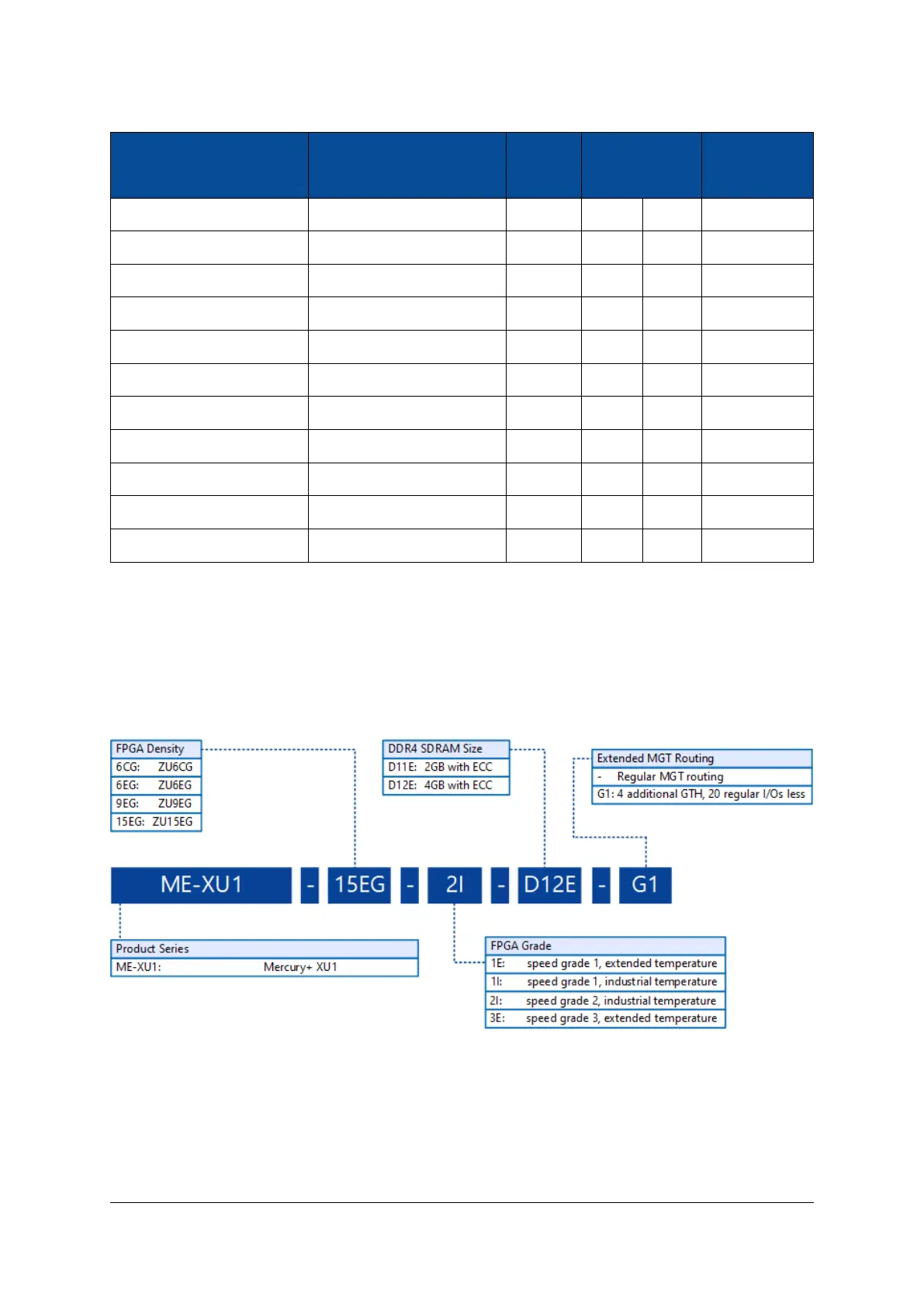

The product code indicates the module type and main features. Figure 3 describes the fields within the
product code.
Figure 3: Product Code Fields
Please note that for the first revision modules or early access modules, the product code may not respect
entirely this naming convention. Please contact Enclustra for details on this aspect.
D-0000-428-001 12 / 66 Version 13, 15.08.2019
