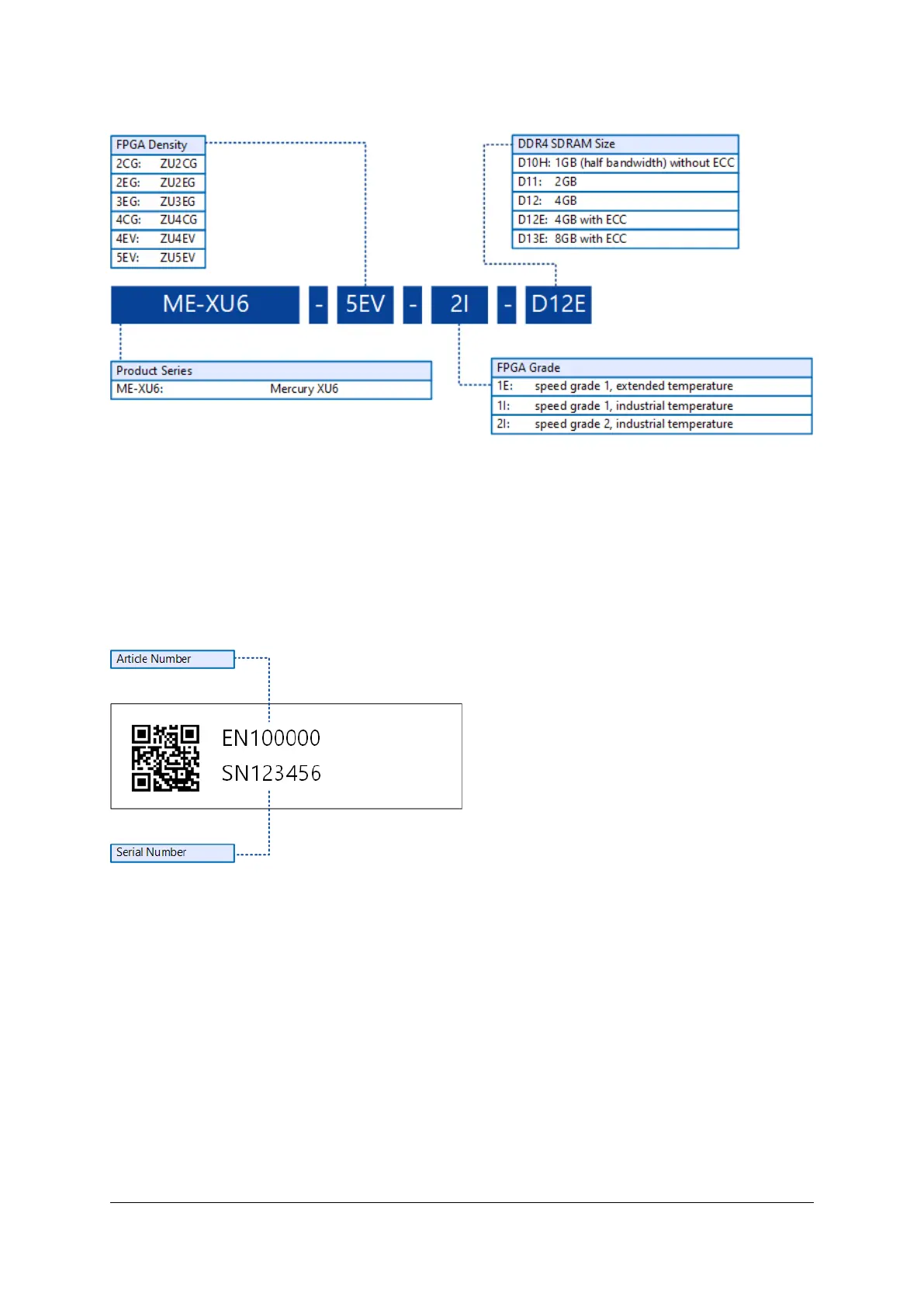

Figure 2: Product Model Fields
Please note that for the first revision modules or early access modules, the product model may not respect
entirely this naming convention. Please contact Enclustra for details on this aspect.
2.3 EN-Numbers and Part Names
Every module is uniquely labeled, showing the EN-number and serial number. An example is presented in
Figure 3.
Figure 3: Module Label
The correspondence between EN-number and part name is shown in Table 2. The part name represents the
product model, followed by the revision; the R suffix and number represent the revision number.
The revision changes and product known issues are described in the Mercury+ XU6 SoC Module Known
Issues and Changes document [6].
D-0000-464-001 13 / 58 Version 02, 21.07.2021
