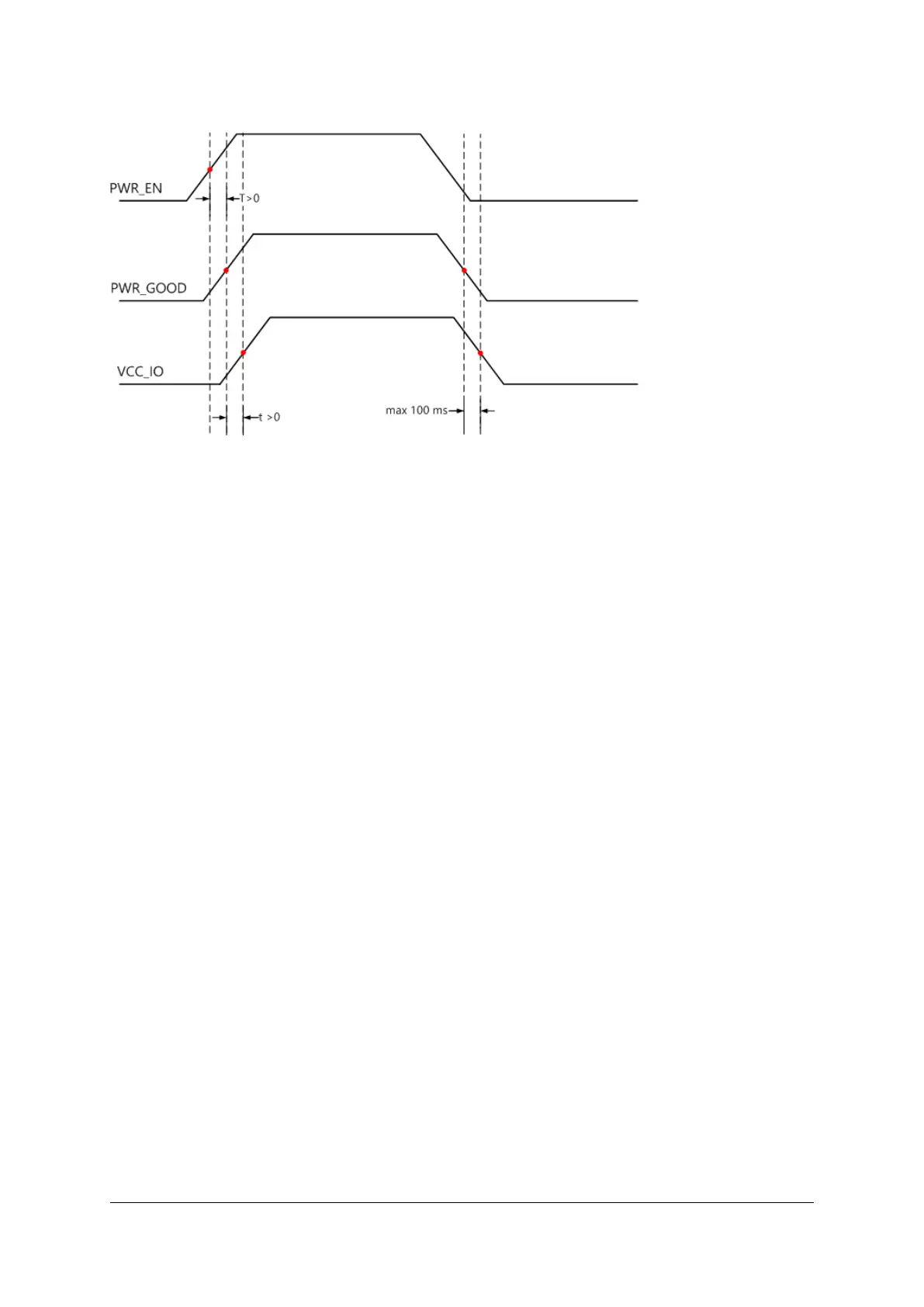

Figure 10: Power-Up Sequence - VCC_IO in Relation with PWR_GOOD and PWR_EN Signals
2.9.6 Signal Terminations
Differential Inputs
Internal differential termination is not supported for the HD pins (banks 24, 25, 26, 44 on ZU2/ZU3 devices,
and banks 43, 44, 45, 46 on ZU4/ZU5 devices). Differential input pairs on the module connector may be
terminated by external termination resistors on the base board (close to the module pins).
Single-Ended Outputs
There are no series termination resistors on the Mercury+ XU6 SoC module for single-ended outputs. If
required, series termination resistors may be equipped on the base board (close to the module pins).
2.9.7 Multiplexed I/O (MIO) Pins
Details on the MIO/EMIO terminology are available in the Zynq UltraScale+ MPSoC Technical Reference
Manual [18].
Some of the MIO pins on the Mercury+ XU6 SoC module are connected to on-board peripherals, while
others are available as GPIOs; the suggested functions below are for reference only - always verify your MIO
pinout with the Xilinx device handbook.
Table 10 gives an overview over the MIO pin connections on the Mercury+ XU6 SoC module. Only the pins
marked with “user functionality” are available on the module connector.
D-0000-464-001 25 / 58 Version 02, 21.07.2021
