Warning!
All configuration signals except for BOOT_MODE must be high impedance as soon as the device is
released from reset. Violating this rule may damage the equipped MPSoC device, as well as other
devices on the Mercury+ XU6 SoC module.
3.2 Pull-Up During Configuration
The Pull-Up During Configuration signal (PUDC) is pulled to GND on the module; as PUDC is an active-low
signal, all FPGA I/Os will have the internal pull-up resistors enabled during device configuration.
If the application requires the pull-up during configuration to be disabled, this can be achieved by removing
R207; component and by mounting R205 - in this configuration the PUDC pin is connected to 1.8 V.

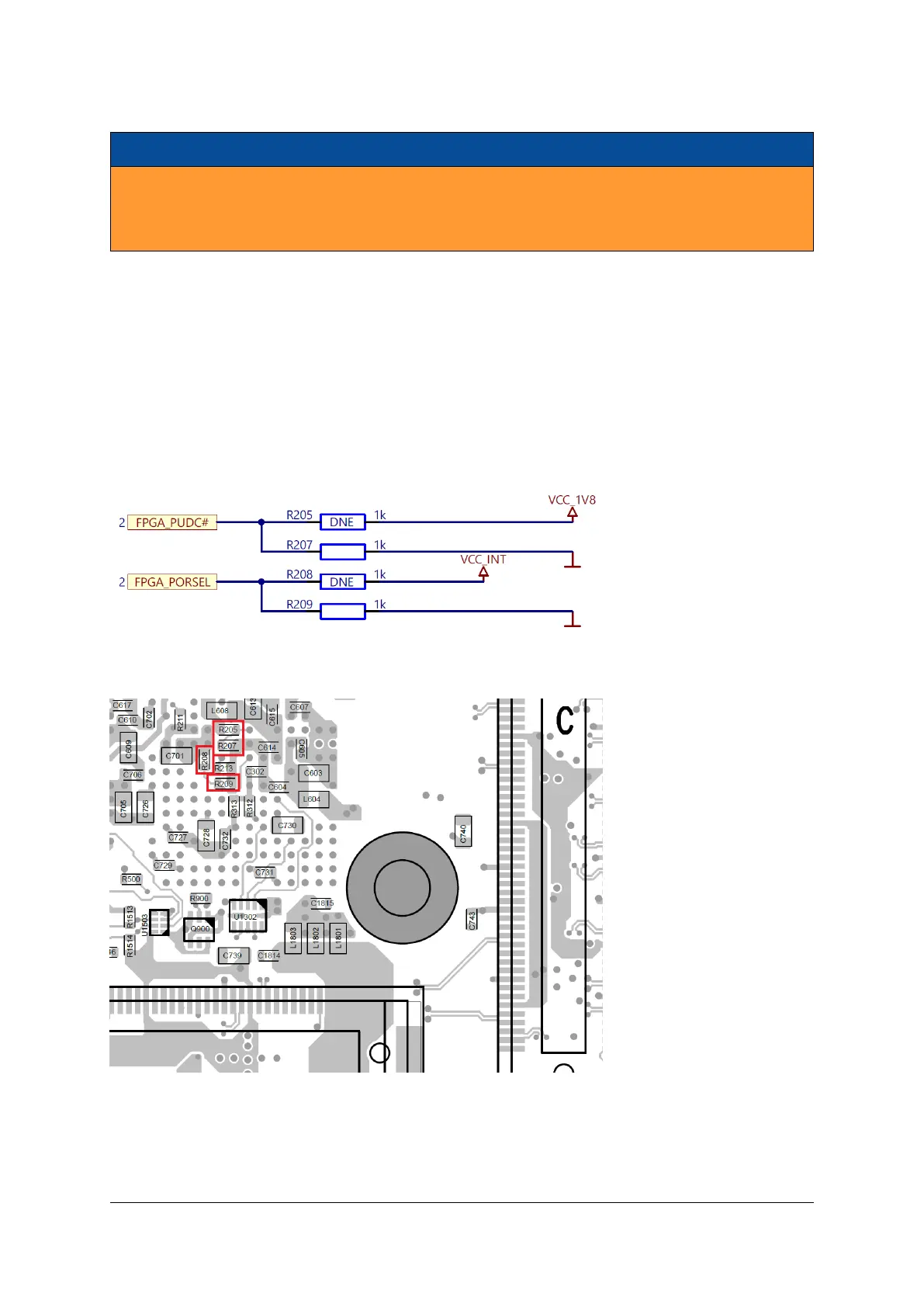

Figure 12 illustrates the configuration of the I/O signals during power-up. Figure 13 indicates the location of
the pull-up/pull-down resistors on the module PCB - middle right part on the bottom view drawing.
Figure 12: Pull-Up During Configuration (PUDC) and Power-on Reset Delay Override (PORSEL)
Figure 13: Pull-Up During Configuration (PUDC) and Power-on Reset Delay Override (PORSEL) Resistors - Assembly
Drawing Bottom View (middle right part)
For details on the PUDC signal please refer to the Zynq UltraScale+ MPSoC Technical Reference Manual
[18].
D-0000-464-001 44 / 58 Version 02, 21.07.2021
