Endress+Hauser Proline Promass E 100 - Page 39

Proline Promass E 100 Modbus RS485 Operation options
Endress+Hauser 39
X X X X X X XX X
4
2
1
3
kg/h
1120.50
F
A0037831

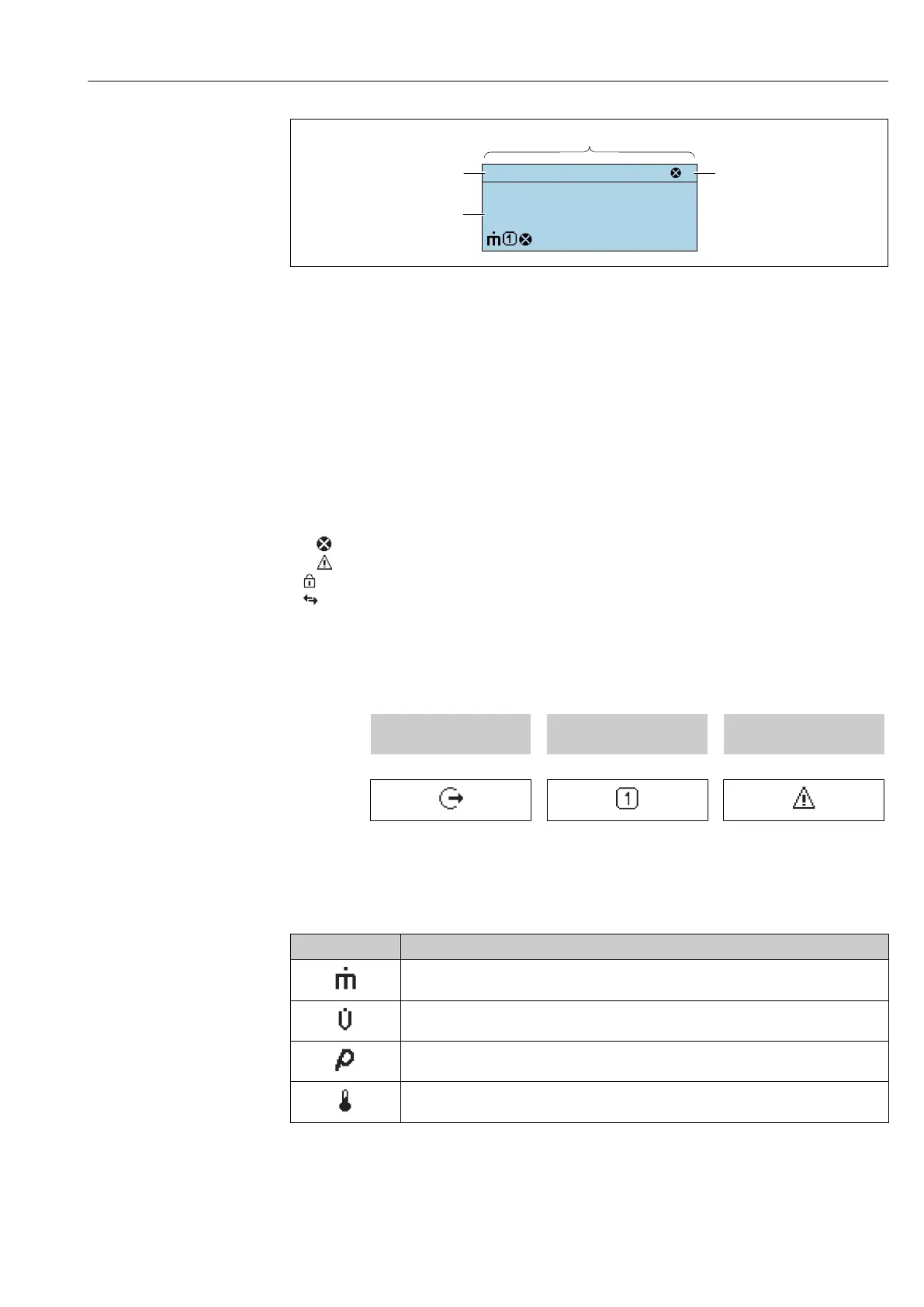

1 Operational display
2 Device tag→  57
3 Status area
4 Display area for measured values (4-line)
Status area
The following symbols appear in the status area of the operational display at the top right:
• Status signals
• F: Failure
• C: Function check
• S: Out of specification
• M: Maintenance required
• Diagnostic behavior
• : Alarm
• : Warning
• : Locking (the device is locked via the hardware →  61)
• : Communication (communication via remote operation is active)
Display area
In the display area, each measured value is prefaced by certain symbol types for further
description:
Measured variable Measurement channel
number
Diagnostic behavior
↓ ↓ ↓
Example
Appears only if a diagnostics
event is present for this
measured variable.
Measured variables
Symbol Meaning
Mass flow
• Volume flow
• Corrected volume flow
• Density
• Reference density
Temperature
