30
Manual: Transport, Installation and Start-Up: DC CompactCharger ECC 320 ©EnerCharge GmbH
ELECTRICAL INSTALLATION ECC 320
7.7.3 Connection of Main AC Supply Line (400 V)
Observe the following points when connecting the AC main supply
line (400 V) for the ECC 320:
Connection AC Supply Line Tightening Torque (Nm)
AC main supply line: L1
max. 240 mm
2
1
28 Nm
AC main supply line: L2
max. 240 mm
2
2
28 Nm
AC main supply line: L3
max. 240 mm
2
3
28 Nm
AC main supply line: PE-N
max. 240 mm
2
4
32 Nm
AC main supply line: N*
max. 240 mm
2
5
32 Nm

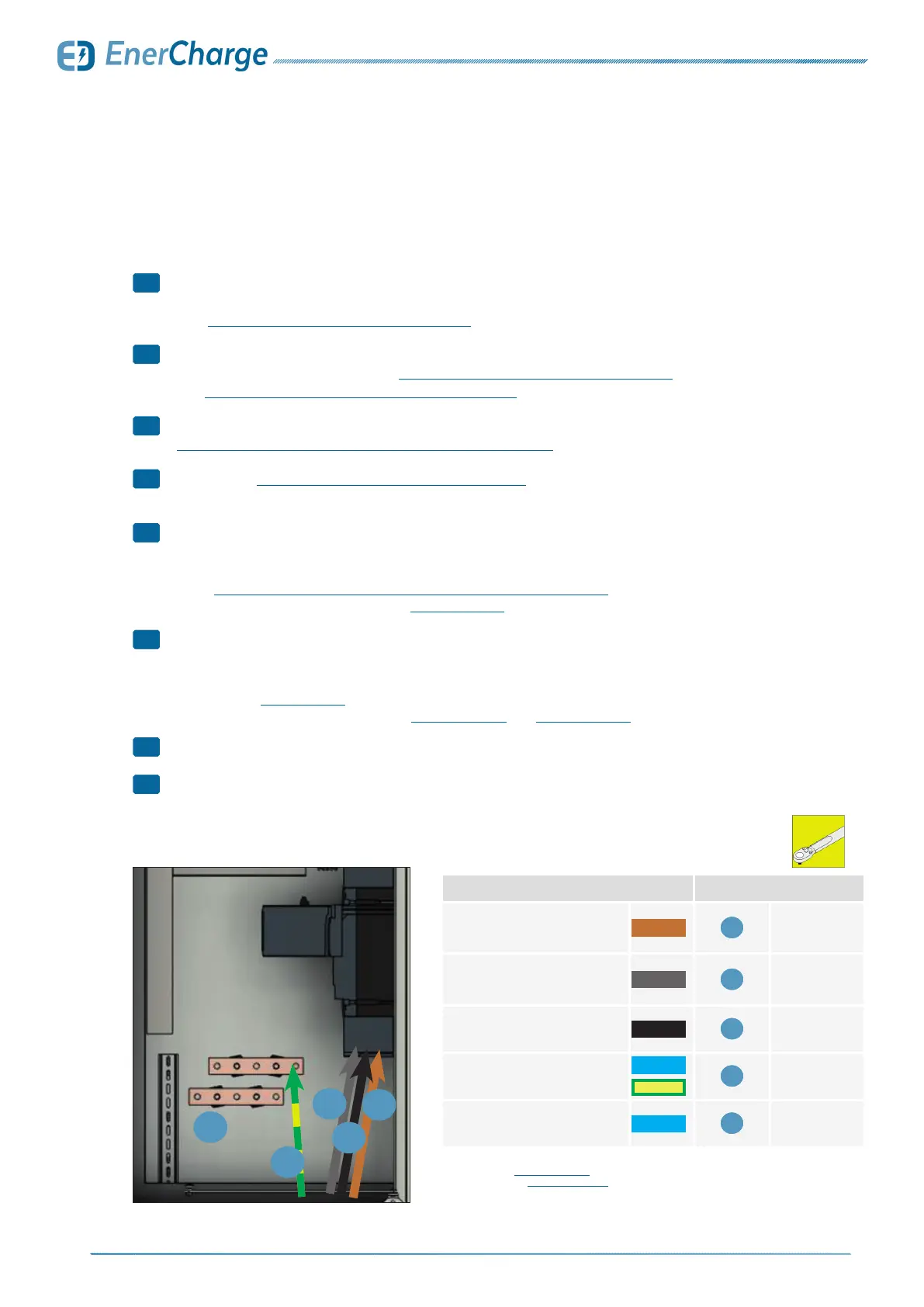

Fig. 32: Connection of main AC supply (400 V)
Table 4: AC main supply line (400 V)
> The ECC 320 may only be installed, started up and serviced by quali-
ed electricians in accordance with the applicable national regulations.
See: „3.2 Qualifikation des Personals“ auf Seite 7.
> Before connecting the ECC 320, ensure that no voltage is present or take
suitable protective measures (see „7.1 De-Energizing the Supply Line“ on page 22
and „7.5 Disconnect the ECC 320 from the Power Supply“).
> For the correct dimensioning of the AC supply line, see:
„7.4.1 Cable Cross-Sections of Main AC Supply Line“ on page 23.
> See section „7.6.2 Connection Data for Cable Entry Plate“ for the available outer
cable diameters.
> Connect L1/L2/L3 according to the terminal labeling.
• Tighten screws with tightening torque = 28 Nm.
• Additionally observe the manual of the manufacturer Siemens:
see „7.4.2 Installation Manual for Fuse Switch Disconnector“ on page 23.
• For maximum cable cross section see 7.7.2 on page 28.
> The dimensioning of the protective conductor of the AC supply line (PEN)
is based on ÖVE/ÖNORM E8001-1:2010, Table 20-2. When using a copper
strip, a minimum cross-section of 50 mm2 is prescribed.
• See section 7.3 on page 22 for 4- or 5-pole connection.
• Observe the specifications in sections 7.4.4 on page 25 and 7.4.5 on page 25.
> Check that L1/L2/L3/PE-N are tightened to the correct torque.
> AC main supply line (400 V) successfully connected.
1
2
3
4
5
6
7
>
2
3
4
1
5
*Only for 5-pole connection (TN-S-
system see 7.3 on page 23 and
7.7.1 on page 28)
