EnerCharge ECC 320 - Page 40

40
Manual: Transport, Installation and Start-Up: DC CompactCharger ECC 320 ©EnerCharge GmbH
INITIALIZATION
8.5.1 Load Management with Measuring Module
A load management module from the manufacturer Phoenix-Contact type EEM-MA370-R is
optionally available for the ECC 320. The required measuring module (included in the scope
of delivery, if ordered) is installed at the feeder at the metering point and then congured.
The measuring module permanently measures the current
power consumption and compares it with the maximum
connected load.
With optional load management, the maximum available
power can be called up at the charging station at any time.
Installation is carried out by a qualied electrician in accor-
dance with the manufacturer's manual (see
G INFORMATION
).
Installation and commissioning of the load management module is
carried out according to the manual of the manufacturer Phoenix
Contact, model: EEM-MA370-R. The manual can be found at:
http://www.phoenixcontact.com
The Modbus TCP cable must be a CAT6
cable with an RJ45 connector.
G INFORMATION

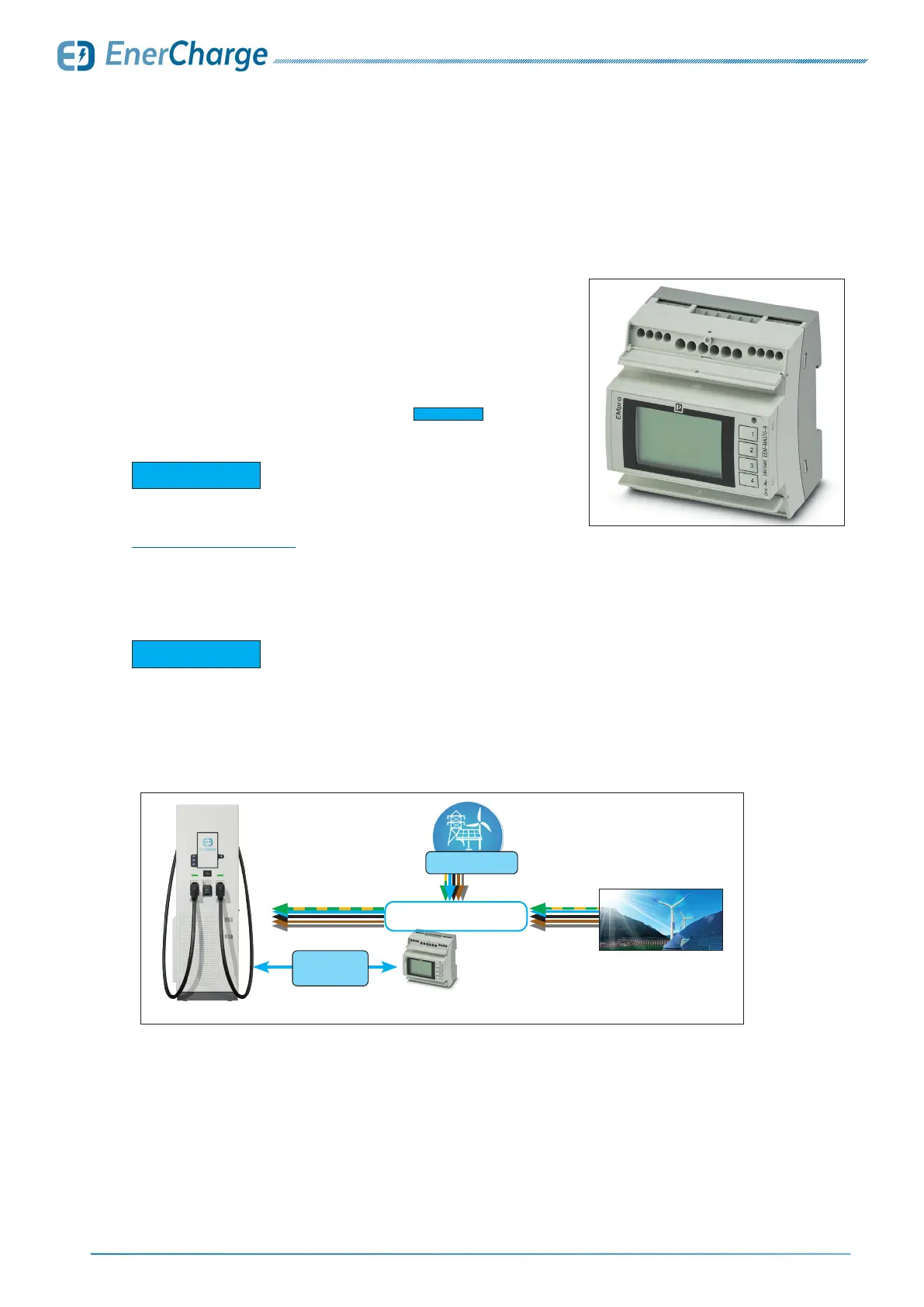

Fig. 49: Load management module-
Phoenix-Contact EEM-MA370-R
Fig. 50: Overview of load management structure
max. 180 kW
80 kW
100 kW
Modbus TCP
CAT6 cable/
RJ45 plug
Load Management
energy supplier
When ordering this option, the measuring module is included in the
scope of delivery. The current transformers are not part of the scope
of delivery, as these must be selected on site according to the
transformer ratio. EnerCharge has no inuence on this.
G INFORMATION
