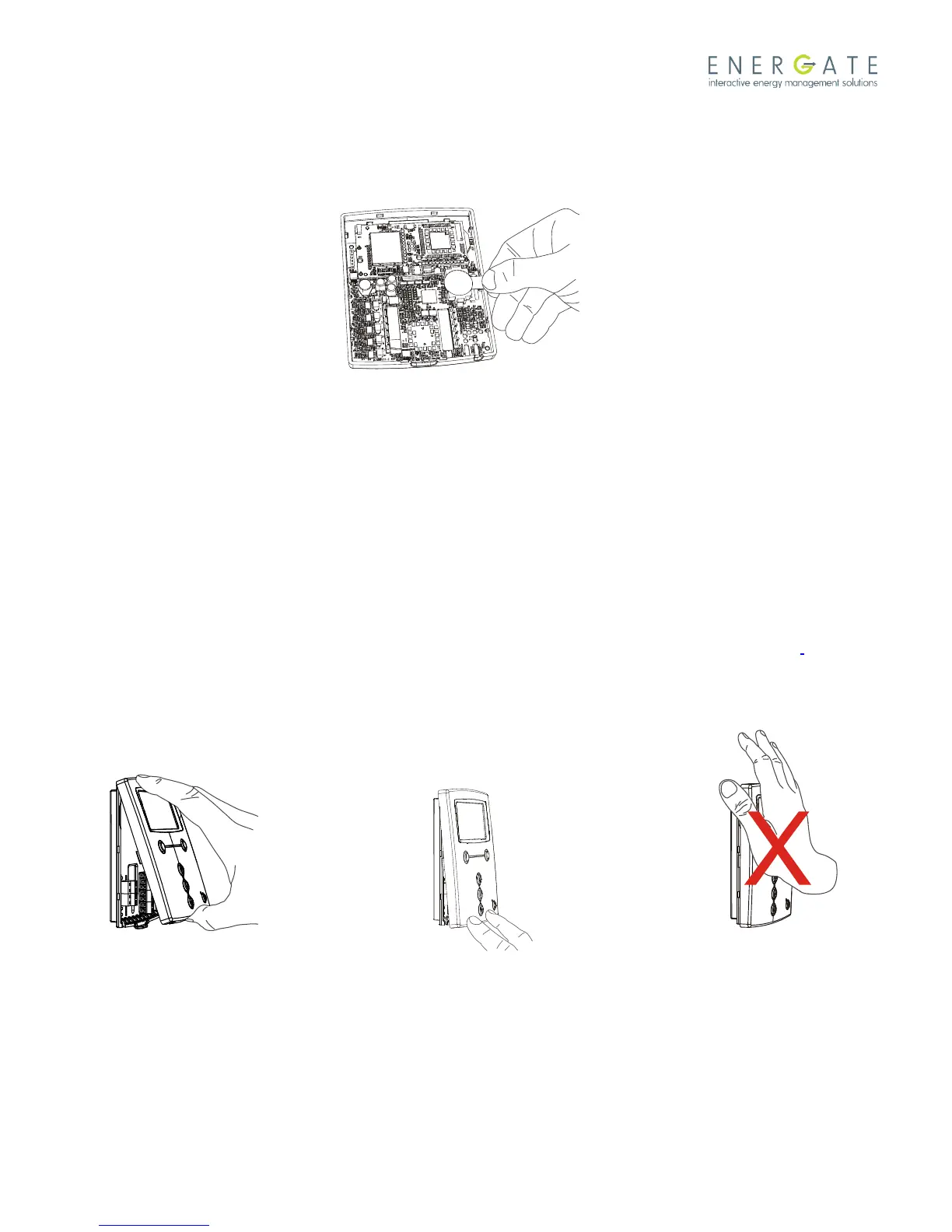

3 New Installation
3.1 Removing battery tab on installation
Remove back-plate from thermostat housing.
Grab battery-tab and pull away from the battery.
Do not touch ESD sensitive components unless
properly grounded
(Pioneer thermostat is shown)
3.2 Mounting the Thermostat
Install the thermostat at 5 feet (1.5m) above the floor in an area with good air circulation and an average temperature.
Avoid locations with drafts, dead spots behind doors, hot or cold air ducts, sunlight or radiant heat from appliances,
concealed pipes or chimneys, and unconditioned areas. For example, don’t install the thermostat on an outside wall.
The two wallplate anchors should be spaced 3.5 inches (90 mm) apart in a vertical direction. Pull wires through the
backplate and connect them to the appropriate terminals as described in Error! Reference source not found. Error!
Reference source not found..
3.2.1 Pioneer thermostat installation
